116EXSTR-EK | Edwards Signaling Explosion-Proof Red Xenon Strobe 12–48 VDC NEMA 4X
- Regular price
- $3,057.00
- Sale price
- $3,057.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 116EXSTR-EK
Description

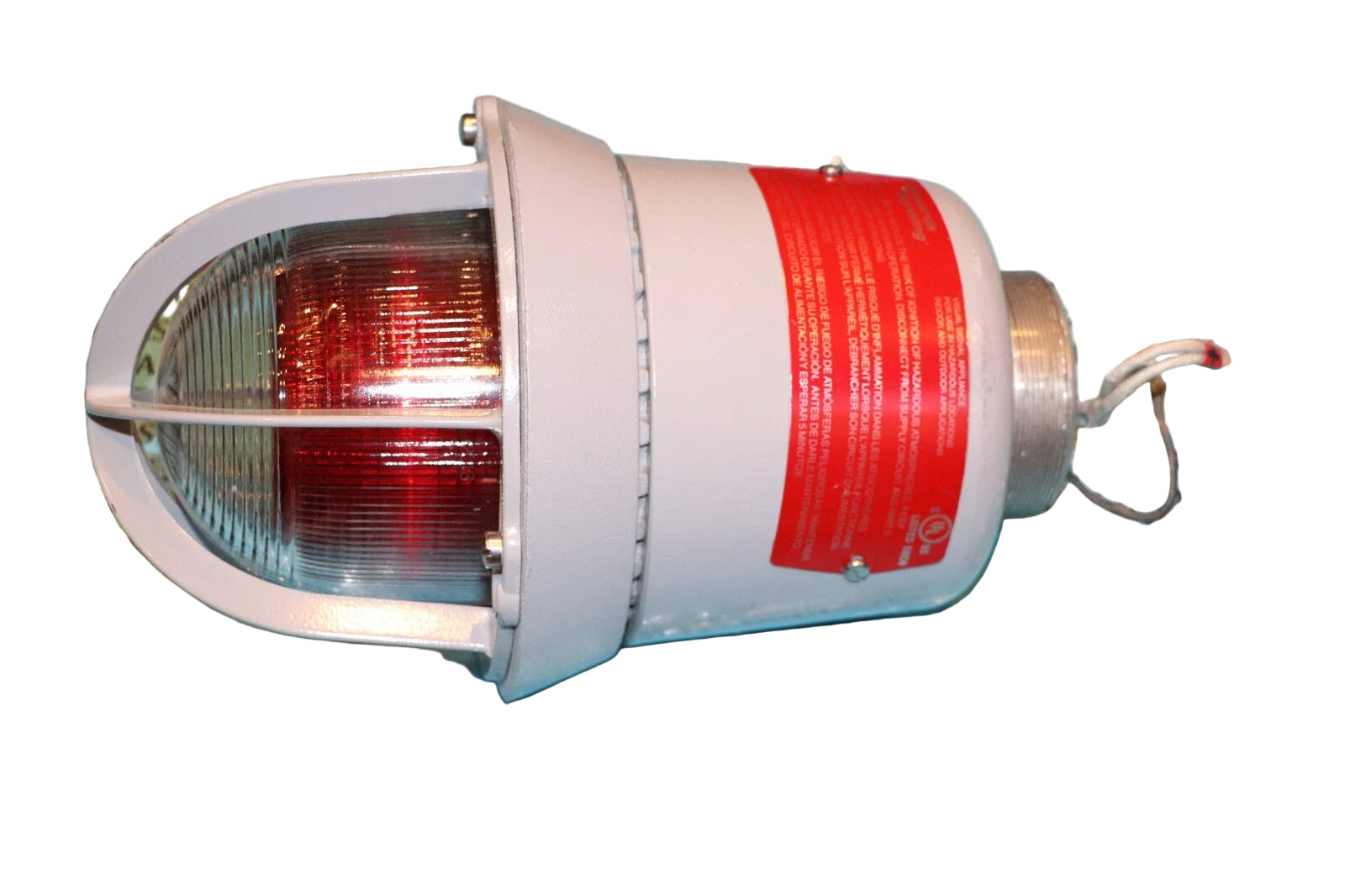

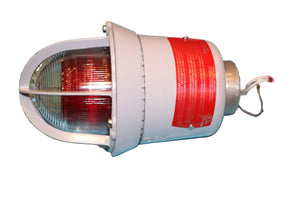

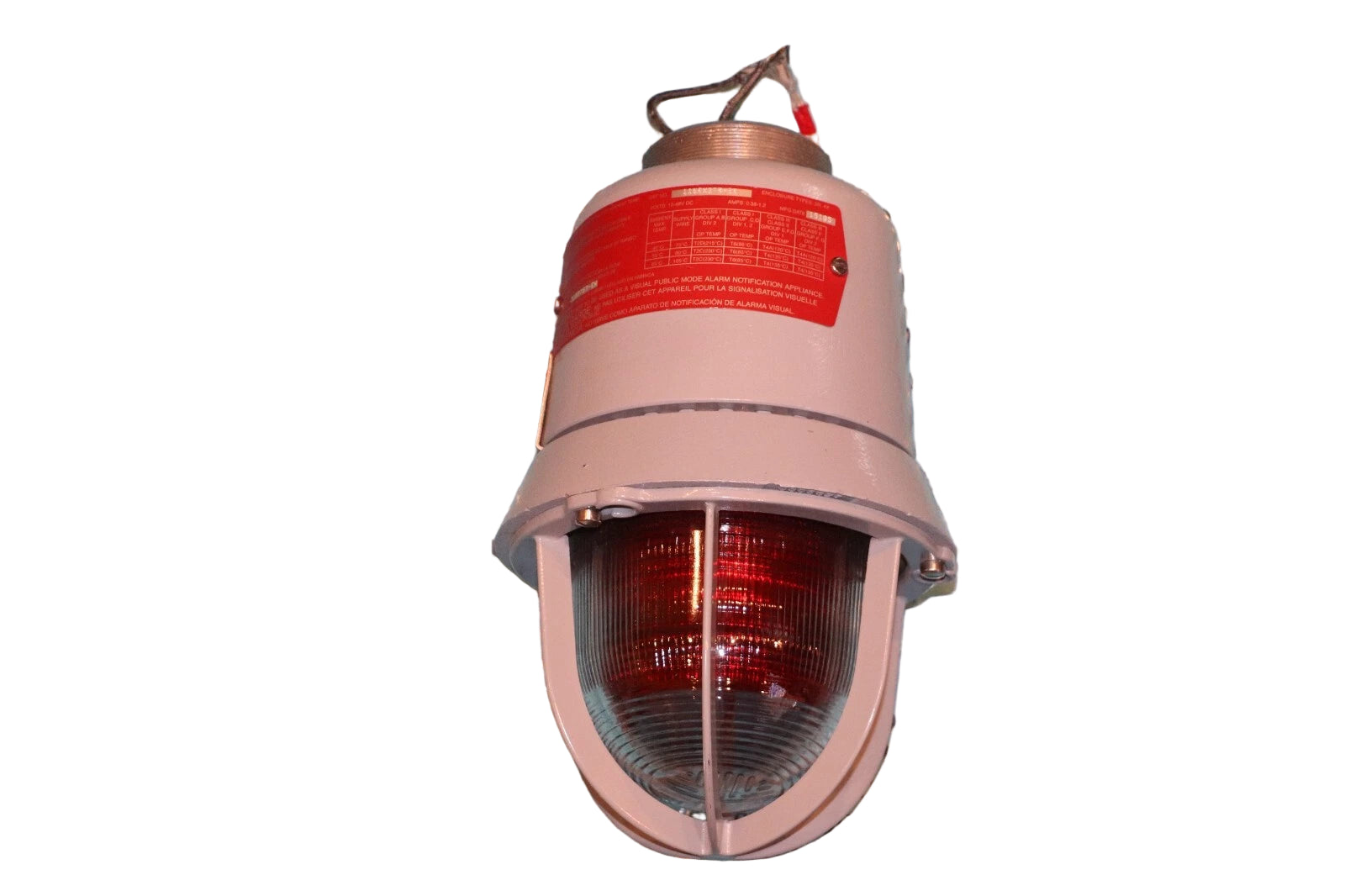

The Edwards Signaling 116EXSTR-EK Explosion-Proof Red Strobe is a rugged xenon strobe warning light designed for visual signaling in hazardous industrial environments. Operating on 12–48 VDC, it delivers 800,000 candlepower flashes at 65 fpm to provide high visibility in both indoor and outdoor hazardous areas. Its corrosion-resistant, explosion-proof cast aluminum housing and glass dome ensure safe, long-lasting performance in demanding applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Industrial Signaling |
| Part Number | 116EXSTR-EK |
| Subcategory | Explosion-Proof Strobe Lights |
| Series | 116EX Series |
| Type | Explosion-Proof Red Strobe |
| Lamp Type | Xenon Strobe |
| Light Intensity | 800,000 Candlepower |
| Lamp Life | 3,000 Hours |
| Flash Rate | 65 Flashes Per Minute (fpm) |
| Operating Voltage | 12–48 VDC |
| Operating Current | 0.38–1.2 A |
| Lens Material | High-Impact Glass Dome |
| Lens Color | Red |
| Enclosure Material | Cast Aluminum |
| Enclosure Finish | Epoxy Powder Coated |
| Enclosure Rating | NEMA 3R / 4X |
| Certifications | UL 1203, UL 1638, cUL, CSA C22.2 |
| Construction Features | Explosion-Proof, Corrosion-Resistant |
| Mounting Options | Pendant, Ceiling, Stanchion, Bracket |
| Application | Hazardous Locations (Indoor/Outdoor) |
| Additional Features | Includes Protective Dome Guard |
| Model | 116 |
| Weight | Approx. 8.5 lbs |
Information About 116EXSTR-EK

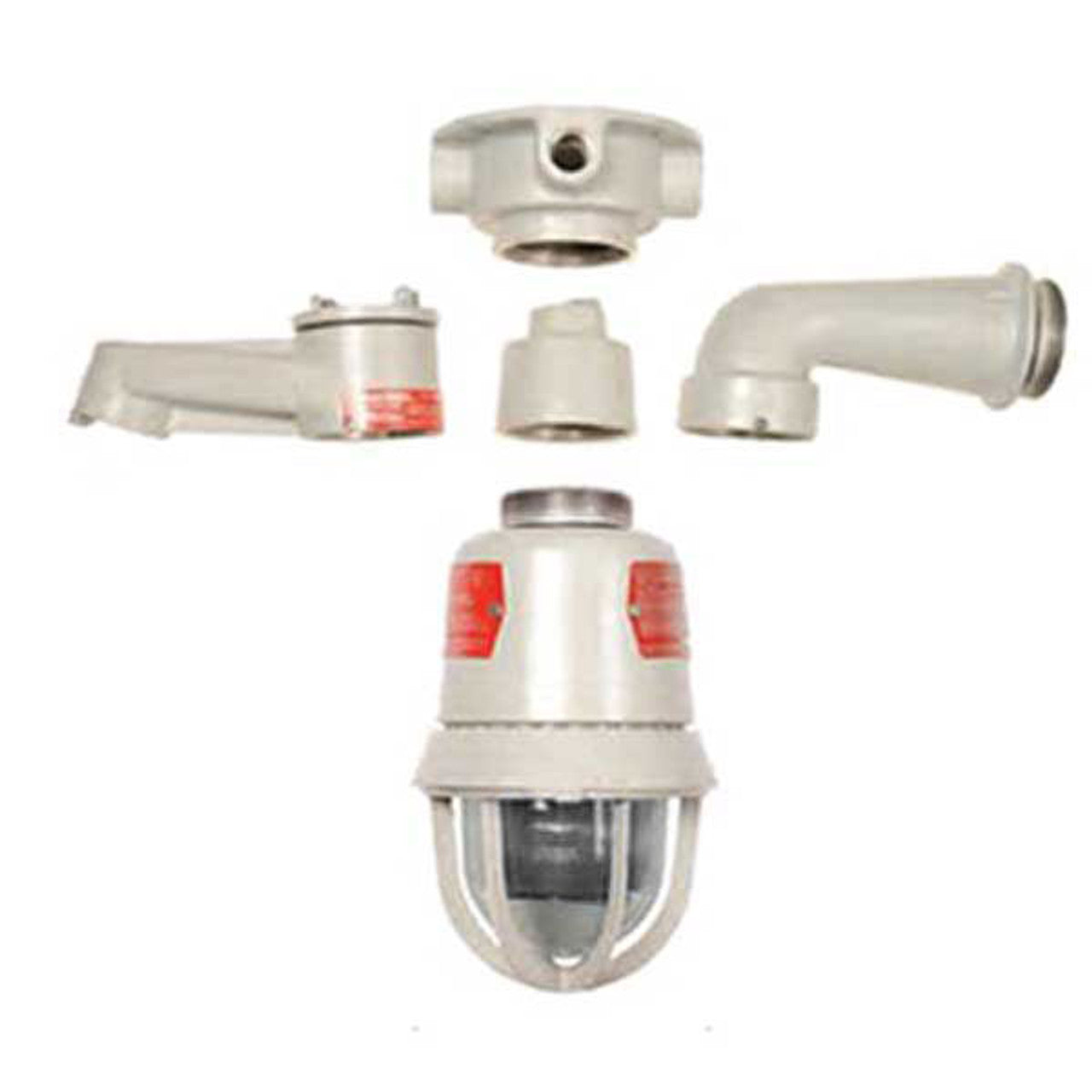

The 116EXSTR-EK belongs to the Edwards 116EX Series, a line of explosion-proof signaling devices built for use in hazardous Class I, II, and III Division 1 and 2 environments. The unit’s heavy-duty construction includes a cast aluminum enclosure with an epoxy powder coating and a high-impact red glass lens for exceptional durability. This model is UL 1203, UL 1638, cUL, and CSA certified, ensuring compliance with North American safety standards for hazardous locations. Designed for flexibility, it can be mounted via pendant, ceiling, stanchion, or bracket fittings and includes a protective dome guard for additional lens protection.
Key Features:
- Explosion-Proof Enclosure: Certified for Class I, II, and III Division 1 and 2 hazardous areas for maximum safety.
- High-Intensity Output: Xenon strobe produces up to 800,000 peak candlepower for exceptional visibility.
- Durable Materials: Cast aluminum housing with epoxy powder coating resists corrosion and harsh conditions.
- Flexible Voltage Range: Operates from 12 to 48 VDC, accommodating multiple power configurations.
- Long Lamp Life: Rated for 3,000 hours of operation, reducing maintenance frequency.
- Reliable Flash Rate: Emits 65 flashes per minute for effective signaling and attention capture.
- Versatile Mounting Options: Supports pendant, ceiling, stanchion, or bracket installation.
- Certified Safety Standards: UL 1203, UL 1638, cUL, and CSA C22.2 approved for hazardous location use.
The 116EXSTR-EK delivers the reliability and precision required for hazardous-area visual signaling in industrial and safety-critical environments.
