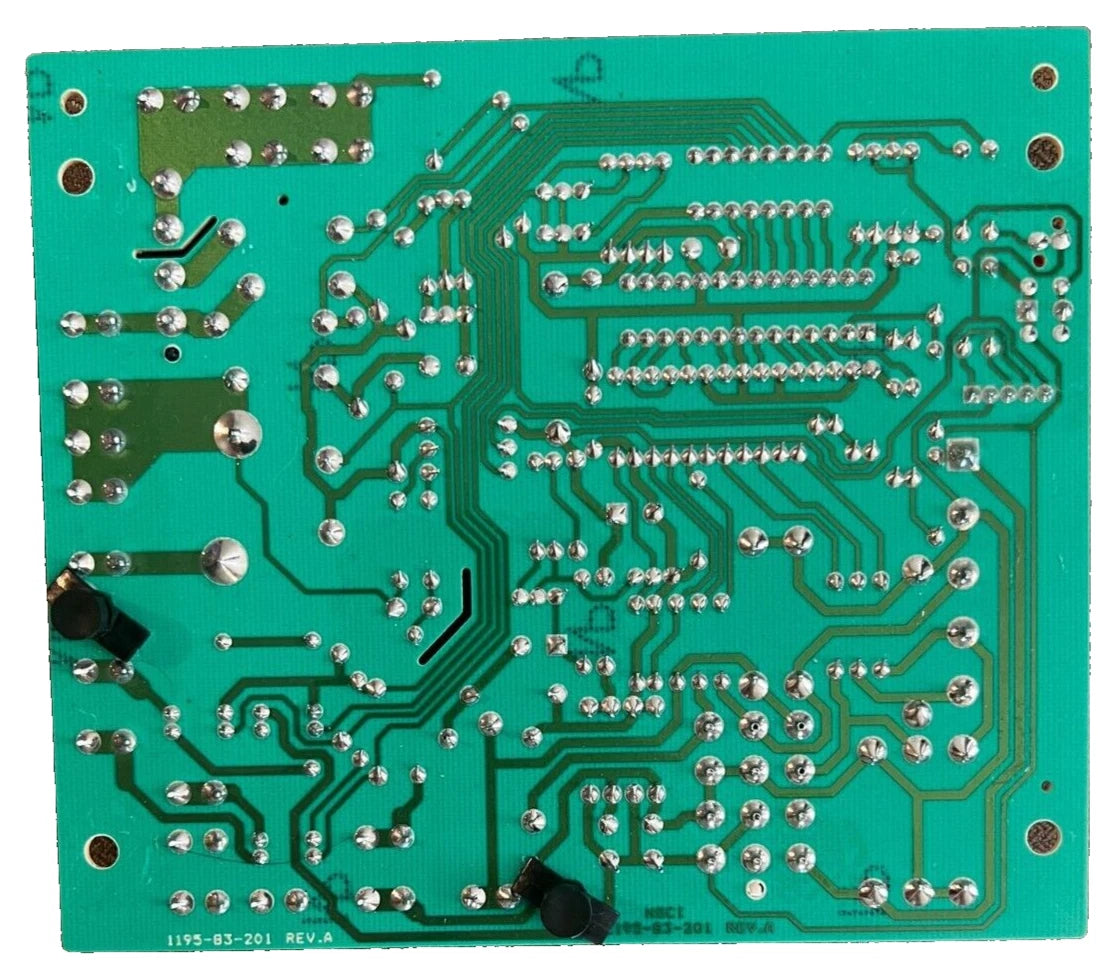

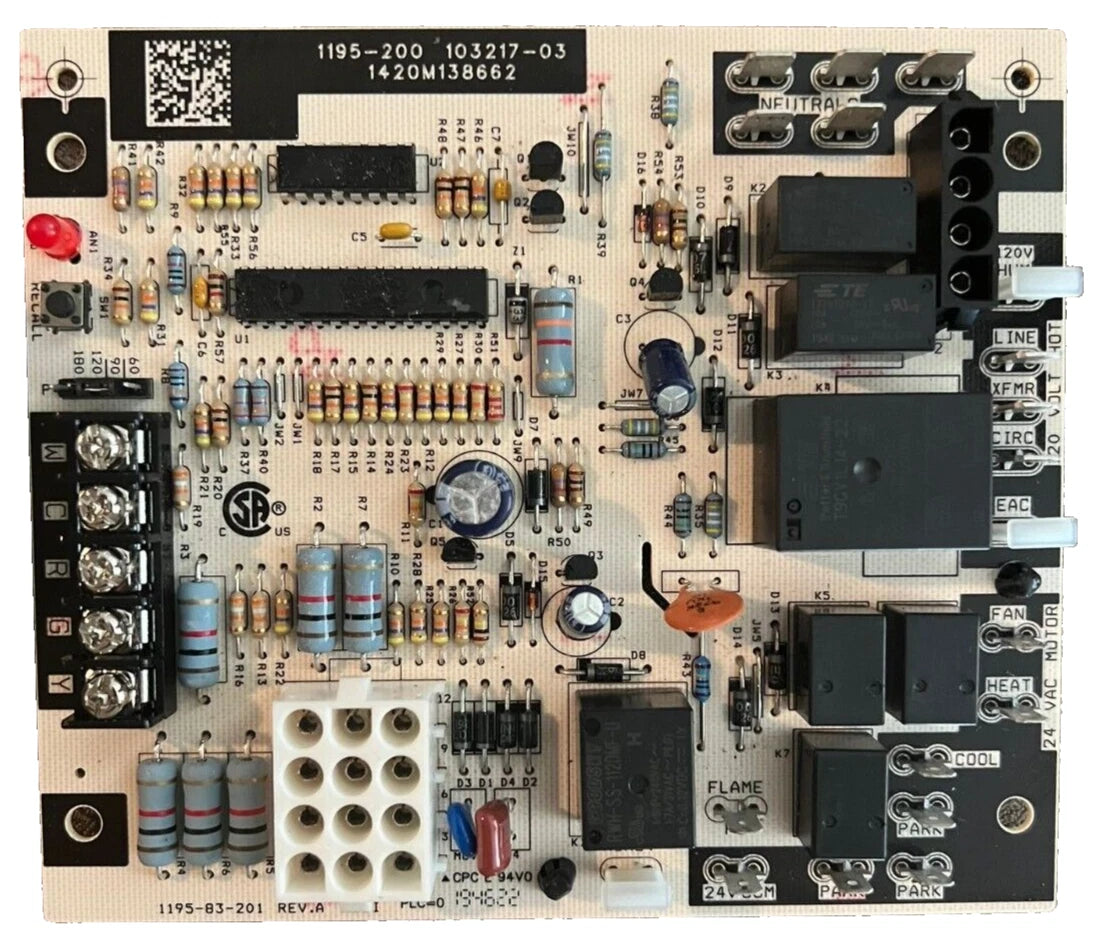

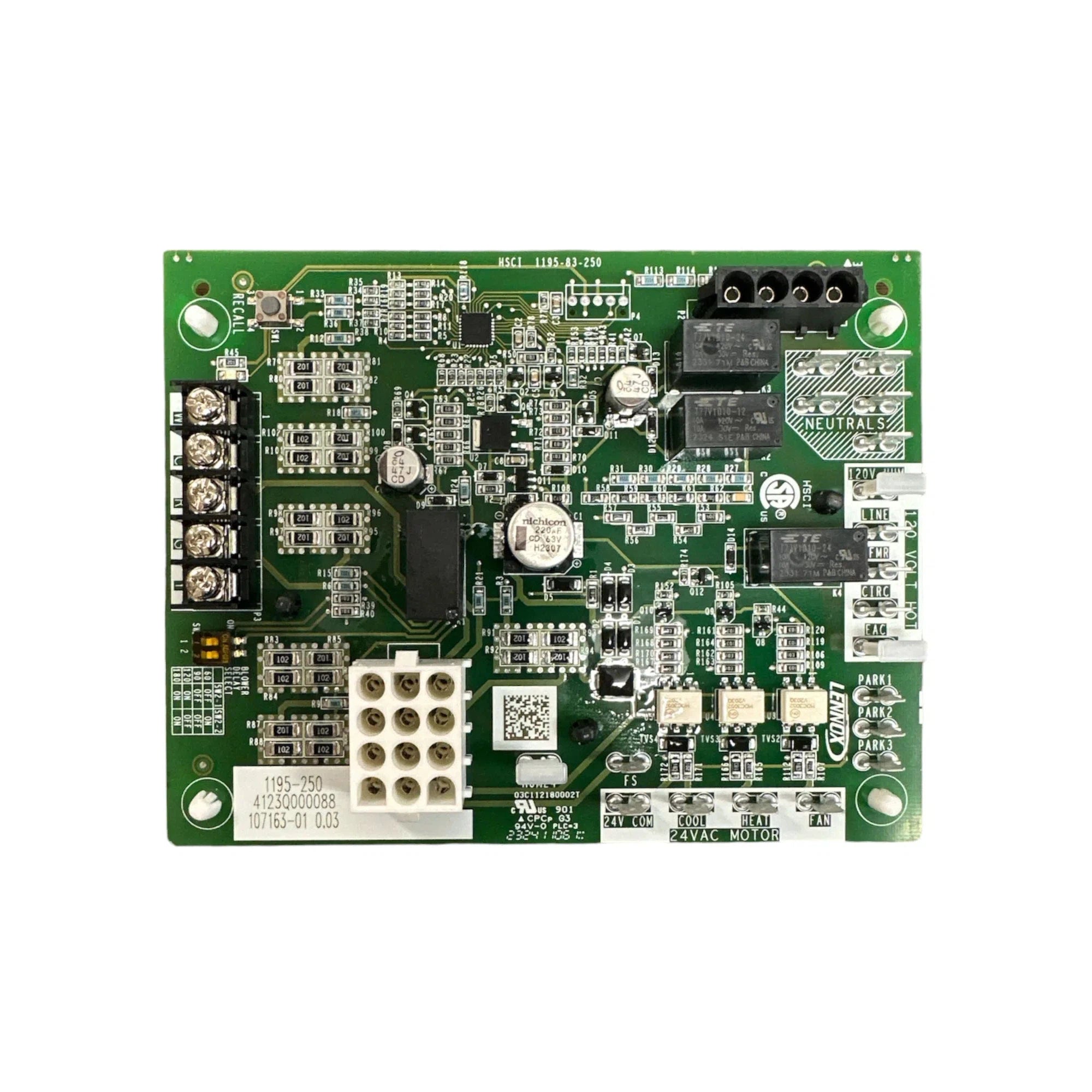

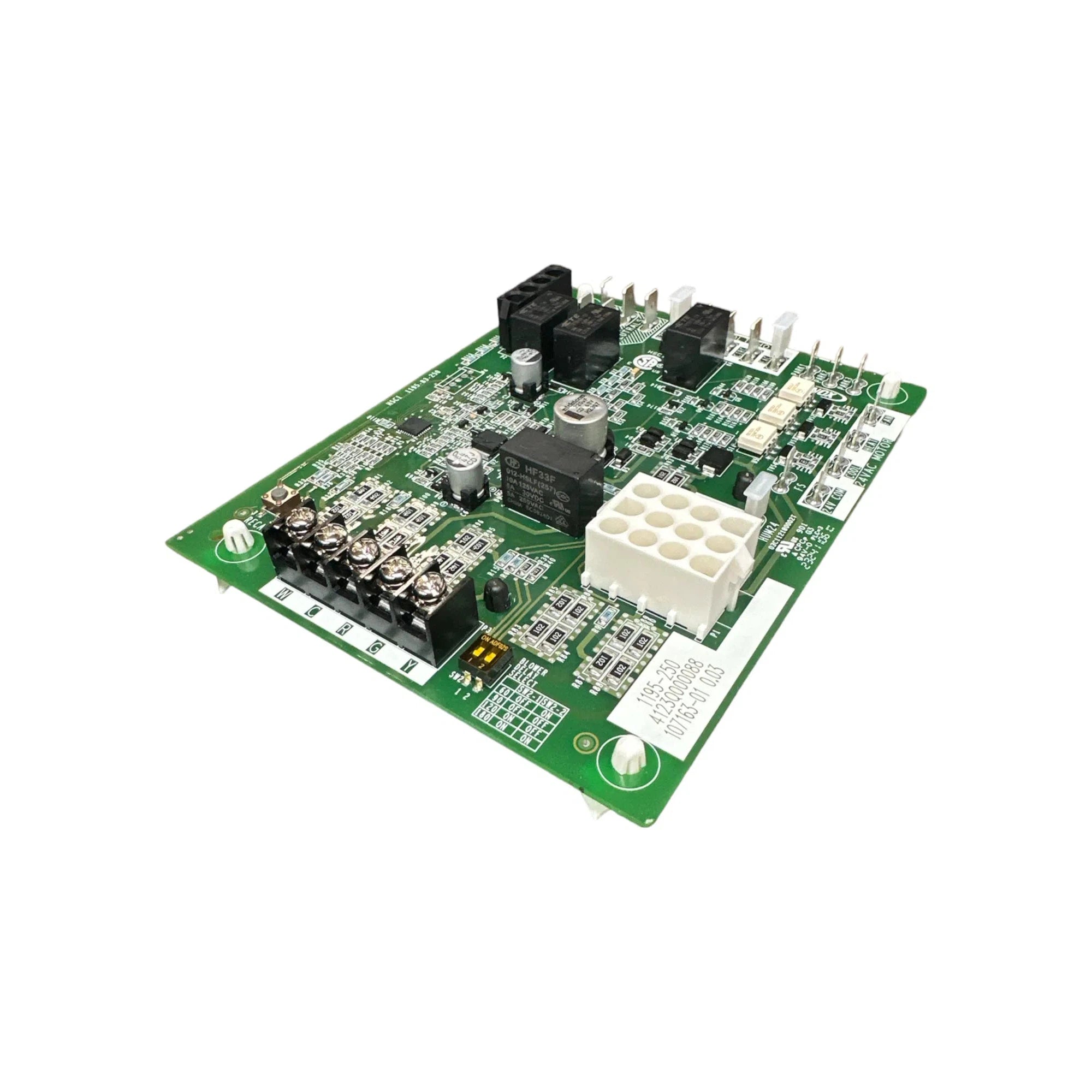

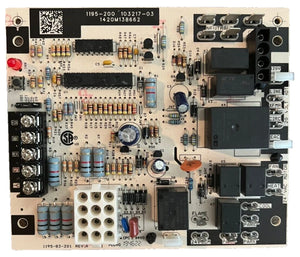

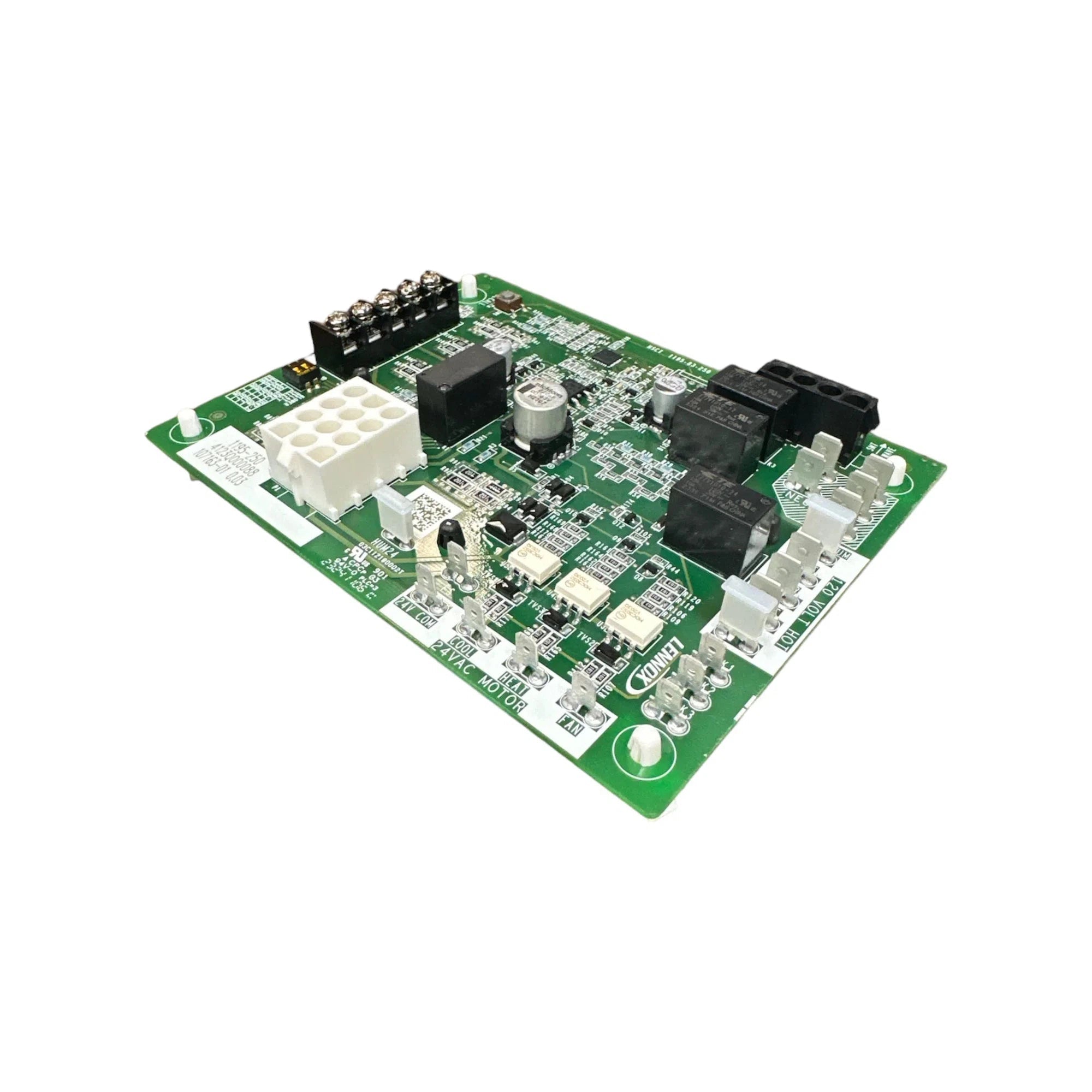

1195-200 | Lennox Furnace Control Circuit Board 115V
- Regular price
- $262.00
- Sale price
- $262.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1195-200
Description
The Lennox 1195-200 is a furnace control circuit board designed for central furnaces and air conditioners, ensuring reliable operation of ignition, fan, and safety functions. Operating on 115 V single-phase power with up to 50 A current capacity, it provides consistent and efficient HVAC system management.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lennox |
| Category | Control Boards |
| Part Number | 1195-200 |
| Subcategory | Furnace Control Boards |
| Function | Control board for ignition, fan, and safety functions |
| Voltage | 115 V |
| Power Phase | Single-phase |
| Amperage | 40–50 A |
| Compatible Brand | Lennox, Universal |
| Compatible Products | Central furnaces and central air conditioners |
| Material | Plastic, Fiberboard |
| Dimensions | Length: 8 in |
| Application | HVAC heating and cooling systems |
| Mounting | Panel mounted |
| Item Weight | 0.5 lb |
Information About 1195-200
The 1195-200 is a Lennox furnace control board built to regulate essential HVAC system functions including ignition sequencing, fan operation, and safety controls. It is compatible with multiple Lennox models such as ML196UH070XE36B-51, 103217-03, and 103217-02, making it a versatile replacement option for residential systems. Constructed from durable fiberboard and plastic materials, this unit offers stable performance while maintaining a compact and lightweight design. With support for 115 V single-phase power and up to 50 A operation, the board ensures efficient control in both central furnace and central air conditioning units.
Key Features:
-
Ignition Control Function: Manages ignition sequencing to ensure safe burner startup and shutdown.
-
Fan and Blower Regulation: Coordinates motor control for efficient airflow in heating and cooling systems.
-
High Current Capacity: Supports up to 50 A operation at 115 V single-phase power.
-
Model Compatibility: Works with Lennox models ML196UH070XE36B-51, 103217-03, and 103217-02, plus universal fit options.
-
Durable Construction: Built from fiberboard and plastic materials to provide long-lasting reliability.
-
Compact and Lightweight: At only 0.5 lb and 8 in length, it installs easily in HVAC control panels.
-
Integrated Safety Features: Supports monitoring and fault detection to protect HVAC equipment.
The 1195-200 delivers the reliability and precision required for efficient furnace and air conditioner control in residential HVAC systems.
