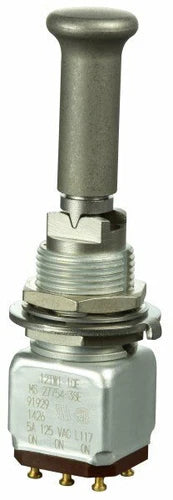

12TW1-10E | Honeywell TW Sealed DPDT ON-ON-ON Toggle Switch
- Regular price
- $887.00
- Sale price
- $887.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 12TW1-10E
Description
The Honeywell 12TW1-10E is a sealed toggle switch from the TW series featuring a locking lever actuator and ON-ON-ON switching function. Designed for panel mounting, it provides multi-position circuit control in industrial and aerospace-grade applications. Its sealed construction supports reliable operation across a wide temperature range.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Pilot Devices |
| Part Number | 12TW1-10E |
| Subcategory | Selector Switch |
| Series | TW |
| Contact Configuration | DPDT |
| Switch Function | ON-ON-ON |
| Current Rating | 5 A (AC) |
| Voltage Rating (AC) | 125 VAC |
| Mounting Type | Panel Mount |
| Bushing Thread | 15/32-32 |
| Termination Style | Solder Lug |
| Actuator Type | Locking Lever |
| Ingress Protection | Environment Sealed |
| Operating Temperature | -65°C to +71°C |
| Weight | 3.00 lbs |
Information About 12TW1-10E
The 12TW1-10E is part of Honeywell’s TW series of heavy-duty toggle switches engineered for demanding environments. It incorporates a DPDT contact configuration and can be configured for triple-throw (SP3T equivalent) switching using appropriate jumper wiring. The switch mounts through a 15/32-32 threaded bushing and uses solder lug terminals for secure electrical connections. With an environment-sealed design and locking lever actuator, it is suited for applications requiring controlled switching and resistance to contamination.
Key Features:
-
ON-ON-ON Switching: Provides three maintained toggle positions.
-
DPDT Contact Form: Double-pole, double-throw configuration.
-
Locking Lever Actuator: Prevents unintended switching.
-
Panel Mount Installation: 15/32-32 threaded bushing design.
-
Environment Sealed: Designed to resist dust and moisture exposure.
-
5A Rating at 125 VAC: Suitable for moderate AC load switching.
-
Wide Temperature Range: Operates from -65°C to +71°C.
-
Solder Lug Terminals: Secure and durable electrical termination.
The 12TW1-10E delivers the reliability and precision required for multi-position industrial selector and control applications.
