1300-3612-020304 | EBM-Papst Fan Blower 120 Volts
- Regular price
- $807.00
- Sale price
- $807.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1300-3612-020304
Description

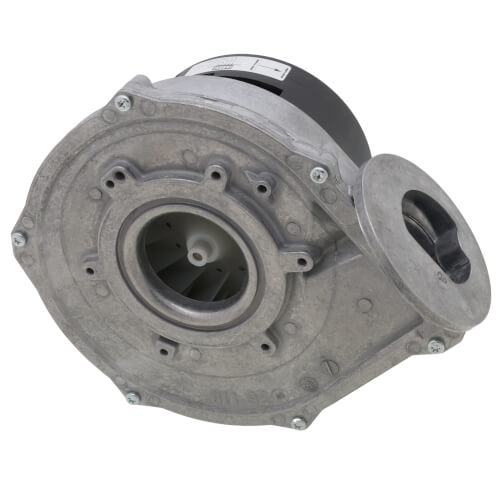

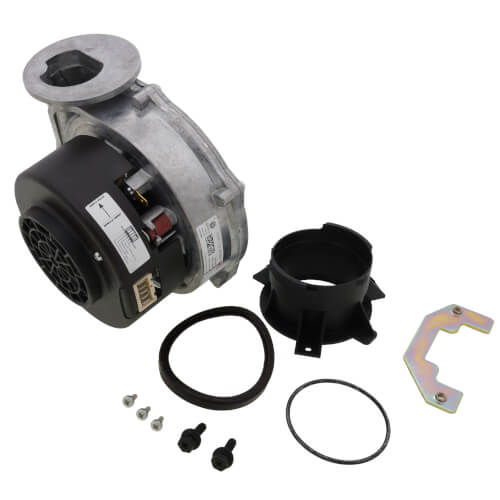

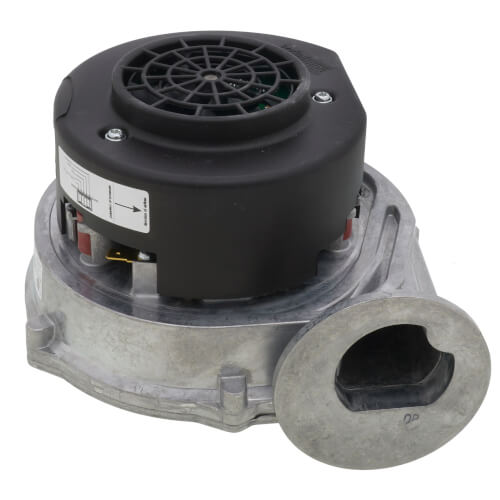

The EBM-Papst 1300-3612-020304 is a high-speed inducer fan designed for efficient air movement in compact industrial systems. Engineered for single-phase 120V operation, it delivers stable performance with minimal maintenance.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | EBM-Papst |
| Category |
HVAC
|
| Part Number | 1300-3612-020304 |
| Subcategory | Fan/Ventilation |
| Motor Type | Electronically Commutated (EC) |
| Voltage | 120 V |
| Frequency | 50/60 Hz |
| Power Consumption |
90 W |
| Speed | 7400 RPM |
| Bearing Type | Ball Bearing |
| Insulation Class | Class H |
| Housing | Die-cast Aluminum (with flange) |
| Material | Aluminum, Steel, Plastic, Metal |
| Power Phase | 1 Phase |
| Color | Gray |
| Weight | 3.10 lbs |
Information About 1300-3612-020304
The 1300-3612-020304 is an electronically commutated centrifugal inducer fan operating at 7400 RPM with a power consumption of 90 watts. The unit features a single-inlet, 1-phase configuration compatible with 50/60 Hz networks, and comes with a die-cast aluminum flange-mounted housing. Built with ball bearings and rated under insulation class H, it combines high efficiency with long service life, making it suitable for demanding airflow applications in gas-powered or electrically driven systems.
Key Features:
- Centrifugal Design: Generates stable, directional airflow ideal for draft and exhaust operations.
- Electronically Commutated Motor: Improves energy efficiency and reduces wear over time.
- High Speed Output: Operates at 7400 RPM for rapid air displacement.
- Single Inlet Configuration: Simplifies installation and optimizes intake performance.
- 1-Phase, 120V Operation: Runs on standard power systems with 50/60 Hz compatibility.
- 90-Watt Power Rating: Delivers strong output while maintaining low power consumption.
- Ball Bearing System: Enhances longevity and ensures quiet, smooth motion.
- Flanged Aluminum Housing: Die-cast structure for rigid mounting and heat resistance.
- Insulation Class H: Supports higher thermal endurance and durability.
- Multi-Material Build: Includes aluminum, steel, plastic, and metal components for structural reliability.
The 1300-3612-020304 combines powerful performance with a compact, flange-mounted design for efficient ventilation in industrial applications.
