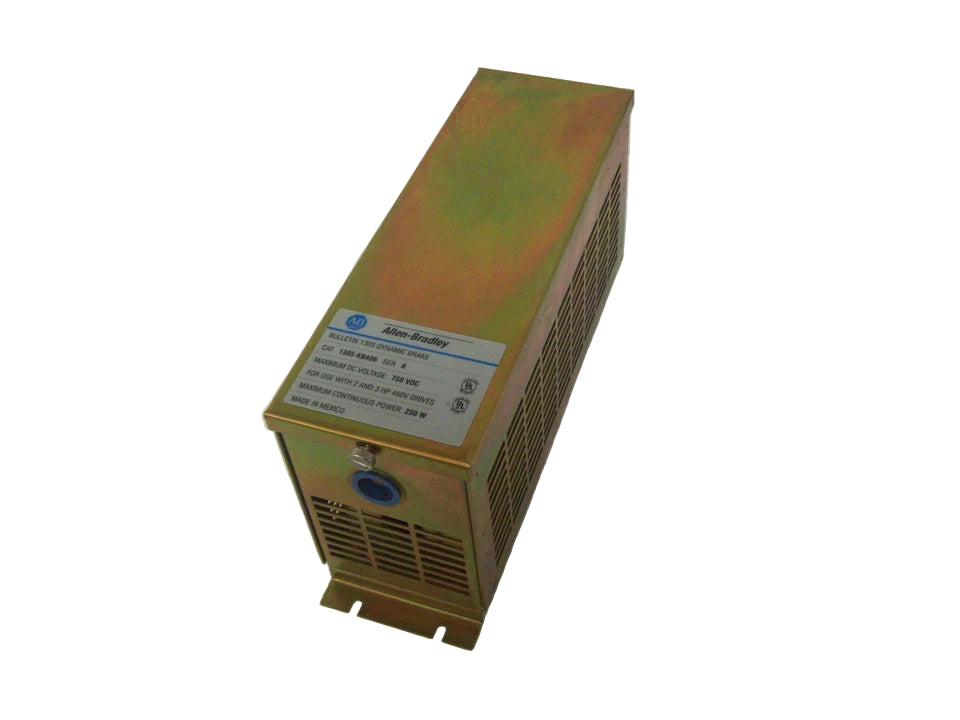

1305-KBA06 | Allen-Bradley Dynamic Brake
1305-KBA06 | Allen-Bradley Dynamic Brake
1305-KBA06 | Allen-Bradley Dynamic Brake
    1305-KBA06 | Allen-Bradley Dynamic Brake
1305-KBA06 | Allen-Bradley Dynamic Brake

1305-KBA06 | Allen-Bradley Dynamic Brake

Part #: 1305-KBA06 Manufactured by: Allen-Bradley
Regular price
$336.00
Sale price
$336.00
Regular price
40 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The 1305-KBA06 is a dynamic brake kit accessory for Allen-Bradley 1305 Series B drives. The kit provides fast braking capa...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1305-KBA06
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1305-KBA06

Description / Specifications

Description

The Allen-Bradley 1305-KBA06 is a dynamic brake kit designed for use with 1305 Series B adjustable frequency AC drives. It allows rapid stopping or controlled deceleration of motors by dissipating excess energy at 460 Volts AC.





Technical Specifications

Brand Allen-Bradley
Product Type Dynamic Brake Kit
Part Number 1305-KBA06
Voltage Type AC
Voltage Rating 460 Volts AC
Compatible Devices Allen-Bradley 1305 AC Drives





Information About 1305-KBA06

The 1305-KBA06 is part of the Allen-Bradley accessory line for the 1305 adjustable frequency drive family, offering enhanced braking functionality in demanding applications. This dynamic brake kit enables the drive to stop or slow a connected motor quickly by operating at up to 150% power during braking. It is compatible only with Series B 1305 drives and should not be used with Series A models. The kit includes a DB base driver assembly, DB resistor assembly, three wire harnesses, two gaskets, two Keps nuts, and a CSLA board for complete installation. To activate braking, the 1305 drive’s dynamic braking switch must be set to “Enable.” Built for safety and reliability, the kit ensures effective energy dissipation during deceleration while requiring careful handling due to hazardous voltages during adjustment and operation.

Key Features:

  • Product Type: Dynamic brake kit designed for Allen-Bradley 1305 Series B AC drives.
  • Voltage Rating: Operates at 460 Volts AC to support drive braking functions.
  • Braking Capacity: Provides intermittent braking at up to 150% power for rapid motor stop.
  • Compatibility: Exclusively for 1305 Series B drives, not Series A versions.
  • Components: Supplied with DB base driver assembly, resistor assembly, harnesses, gaskets, nuts, and CSLA board.
  • Activation: Enabled by switching the host drive’s dynamic braking (DB) switch to “Enable.”
  • Safety: Requires careful handling due to hazardous voltage during setup and operation.
  • Application: Used in custom drive applications where controlled braking or fast stops are needed.

The 1305-KBA06 delivers the braking performance and control required for safe and efficient deceleration in AC drive applications.


Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

Frequently Asked Questions about 1305-KBA06
Question: What is the Allen-Bradley 1305-KBA06 used for?
Date Update:28/05/2025
Answer:

The 1305-KBA06 is a dynamic brake kit designed to enhance stopping performance in Allen-Bradley 1305 adjustable frequency AC drives. It allows the motor to stop quickly or decelerate under high-inertia load conditions. This accessory is essential for applications requiring fast motor braking or precise motion stopping. It is especially useful in industrial systems where safety or process timing is critical.

Question: What voltage is the 1305-KBA06 rated for?
Date Update:28/05/2025
Answer:

The 1305-KBA06 is rated for 460 Volts AC, which matches the voltage range of the compatible 1305 Series B AC drives. This rating ensures proper coordination between the drive and the brake kit. Using the correct voltage is critical for safety and performance.

Question: With which devices is the 1305-KBA06 compatible?
Date Update:28/05/2025
Answer:

The dynamic brake kit is specifically designed for use with Series B Allen-Bradley 1305 adjustable frequency drives. It is not compatible with Series A drives, and using it with unsupported series could result in improper operation or damage. Always verify the drive's series before installation.

Question: Can adjustments be made while the system is powered?
Date Update:28/05/2025
Answer:

Yes, once installed, adjustments to the 1305-KBA06 kit can be made while the power is on. However, this involves hazardous voltage, and adjustments must be carried out with extreme caution. Proper personal protective equipment and training are essential for safe handling.

Question: Is the 1305-KBA06 difficult to install?
Date Update:28/05/2025
Answer:

The installation involves multiple components and requires the drive to be powered off and fully discharged for safety. While not overly complex for experienced technicians, it must be done carefully following the manufacturer’s instructions. Proper grounding and wiring practices must be observed.
