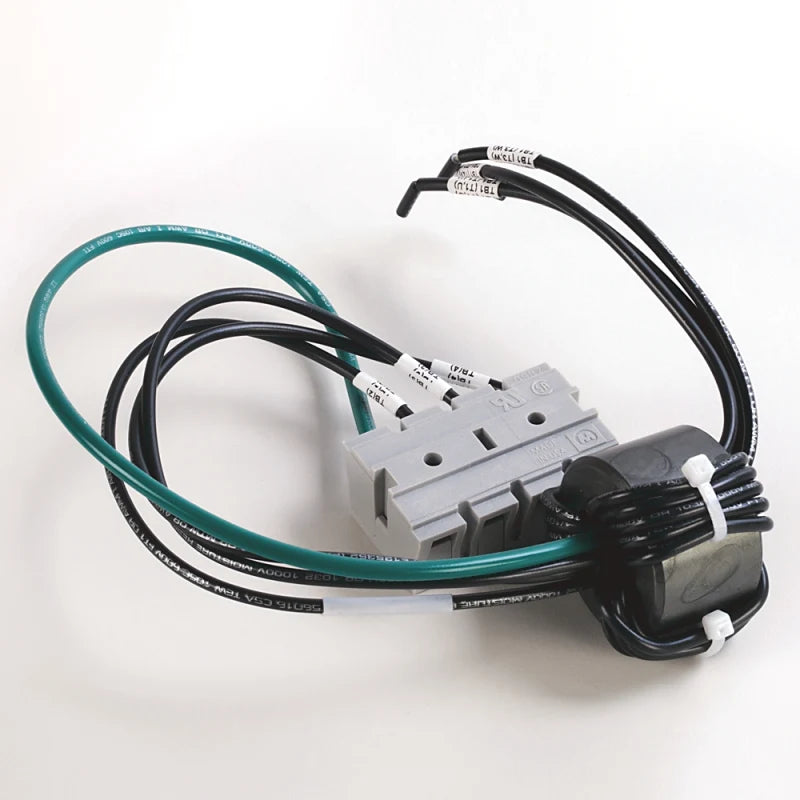

1321-M009 | Allen-Bradley TORROID, COMMON MODE, 9A
- Regular price
- $215.00
- Sale price
- $215.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1321-M009
Description
The Allen-Bradley 1321-M009 is a common mode choke designed for use with PowerFlex AC drives. It reduces electrical noise and interference from pulse-width modulation (PWM) drive outputs, protecting sensitive equipment. This unit is commonly applied in industrial automation systems where reliable signal integrity and EMC compliance are critical.
Technical Specifications
|
Brand |
Allen-Bradley |
|
Enclosure |
Open Style |
|
Manufacturer |
Rockwell Automation |
|
Rating |
9 Amps, Open Style (with terminal strip) |
|
Device Type |
Common Mode Choke |
|
Product Type |
Simple |
|
Specifications |
9 |
Information About 1321-M009
The 1321-M009 is part of the Allen-Bradley 1321-Mxxx Common Mode Choke family from Rockwell Automation, engineered to minimize common mode noise in drive installations. Rated at 9 A and built in an open-style design with terminal strip, it is compatible with PowerFlex 4-Class, PowerFlex 520-Series, PowerFlex 7-Class, PowerFlex 750-Series, as well as legacy Allen-Bradley 1305 and 1336 series drives. It supports motor power ratings ranging from 0.25 to 5 HP depending on voltage class (100–480 V AC). By filtering high-frequency disturbances, the choke helps protect programmable controllers, sensors, and analog circuits from noise coupling. Its compact construction allows straightforward mounting near drive outputs to suppress PWM carrier frequency effects, ensuring greater reliability and system stability.
Key Features:
- Design: Open-style choke with 9 A rating and integrated terminal strip for easy connection.
- Noise Reduction: Suppresses common mode noise from PWM drive outputs to protect nearby devices.
- Compatibility: Supports PowerFlex 4, 520, 7-Class, 750-Series, 400 drives, and legacy 1305/1336 models.
- Application Range: Suitable for 0.25–5 HP motor drives across 100–480 V voltage classes.
- Integration: Designed for installation at drive output, minimizing interference with controllers and sensors.
- Durability: Built for industrial environments, supporting long-term reliable drive operation.
- Performance: Reduces EMI/RFI disturbances, improving compliance with EMC standards.
- Ease of Use: Compact dimensions and standardized wiring connections simplify installation.
The 1321-M009 delivers the reliability and noise suppression required for industrial drive systems and automation environments.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
