1336-BDB-SP31D | Allen-Bradley Gate Driver Circuit Board 460V
- Regular price
- $3,859.00
- Sale price
- $3,859.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

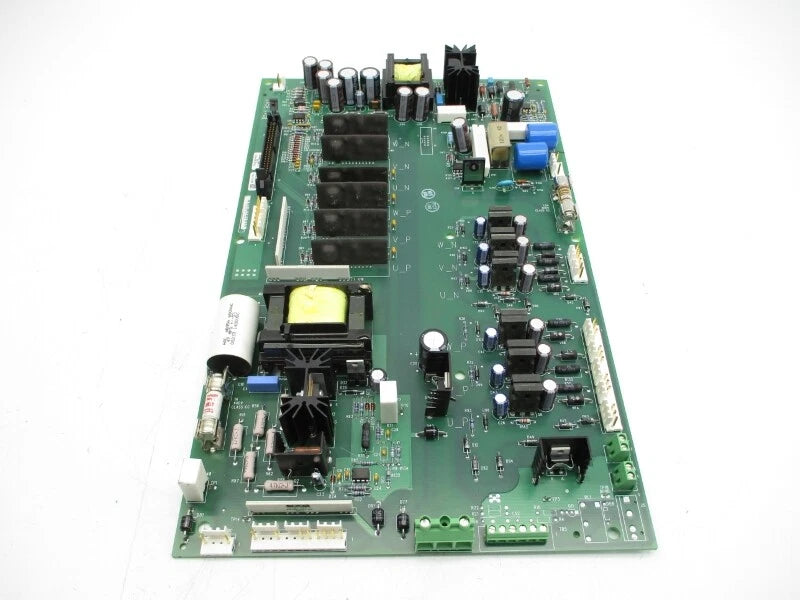

Product Description P/N: 1336-BDB-SP31D
Description
The Allen-Bradley 1336-BDB-SP31D is a gate driver circuit board designed for high-performance motor control applications. It supports up to 125 horsepower at 460V AC, delivering reliable operation within industrial variable frequency drive systems.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Drive Components
|
| Part Number | 1336-BDB-SP31D |
| Subcatecory |
Drive Boards
|
| Product Series | 1336, 1336 PLUS |
| Type | Gate Driver Circuit Board (PCB) |
| Voltage | 460V AC |
| Horsepower Support | 125 HP |
| Frequency | 50/60 Hz |
| Frame Compatibility | A, B, C, D, or E |
| Application | Motor Control, IGBT Gate Drive |
| Weight | 1.22 kgs |
Information About 1336-BDB-SP31D
The 1336-BDB-SP31D belongs to Allen-Bradley's series of replacement and spare parts for the 1336 and 1336 PLUS drives. Specifically, this gate driver board is a printed circuit board (PCB) module that interfaces with the IGBT power stage of the drive, ensuring proper gate signal transmission to drive the motor efficiently and accurately. This board is compatible with multiple frame models A, B, C, D, or E, providing versatility across various drive setups. It is engineered for three-phase systems operating at 460V AC and supports motors up to 125 HP, making it suitable for medium to heavy-duty applications across diverse industries.
Key Features:
-
Voltage Compatibility: Operates with 460V AC input for industrial motor control
-
Horsepower Support: Drives motors up to 125 HP, ideal for high-power applications
-
Mounting Compatibility: Designed for use in Frame A through E drive systems
-
Circuit Type: Gate driver PCB for delivering precise gate pulse signals
-
Operational Frequency: Supports 50/60 Hz standard power systems
-
Component Type: Replacement/spare gate drive board, Allen-Bradley OEM
The 1336-BDB-SP31D provides essential gate drive functionality within the power stage of a variable frequency drive, enabling precise and efficient motor control performance.
