1336-FAN-SP2A | Allen-Bradley Cooling Fan Frame D
- Regular price
- $4,277.00
- Sale price
- $4,277.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1336-FAN-SP2A
Description

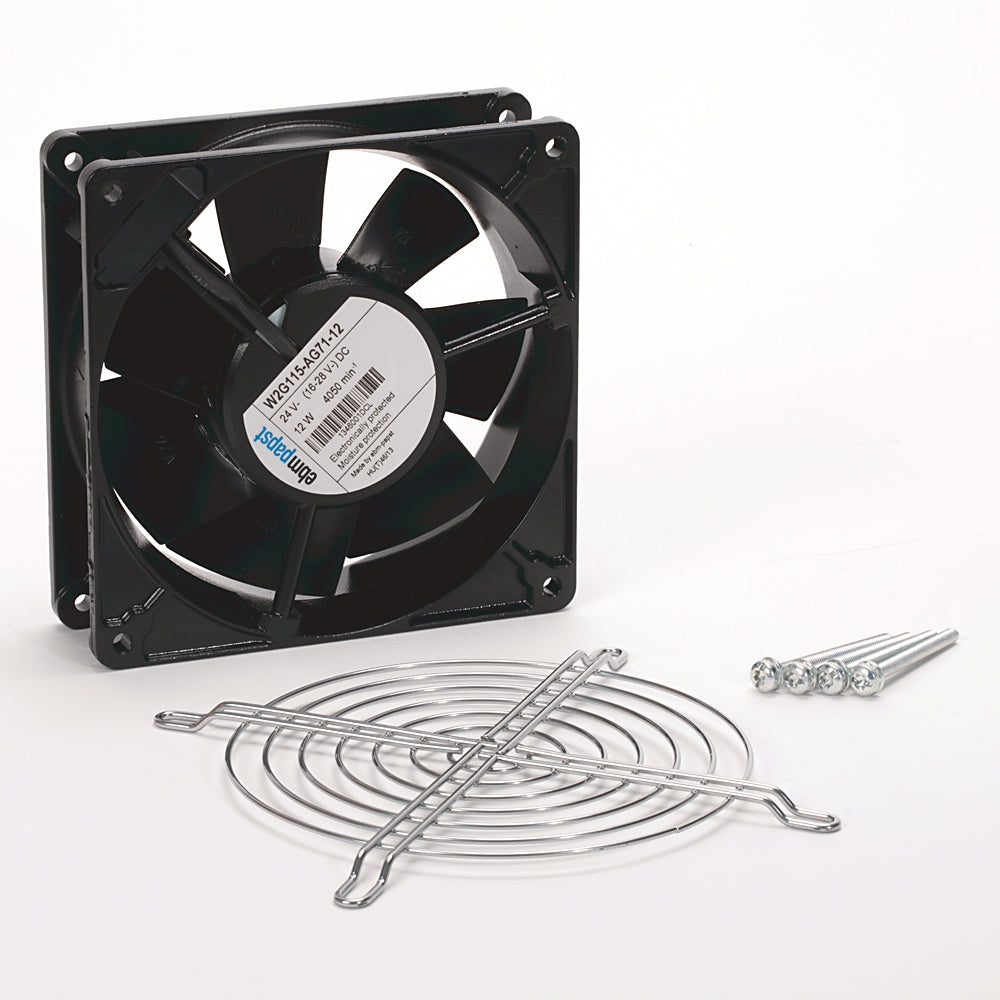

The Allen-Bradley 1336-FAN-SP2A is a replacement cooling fan designed specifically for Frame D drives in the 1336 family of Adjustable Frequency AC Drives. It ensures optimal thermal management and consistent performance in demanding industrial environments.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
|
Category |
Drive Components
|
|
Part Number |
1336-FAN-SP2A |
| Subcatecory |
Drive Cables & Accessories
|
| Product Family | 1336 Plus |
| Compatible drive series | 1336 Plus, 1336 Force, 1336 Impact, 1336 Plus Regen and 1336 plus II drives |
| Compatible drive frame | Frame D |
| Drive power ratings | Frame D: 60 HP; 75 HP;100 HP; 125 HP; X150 HP |
| No. of units per drive | One (1) |
| Color | Black |
| Rated speed | 2250 rpm |
| Current rating | 0.67 Ampere |
| Spare part Level Number | Level 3 Discrete component |
Information About 1336-FAN-SP2A
The 1336-FAN-SP2A is designed for use with Allen-Bradley's 1336 Plus, 1336 Force, 1336 Impact, 1336 Plus Regen, and 1336 Plus II series drives. This fan unit is compatible with Frame D configurations and supports drive power ratings ranging from 60 HP up to X150 HP. With a rated speed of 2250 RPM and a current draw of 0.67 A, the fan is engineered for reliable, continuous cooling to prolong drive life and maintain operational efficiency. It is considered a Level 3 discrete component spare part and is finished in industrial black for durability.
Key Features:
-
Drive Compatibility: Supports multiple 1336 drive families including Plus, Force, Impact, Regen, and Plus II.
-
Frame-Specific Design: Tailored for Frame D drives with power ratings from 60 HP to X150 HP.
-
Efficient Cooling: Provides robust airflow with a rated speed of 2250 RPM to maintain ideal operating temperatures.
-
Electrical Performance: Operates at a current rating of 0.67 Amps for energy-efficient function.
-
Easy Replacement: Designed as a single-unit installation for quick replacement and minimal downtime.
The 1336-FAN-SP2A ensures effective heat dissipation and supports the reliability of Frame D 1336 drives in industrial settings.
