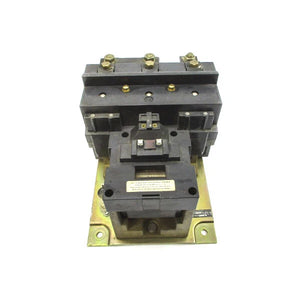

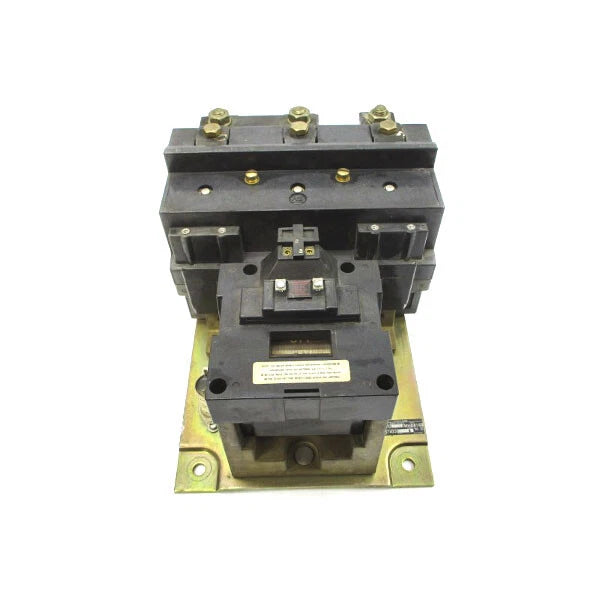

1379-NC360 | Allen-Bradley Contactor Kit
- Regular price
- $4,512.00
- Sale price
- $4,512.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1379-NC360
Description
The 1379-NC360 is a non-reversing contactor kit from Allen-Bradley, designed for use with 1370 Series DC drive modules. Rated for up to 900 Amps DC at 550V motor load, it offers robust performance and reliable control in demanding industrial applications.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Contactors & Starters
|
| Part Number | 1379-NC360 |
| Subcatecory |
Contactor
|
| Series | 1370 Modules and Accessories |
| Voltage | 500 Volts DC maximum |
| Contact make current | 900 Amps DC maximum at 550 Volts DC motor load |
| Type | Non-reversing |
| Auxiliary contact voltage/coil voltage | 115 Volts AC, 50/60 Hertz |
| Auxiliary contact continuous current | 10 Amps AC maximum |
| Auxiliary contact break current | 6 Amps AC maximum |
| Coil pickup | 75% of nominal (maximum) |
| Coil dropout | 55% of nominal (maximum) |
| Breakdown voltage | 2,100 Volts RMS |
| Mounting orientation | Vertical |
| Operating temperature | 0 to 65 degrees Celsius (32 to 149 degrees Fahrenheit) |
| Weight | 45.00 lbs |
Information About 1379-NC360
The Allen-Bradley 1379-NC360 is a non-reversing contactor kit developed for integration with 1370 Series Modules and Accessories. Specifically engineered for DC motor load applications, it can handle contact make currents up to 900 Amps DC at 550 Volts DC, while supporting operational voltages up to 500 Volts DC maximum.
Key Features:
-
High Current DC Switching: Supports up to 900 Amps at 550V DC motor loads.
-
Robust Coil Control: 115V AC auxiliary coil voltage with reliable pickup/dropout characteristics.
-
High Breakdown Resistance: Designed to withstand up to 2,100 Volts RMS.
-
Non-Reversing Operation: Simplified and secure motor control switching.
-
Vertical Mounting: Optimized for cabinet integration and cooling efficiency.
The 1379-NC360 contactor kit ensures durable and safe DC motor switching, suitable for heavy-duty industrial applications requiring reliable control and protection.
