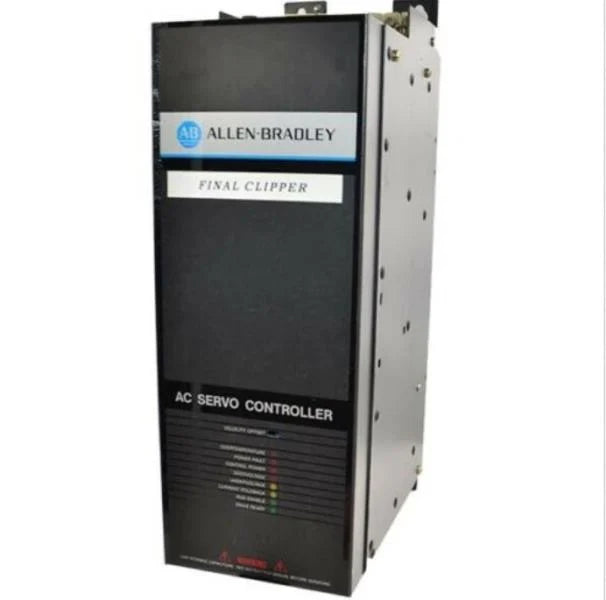

1391B-AA22 | Allen-Bradley AC Servo Drive 230V AC 0-200Hz
- Regular price
- $4,732.00
- Sale price
- $4,732.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1391B-AA22
Description
The Allen-Bradley 1391B-AA22 is a high-performance AC Servo Controller engineered for precise motor control in demanding industrial applications. With a continuous power rating of 7.5 kW and robust peak power handling, it provides reliable torque and speed control for automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Servo Products
|
| Part Number | 1391B-AA22 |
| Subcategory | Servo Drive/Servo Control |
| Series | B |
| Product Type | AC Servo Controller |
| Nominal Bus Output Voltage | 300V DC |
| Continuous Current(RMS) | 22.5A |
| Peak Current(RMS) | 45A |
| Continuous Power Output | 7.5 KW |
| Peak Power Output | 15 KW |
| Input Circuit Breaker Rating | 26A RMS |
| Circuit Breaker Interrupt Rating | 1300 A |
| Static Gain | 1.5x Rated Motor I/RPM |
| Weight | 28 lbs. |
Information About 1391B-AA22
The 1391B-AA22 is part of Allen-Bradley’s 1391 series of servo drives, designed for dynamic performance and seamless integration with industrial automation setups. It operates on a 3-phase 240 VAC input voltage and delivers a nominal bus output voltage of 300 VDC. With a continuous current rating of 22.5 A RMS and a peak current of 45 A RMS, it supports both steady-state and peak load demands with ease.
Key Features:
- Continuous and Peak Current Ratings: Handles 22.5 A RMS continuous and 45 A RMS peak current to support demanding servo applications.
- High Power Output: Delivers 7.5 kW continuous and 15 kW peak power, ensuring consistent performance under load.
- Nominal Bus Output Voltage: Supplies 300 VDC, supporting a wide range of compatible servo motors.
- Robust Safety Integration: Equipped with an input circuit breaker rated at 26 A RMS and 1300 A interrupt rating for enhanced protection.
- Static Gain Control: Features a static gain of 1.5x rated motor current per RPM for fine-tuned speed and torque management.
- Open Frame Design with Heatsink: Allows efficient heat dissipation in industrial control panel installations.
- Lightweight Construction: Weighs approximately 28 lbs, facilitating easy handling and installation.
- Standard Compliance: Meets industrial control standards for reliable global deployment.
- Versatile Applications: Suitable for precision automation, packaging, material handling, and CNC systems.
- Series B Designation: Provides compatibility with other Series B products for modular system integration.
The 1391B-AA22 offers high-performance servo drive capabilities with advanced safety and thermal features to meet a wide range of motion control needs.
