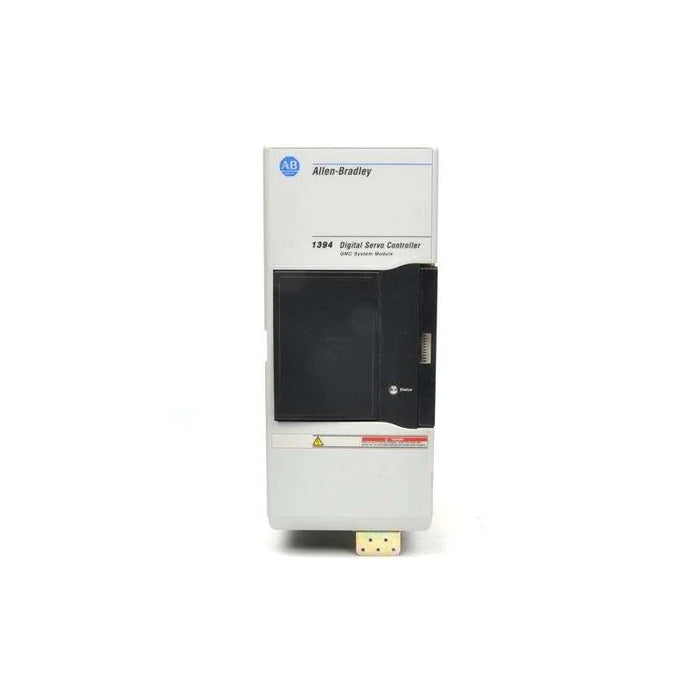

1394-SJT10-E | Allen-Bradley CNC Interface System Module, 380/460V AC, 10kW, Ser A
- Regular price
- $14,095.00
- Sale price
- $14,095.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1394-SJT10-E
Description
The Allen-Bradley Servo Controller 1394-SJT10-E is a System with 50-60 Hertz, a 10 Kilowatt Power Rating, and 360-480AC Volts Input Voltage.
Technical Specifications
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number | 1394-SJT10-E |
| Product Line | Servo Controller |
| Module Type | System |
| Power Rating | 10 Kilowatt |
| Input Phase | 3 Phase |
| Input Voltage | 50-60 Hertz |
| GMC Options | AxisLink and Remote I/O |
| Input Voltage | 360-480AC Volts |
| Efficiency | 98% |
|
Series |
A |
Information About 1394-SJT10-E
The 1394-SJT10-E servo controller is a CNC Interface system in the 1394 series. The 1394-SJT10-E controller by Allen-Bradley supplies a digital servo system that can be utilized with the 9/260 and the 9/290 CNC. The 1394-SJT10-E employs a digital interface which saves cost and time. The 1394-SJT10-E controller is fully equipped with an I/O fiber-optic ring that is fully interfaced and can be programmed with the CNC operator panel. The 1394-SJT10-E operates with an AC-rated input voltage of 324 to 528 Volts (three-phase, 50 to 60 Hertz), plus an input current of 13 Amps. The 1394-SJT10-E CNC interface system has a peak current of 1300 Amps, and a nominal output voltage of 530 to 680 Volts DC. The 1394-SJT10-E has a continuous power output of 8 to 10 kilowatts and an output power that can peak at 28 kilowatts. It can also operate with an efficiency of 99%. The continuous output current for the 1394-SJT10-E CNC interface system is 14.73 Amps and it can operate intermittently at 29.46 Amps.
The 1394-SJT10-E’s enclosure temperature spans between 0 and 50 degrees Celsius (32 and 122 degrees Fahrenheit), and the operational relative humidity revolves around 5% to 95%, non-condensing. The 1394-SJT10-E’s maximum operational shock rating can stand up to 15G, and it can also withstand a vibration of 1G. On standby, the 1394-SJT10-E will have a vibration of 2.5G and a shock rating 30G. The 1394-SJT10-E servo controller also comes with an inductance of 750 µH, and a system capacitance 330 µF. The 1394-SJT10-E has a percentage output power by dissipation power at 70 watts (20%), 77 watts (40%), 81 watts (60%), 84 watts (80%), and 98 watts (100%), and it weighs a total of 11 kilograms (24.25 pounds).
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
