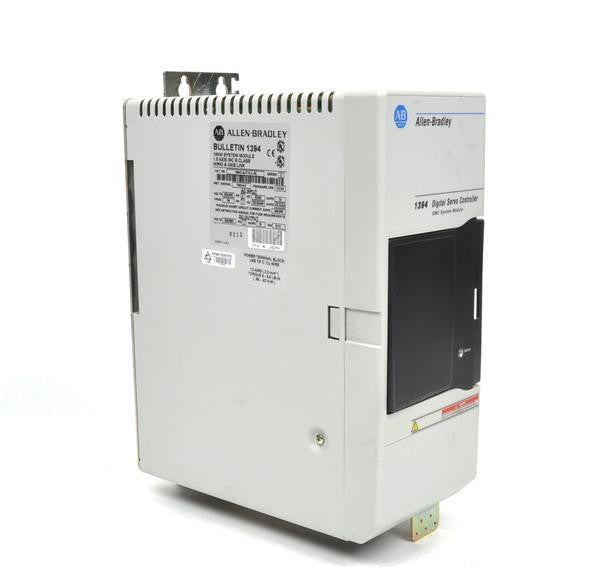

1394C-SJT05-L-RL | Allen-Bradley System Module
- Regular price
- $4,059.00
- Sale price
- $4,059.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: 1394C-SJT05-L-RL
Description
The Allen-Bradley 1394C-SJT05-L-RL System Module, part of the Bulletin 1394 series, is designed for industrial motion control applications. It operates with a 360/480V AC 50/60 Hz 3-phase input, supporting a peak output of 15A and delivering up to 5kW of power.
Key features include an IMC S Class Integrated Motion Controller, capable of supporting one axis and two auxiliary encoder inputs. The module is equipped with interfaces for Remote I/O and AxisLink, facilitating seamless communication and integration within complex automation systems.
Technical Specifications
|
Manufacturer |
Rockwell Automation |
|
Brand |
Allen-Bradley |
|
Part Number/Catalog No. |
1394C-SJT05-L-RL |
|
Product Line |
Servo Controller |
|
Module Type |
System |
|
Power Rating |
5 Kilowatt |
|
Input Phase |
3 Phase |
|
Series Enhancements |
Terminations, Filtering (EMI), and Smart Power |
|
Factory-Installed Options |
IMC S Class |
|
GMC Options |
AxisLink and Remote I/O |
|
Input Voltage |
360-480 AC Volts |
|
Nominal Bus Output Voltage |
380/460 Volts DC |
|
Continuous Power Output |
380/460 Volts: 4/5 Kilowatts |
|
Peak Power Output |
28 Kilowatts |
|
Efficiency |
99% |
|
Continuous Current Output |
7.36 Amperes |
|
Peak Current Output |
15.0 Amperes |
|
Line Loss Ride Through |
20 ms |
|
Rated AC Input Voltage |
324-528 Volts AC, 50-60 Hertz, 3 Phase |
|
AC Input Current |
6.5 Amperes |
Information About 1394C-SJT05-L-RL
The Allen-Bradley 1394C-SJT05-L-RL System Module, part of the Bulletin 1394 series, is designed as a robust servo controller for industrial applications requiring precise motion control. It operates on a 360/480V AC 50/60 Hz 3-phase input configuration, capable of handling peak output currents of up to 15A and providing a power rating of 5 kW.
Key features include an integrated IMC S Class (Integrated Motion Controller), which supports control for one primary axis and two auxiliary encoder inputs. This configuration enables sophisticated motion control capabilities suitable for complex automation tasks in industrial settings.
The module is equipped with interfaces for Remote I/O and AxisLink, facilitating seamless integration and communication within larger automation networks. This enhances flexibility and interoperability with other control systems and peripherals, supporting comprehensive industrial automation solutions.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
IQElectro is not an authorized distributor.
