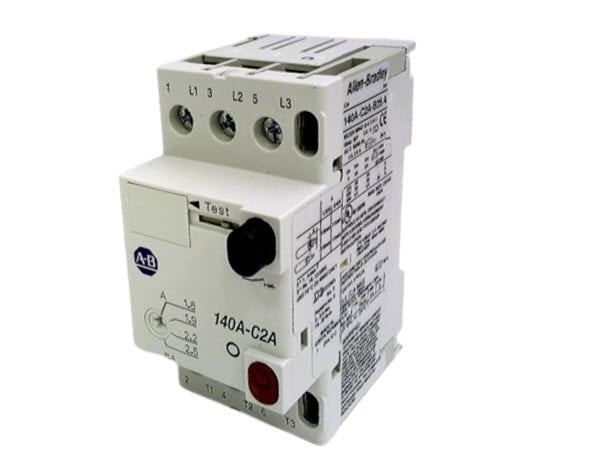

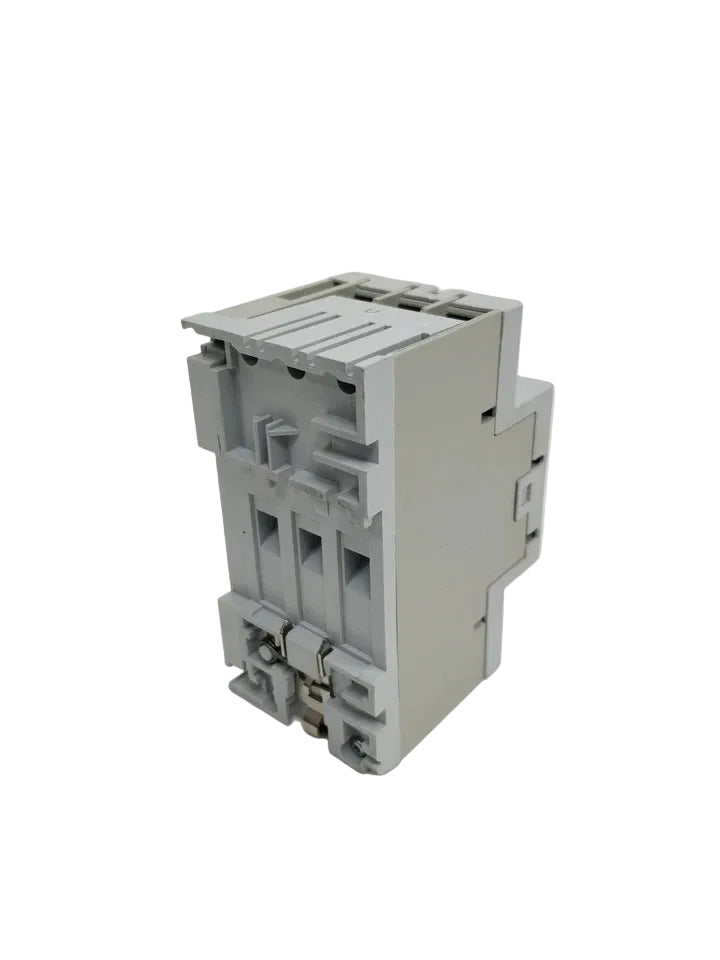

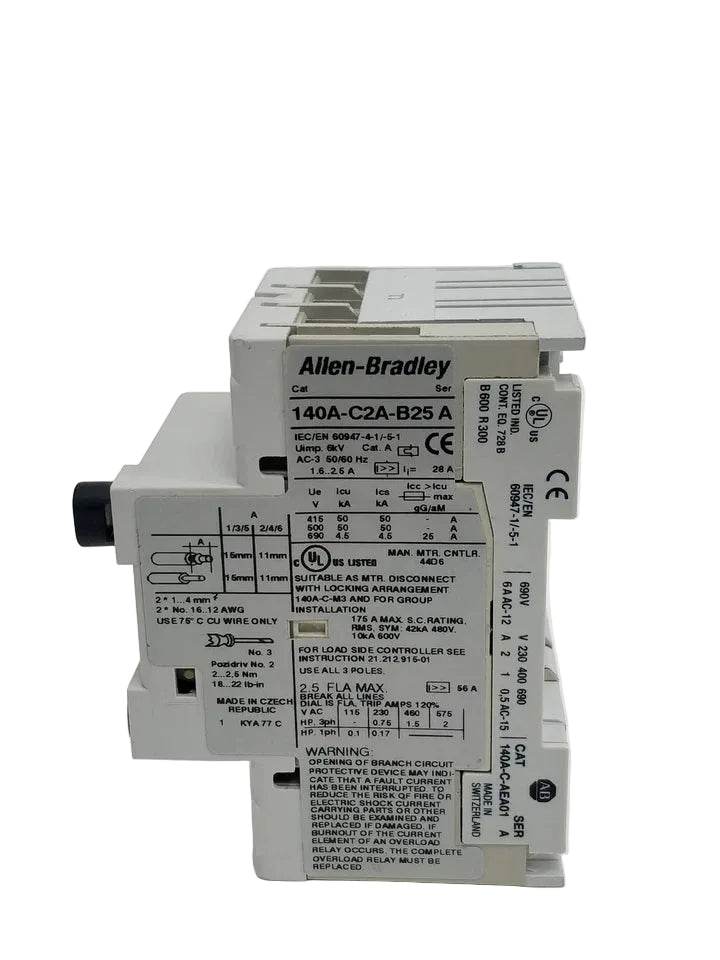

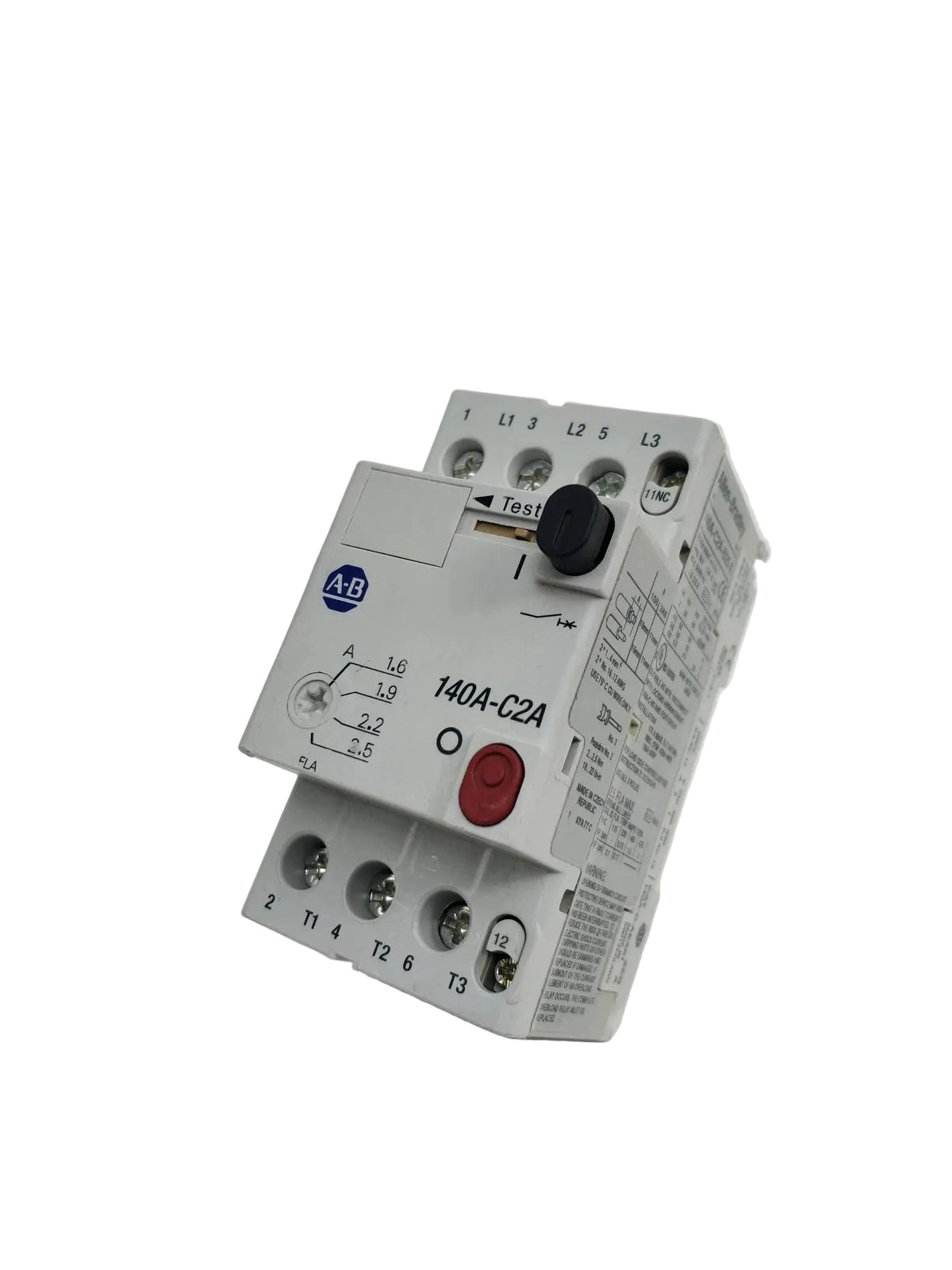

140A-C2A-B25 | Allen-Bradley Manual Motor Starter
- Regular price
- $325.00
- Sale price
- $325.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 140A-C2A-B25
Description
The Allen-Bradley 140A-C2A-B25 is a compact, 3-pole manual motor starter designed for reliable protection of three-phase motors.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Contactors & Starters
|
| Part Number | 140A-C2A-B25 |
| Subcatecory |
Starter
|
| Amperage | 1.6-2.5 Amp |
|
Current
|
1.6 - 2.5 A |
|
Power Rating
|
0.75 kW at 400 VAC-3 |
|
Standard
|
CE,CUL,KC,UL |
|
Type
|
Direct, 2-Hole |
|
Control Voltage
|
230 - 690 VAC at 50 Hz, 230 - 575 VAC at 60 Hz |
|
Number of Phases
|
3 Phase |
|
Reset Type
|
Manual |
|
Temperature Rating
|
60°C |
|
Weight
|
0.07 lbs |
Information About 140A-C2A-B25
The Allen-Bradley 140A-C2A-B25 is a compact and reliable manual motor starter designed to provide efficient overload and short-circuit protection for three-phase motors. It is ideal for industrial and commercial applications requiring robust motor control and protection within IEC standards.
Key Features:
- Type: Manual Motor Starter (MMS)
- Current Range: Adjustable thermal trip range from 1.6 to 2.5 A
- Voltage Rating: Up to 690 V AC
- Trip Characteristics:
-
Thermal overload protection with inverse time bimetallic trip
-
Magnetic short-circuit protection with fixed instantaneous trip at 11 times the set current
- Short-Circuit Coordination: Type 1 coordination, maximum fault current 5 kA
- Control Features: Push-button ON/OFF operation with TEST function
- Mounting: DIN rail compatible (EN 50 022-35)
- Dimensions: Approximately 88 mm (height) × 45 mm (width) × 60 mm (depth)
- Accessories & Compatibility: Side-mount auxiliary contacts; Undervoltage trip releases (various voltages); Shunt trip releases for remote tripping
- Supported Applications: Overload and short-circuit protection for IEC motor applications in industrial automation and control systems
- Standards Compliance: IEC/EN 60947-4-1 and related IEC motor protection standards
The Allen-Bradley 140A-C2A-B25 is a dependable solution for engineers and technicians seeking a compact, durable, and efficient manual motor starter with a wide range of accessories and solid performance in demanding industrial environments.
