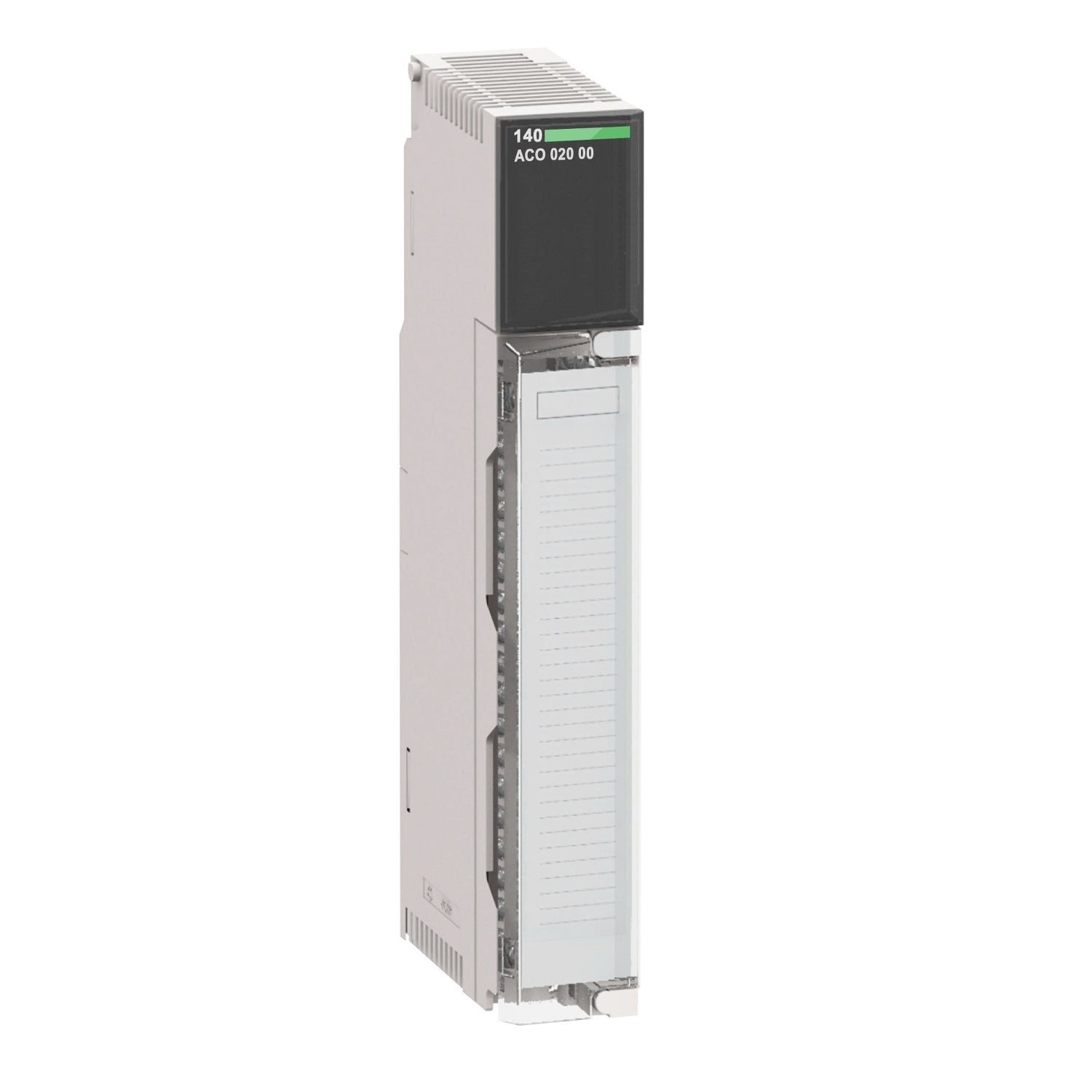

140ACO02000 | Schneider Electric Analog output module Modicon Quantum
- Regular price
- $427.00
- Sale price
- $427.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 140ACO02000
Description
The 140ACO02000 is an analog output module designed for the Modicon Quantum system. It features four output channels capable of producing a current range of 4 to 20 mA. With a resolution of 12 bits, this module supports bipolar current output.
Technical Specifications
|
Part # |
140ACO02000 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
MODICON |
|
Category |
PLCs/Machine Control |
|
Subcategory |
PLC Module/Rack |
|
Analogue output number |
4 |
|
Addressing requirement |
4 output words |
|
Loop voltage |
12…30 V DC |
|
Maximum voltage drop |
<30 V 20 mA |
|
Analogue output range |
4...20 mA 0...4096 counts, 12 bits bipolar current |
|
Absolute accuracy error |
+/- 0.20 % of full scale at 25 °C |
|
Linearity |
+/- 1 LSB |
|
Update time |
3 ms |
|
Setting time |
900 µs to +/- 0.1 % of the final value |
|
Fault type |
Open circuit 4...20 mA |
|
Bus current requirement |
480 mA |
|
Maximum power dissipation |
5.3 W |
|
External power requirement |
12...30 V |
|
Marking |
CE |
|
Module format |
Standard |
|
Net weight |
0.3 kg |
|
Resistance to electromagnetic fields |
10 V/m 80…2000 MHz conforming to IEC 801-3 |
|
Ambient air temperature for operation |
0…60 °C |
|
Ambient air temperature for storage |
-40…85 °C |
|
Relative humidity |
95 % without condensation |
|
Operating altitude |
<= 5000 m |
Information About 140ACO02000
The 140ACO02000 is an analog output module designed for the Modicon Quantum system. It provides four analog output channels capable of generating a 4 to 20 mA current signal with 12-bit resolution, offering precise control over connected devices. With its bipolar current capability, it ensures compatibility with various industrial equipment.
This module operates within a loop voltage range of 12 to 30 V DC and exhibits a maximum voltage drop of less than 30 V at 20 mA load. The analog output range spans from 4 to 20 mA, corresponding to 0 to 4096 counts, ensuring accurate representation of output values. It boasts an absolute accuracy error of +/- 0.20% of full scale at 25°C, ensuring reliability in demanding industrial environments.
Featuring a linearity of +/- 1 LSB (Least Significant Bit), the module delivers consistent and predictable output across its entire range. With a fast update time of 3 ms, it enables rapid adjustments to output values, enhancing control system responsiveness. The setting time for the module is 900 µs, ensuring precise and efficient control over connected devices.
In the event of a fault, such as an open circuit in the 4 to 20 mA loop, the module is designed to handle such situations effectively. It requires a bus current of 480 mA and exhibits a maximum power dissipation of 5.3 W, ensuring efficient utilization of power resources.
The module operates within a wide ambient air temperature range of 0 to 60°C during operation, making it suitable for deployment in various industrial settings. For storage purposes, it can withstand temperatures ranging from -40 to 85°C. With a relative humidity tolerance of 95% without condensation, it maintains optimal performance even in humid conditions.
