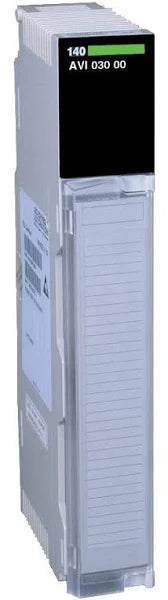

140AVI03000 | Schneider Electric Analog input module Modicon Quantum - 8 I multirange
- Regular price
- $1,599.00
- Sale price
- $1,599.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 140AVI03000
Description
The 140AVI03000 adheres to a standard module format, ensuring compatibility and ease of integration within existing systems and setups.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | 140AVI03000 |
| Analogue input number | 8 |
| Input type | Differential |
| Addressing requirement | 9 input words |
| Analogue input type | Unipolar voltage 0...5 V Unipolar voltage 0...10 V Unipolar current 0...20 mA Bipolar voltage +/- 5 V Bipolar voltage +/- 10 V Bipolar current 20 mA |
| Analogue input resolution | 16 bits 20 mA 16 bits 0...5 V 16 bits 0...20 mA 16 bits 0...10 V 16 bits +/- 5 V 16 bits +/- 10 V |
| Linear measuring range | (Input range) x 1.024 mA (Input range) x 1.024 V |
| Absolute maximum input | 50 V DC |
| Bus current requirement | 280 mA |
| Power dissipation in W | 2.2 W |
Information About 140AVI03000
Key Technical Specifications:
Analogue Input Number: 8
This module offers eight analogue input channels for versatile data acquisition.
Input Type: Differential
Employing differential input, it enhances signal integrity and noise immunity.
Addressing Requirement: 9 Input Words
To accommodate its various input channels, the module requires nine input words for addressing.
Analogue Input Types:
Unipolar Voltage 0...5 V
Unipolar Voltage 0...10 V
Unipolar Current 0...20 mA
Bipolar Voltage +/- 5 V
Bipolar Voltage +/- 10 V
Bipolar Current 20 mA
This extensive range of input types caters to diverse measurement needs.
Analogue Input Resolution: 16 Bits
With a 16-bit resolution, the module ensures high-precision data conversion for all supported input types.
Linear Measuring Range (Input Range):
Each input type boasts a linear measuring range adjusted as per the input range.
Absolute Maximum Input:
It can handle up to 50 V DC and 25 mA input, ensuring robust performance even under challenging conditions.
Input Impedance:
The module offers a high input impedance of 250 MOhm for voltage inputs, maintaining signal fidelity.
Accuracy and Linearity:
Accuracy is maintained with a low error of +/- 0.05% of full scale maximum, while linearity error is limited to +/- 0.008%.
Common Mode Rejection:
With a common mode rejection of > -80 dB at 60 Hz, it minimizes interference.
Isolation:
It provides substantial isolation, with 750 V DC between channels and the bus, and 135 Vrms AC/200 V DC between channels.
Update Time: 10 ms
This module ensures timely data processing with a fast 10 ms update time.
Fault Handling:
It efficiently detects overranging scale (1-5 V) and broken wire (4-20 mA) faults.
Bus Communication:
The module features local signaling with eight red LEDs indicating channel faults, eight green LEDs for active channels, and LEDs for external faults and bus communication presence.
Bus Current Requirement: 280 mA
It has a moderate bus current requirement of 280 mA.
Power Dissipation:
The module's power dissipation is not specified in the provided information.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
Description
The 140AVI03000 adheres to a standard module format, ensuring compatibility and ease of integration within existing systems and setups.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | 140AVI03000 |
| Analogue input number | 8 |
| Input type | Differential |
| Addressing requirement | 9 input words |
| Analogue input type | Unipolar voltage 0...5 V Unipolar voltage 0...10 V Unipolar current 0...20 mA Bipolar voltage +/- 5 V Bipolar voltage +/- 10 V Bipolar current 20 mA |
| Analogue input resolution | 16 bits 20 mA 16 bits 0...5 V 16 bits 0...20 mA 16 bits 0...10 V 16 bits +/- 5 V 16 bits +/- 10 V |
| Linear measuring range | (Input range) x 1.024 mA (Input range) x 1.024 V |
| Absolute maximum input | 50 V DC |
| Bus current requirement | 280 mA |
| Power dissipation in W | 2.2 W |
Information About 140AVI03000
Key Technical Specifications:
Analogue Input Number: 8
This module offers eight analogue input channels for versatile data acquisition.
Input Type: Differential
Employing differential input, it enhances signal integrity and noise immunity.
Addressing Requirement: 9 Input Words
To accommodate its various input channels, the module requires nine input words for addressing.
Analogue Input Types:
Unipolar Voltage 0...5 V
Unipolar Voltage 0...10 V
Unipolar Current 0...20 mA
Bipolar Voltage +/- 5 V
Bipolar Voltage +/- 10 V
Bipolar Current 20 mA
This extensive range of input types caters to diverse measurement needs.
Analogue Input Resolution: 16 Bits
With a 16-bit resolution, the module ensures high-precision data conversion for all supported input types.
Linear Measuring Range (Input Range):
Each input type boasts a linear measuring range adjusted as per the input range.
Absolute Maximum Input:
It can handle up to 50 V DC and 25 mA input, ensuring robust performance even under challenging conditions.
Input Impedance:
The module offers a high input impedance of 250 MOhm for voltage inputs, maintaining signal fidelity.
Accuracy and Linearity:
Accuracy is maintained with a low error of +/- 0.05% of full scale maximum, while linearity error is limited to +/- 0.008%.
Common Mode Rejection:
With a common mode rejection of > -80 dB at 60 Hz, it minimizes interference.
Isolation:
It provides substantial isolation, with 750 V DC between channels and the bus, and 135 Vrms AC/200 V DC between channels.
Update Time: 10 ms
This module ensures timely data processing with a fast 10 ms update time.
Fault Handling:
It efficiently detects overranging scale (1-5 V) and broken wire (4-20 mA) faults.
Bus Communication:
The module features local signaling with eight red LEDs indicating channel faults, eight green LEDs for active channels, and LEDs for external faults and bus communication presence.
Bus Current Requirement: 280 mA
It has a moderate bus current requirement of 280 mA.
Power Dissipation:
The module's power dissipation is not specified in the provided information.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
