140CPS22400 | Schneider Electric Power supply module Modicon Quantum - 24 V DC 20..30 V - redundant

Description

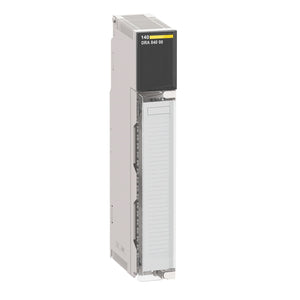

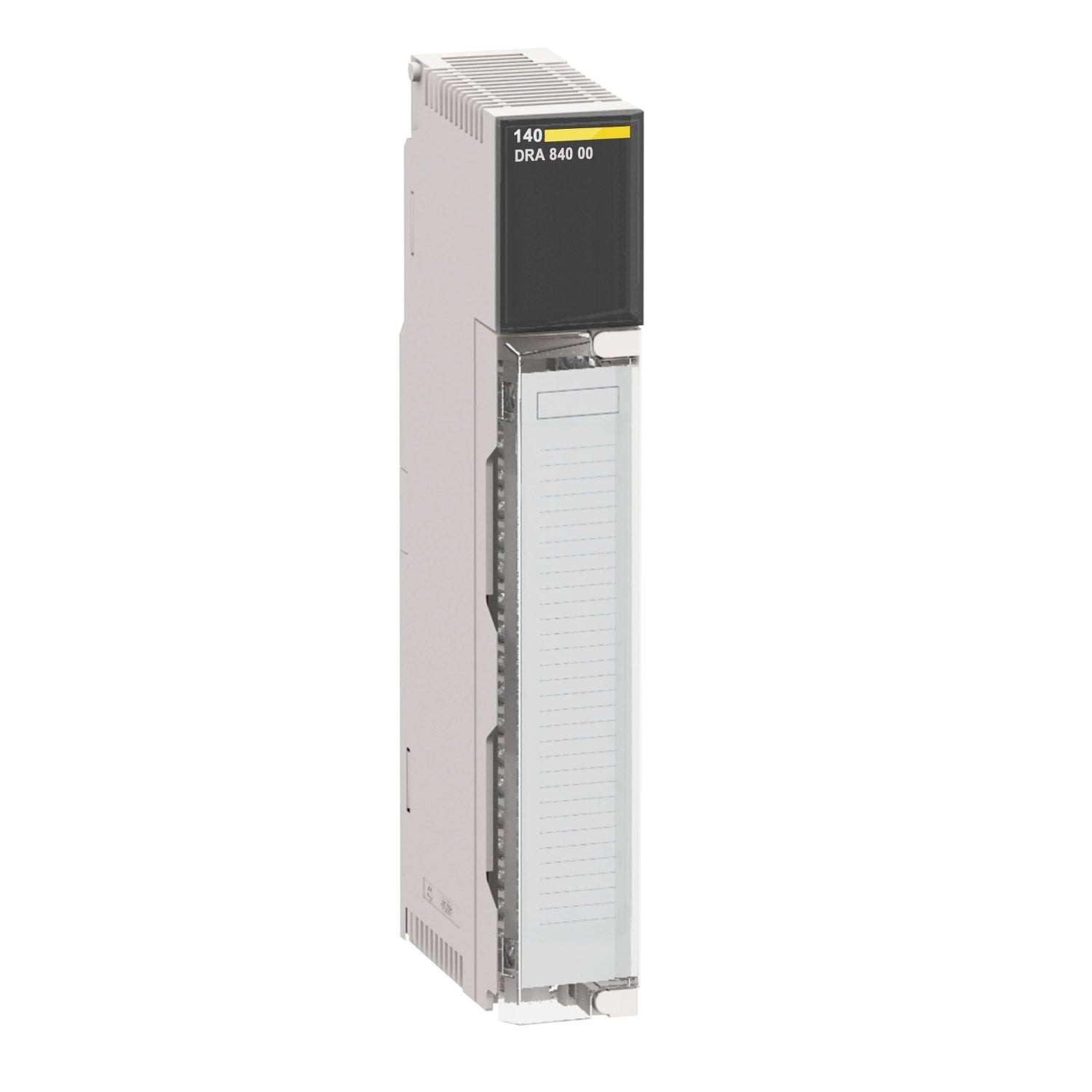

This SCHNEIDER power supply reference 140CPS22400 is part of the MODICON QUANTUM range.
140CPS22400: 24 Vdc, 8A, Cumulative.

Technical Specifications

Information About 140CPS22400

The 140CPS22400 stands as a critical component within the Modicon Quantum automation platform, specifically designed as a redundant power supply module. This module ensures a reliable and uninterrupted power source, operating at 24 V DC with a broad input voltage range of 20 to 30 V.

Power Characteristics for the Schneider Electric
As a redundant power supply module, the 140CPS22400 exhibits robust power capabilities. It operates with an input voltage of 24 V DC, drawing an input current of 3800 mA. The inrush current, crucial during start-up, ranges from 14 A at 20 V to 25 A at 24 V. In the event of a power interruption lasting 100 ms, the module can sustain an inrush current of 14 A at 20 V for 1 ms. The associated fuse rating is set at 5 A with a slow-blow characteristic.

Power Supply Output Specifications
The power supply module delivers a stable output voltage of 5.1 V DC, with a redundant output current capability of 8 A. Internal safeguards include output overvoltage protection, ensuring the longevity and reliability of connected systems. The module dissipates power efficiently, with a formula of 6 + (1.8 x Iout), where Iout represents the output current in amperes.

Safety and Signaling within the Modicon 140CPS22400
Safety features include an alarm output in the form of 1 NC (Normally Closed) relay with a 6 A capacity, signaling a 220 V power supply fault. Local signaling for power (PWR OK) is facilitated through a green LED, providing instant visual feedback on the module's operational status.

Environmental Compliance
Adhering to stringent environmental standards, the 140CPS22400 holds certifications such as UL 508, CSA C22.2 No 142, FM Class 1 Division 2, and cUL. It boasts resistance to electrostatic discharge, with ratings of 4 kV contact and 8 kV on air according to IEC 801-2. Additionally, the module demonstrates resilience against electromagnetic fields with a rating of 9.14 V/m (10 V/m) from 80 to 2000 MHz, by IEC 801-3. Operational temperatures range from 32 to 140 °F (0 to 60 °C), with a storage temperature span of -40 to 185 °F (-40 to 85 °C). The module maintains relative humidity levels at 95% without condensation and is capable of operating at altitudes up to 16404.2 ft (5000 m).

Sustainability and Compliance
The 140CPS22400 is not just a powerhouse; it's also environmentally responsible. Proactively compliant with the EU RoHS Directive and declared mercury-free, it aligns with global environmental regulations. The module is also in compliance with China RoHS regulations, providing exemption information and offering a detailed circularity profile for end-of-life disposal in line with WEEE regulations.

Conclusion
The 140CPS22400 is not just a power supply; it's a testament to Schneider Electric's commitment to providing advanced, reliable, and environmentally conscious solutions. With its redundant power capabilities, safety features, and adherence to global standards, the module serves as a cornerstone in ensuring the seamless operation of critical systems within the Modicon Quantum automation platform.
