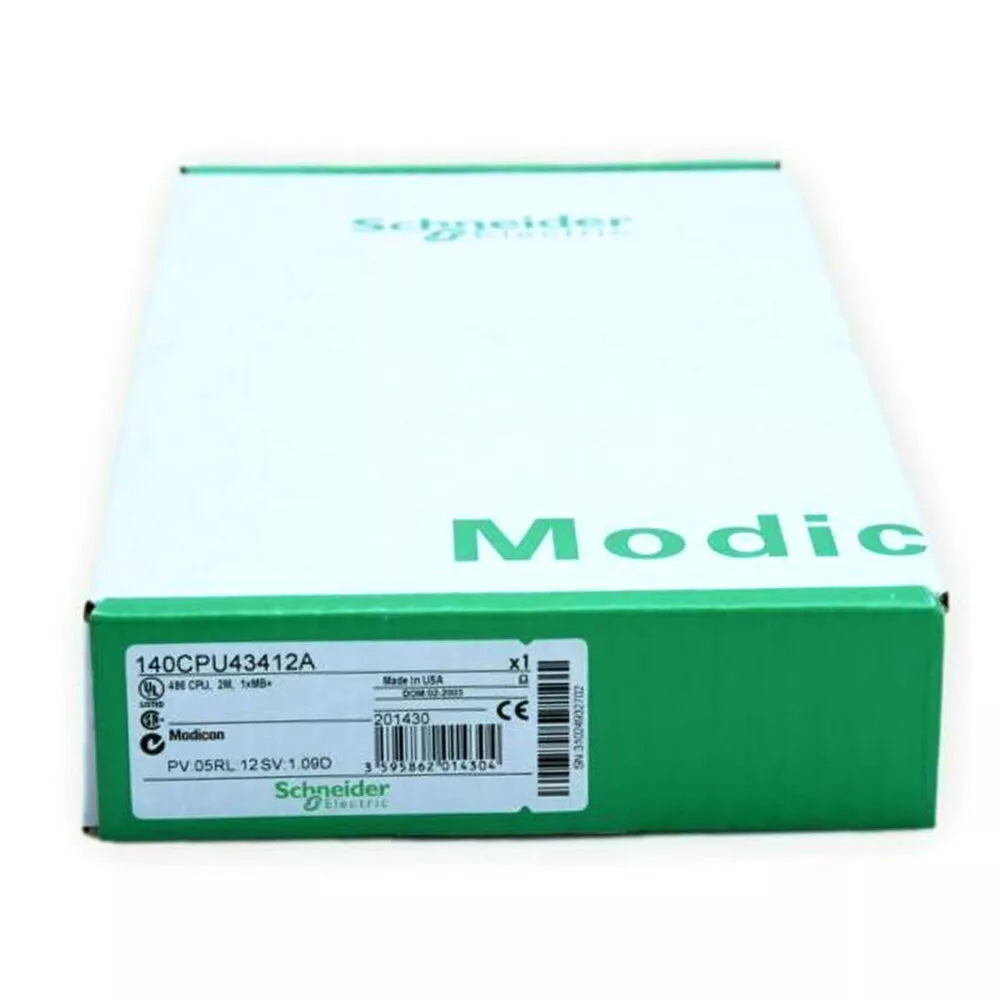

140CPU43412A | Schneider Electric Modicon Quantum 66 MHz Processor, 896 kB RAM
- Regular price
- $995.00
- Sale price
- $995.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 140CPU43412A
Description
The Schneider Electric 140CPU43412A is a high-performance processor module for the Modicon Quantum automation platform, built to manage demanding industrial control tasks. Featuring an 80486 CPU running at 66 MHz, it provides fast execution of automation programs using Concept or ProWORX 32 software. With 896 kB of internal RAM, it supports complex logic, extensive I/O handling, and reliable system operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | CPUs |
| Part Number | 140CPU43412A |
| Subcategory | Modicon Quantum Processor |
| Range of Product | Modicon Quantum |
| Processor Type | 80486 with mathematical coprocessor |
| Clock Frequency | 66 MHz |
| Memory | 896 kB internal RAM |
| Supported Software | Concept, ProWORX 32 |
| Instruction Execution Time | 0.1–0.5 ms per 1 K LL984 instructions |
| Watchdog Timer | 250 ms |
| Clock Drift | ±8 s/day (0…60 °C) |
| I/O Capacity (Remote) | 64 IN / 64 OUT |
| I/O Capacity (Local) | 64 IN / 64 OUT |
| Distributed I/O | 30 IN / 32 OUT |
| I/O Words/Network | 500 IN / 500 OUT |
| Networks Supported | 3 distributed, 2 remote |
| Number of Drops | 31 remote, 63 distributed |
| Communication Ports | 2 × Modbus RS232, 1 × Modbus Plus |
| Compatible Communication Modules | NOM, NOE, CR, NMS |
| Battery Type/Capacity | Lithium, 1.2 Ah |
| Battery Life | Up to 10 years |
| Bus Current Requirement | 1250 mA |
| Module Format | Standard Quantum |
| Switch Function | Key switch |
| Marking | CE |
| Operating Temperature | 0…60 °C |
| Installation | Quantum rack/chassis |
Information About 140CPU43412A
The 140CPU43412A is a Modicon Quantum processor designed to deliver deterministic control and high-speed execution within large-scale automation architectures. Its 80486 processor architecture and 66 MHz clock enable rapid instruction processing, supporting sophisticated logic and time-critical automation tasks. The module integrates flexible I/O handling, including local, remote, and distributed configurations, allowing it to scale across complex networks. Designed for Quantum backplane systems, it offers robust communication via dual Modbus RS232 ports and a Modbus Plus port, making it effective for multisystem integration and supervisory control.
Key Features:
- 80486 66 MHz CPU: Fast instruction execution for industrial control tasks.
- 896 kB internal RAM: Supports large user programs and data structures.
- Multi-protocol communication: Includes Modbus RS232 and Modbus Plus ports.
- Flexible I/O architecture: Supports local, remote, and distributed I/O configurations.
- Integrated watchdog timer: 250 ms timeout enhances system reliability.
- Long-life lithium backup battery: Preserves memory and configuration up to 10 years.
- CE-marked design: Compliant with industrial safety and EMC standards.
- Compatible software tools: Configurable via Concept and ProWORX 32.
The 140CPU43412A delivers the reliability and precision required for high-performance process control in complex automation systems.
