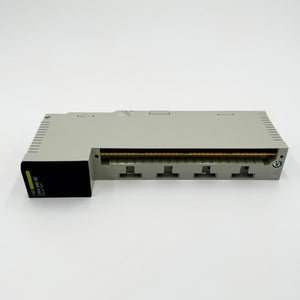

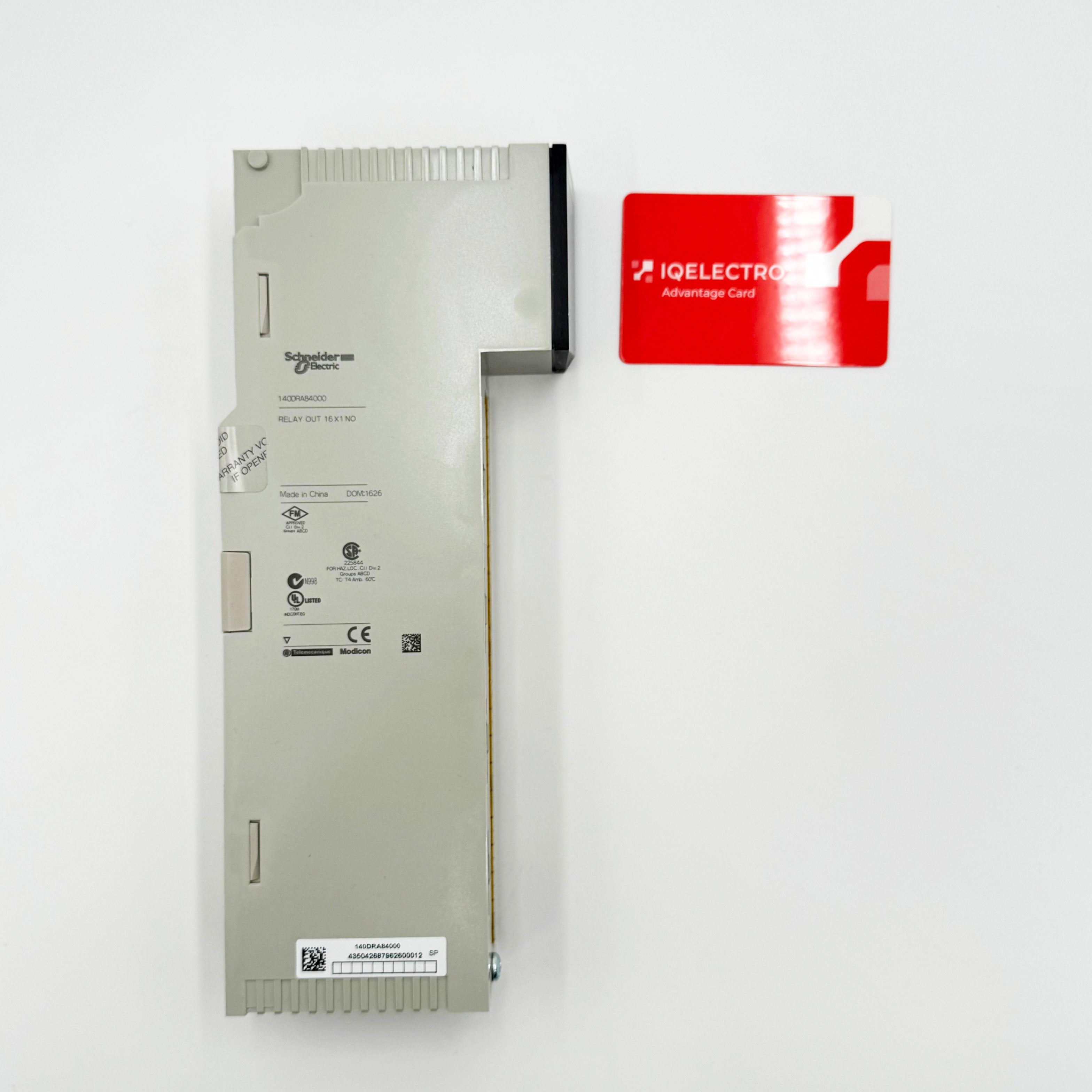

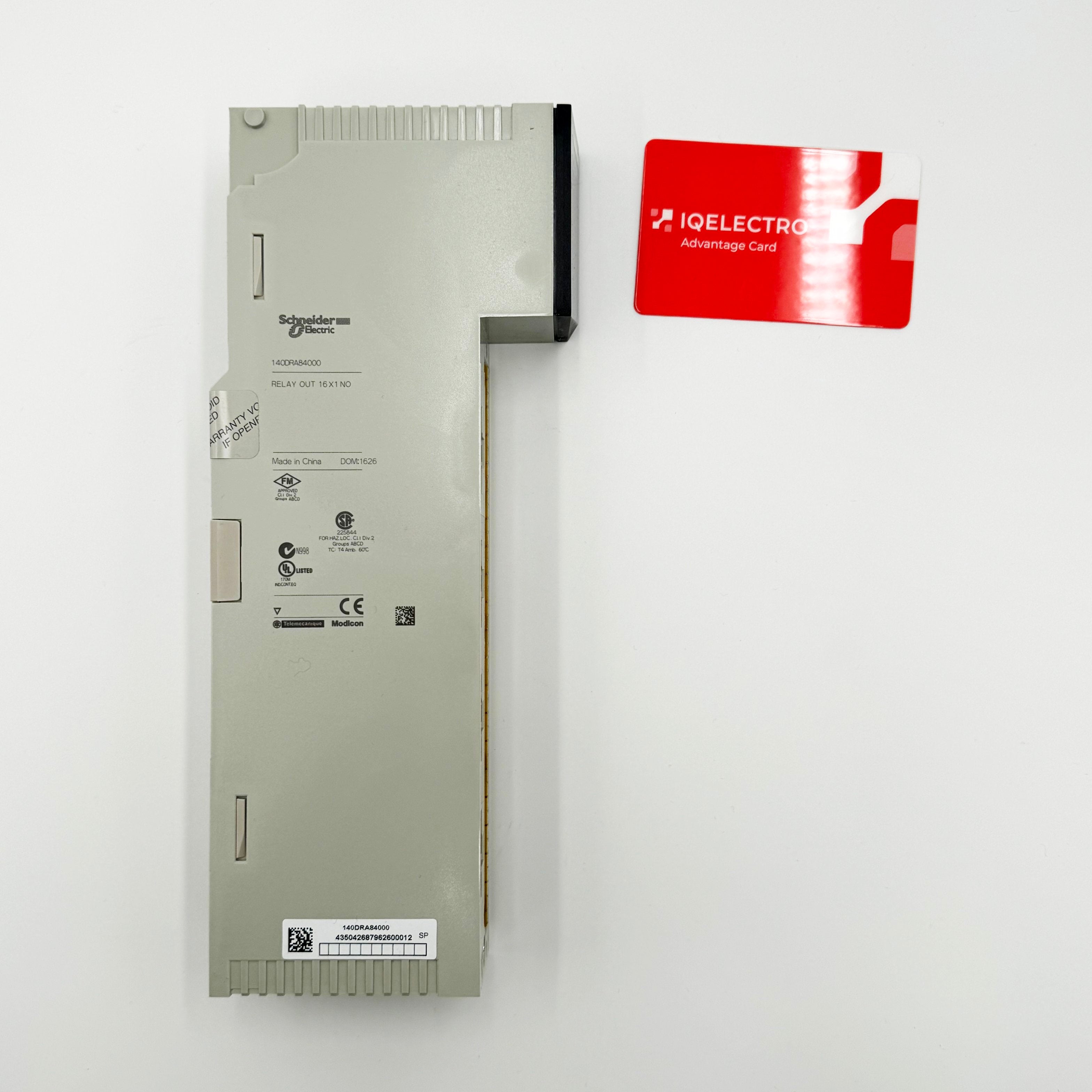

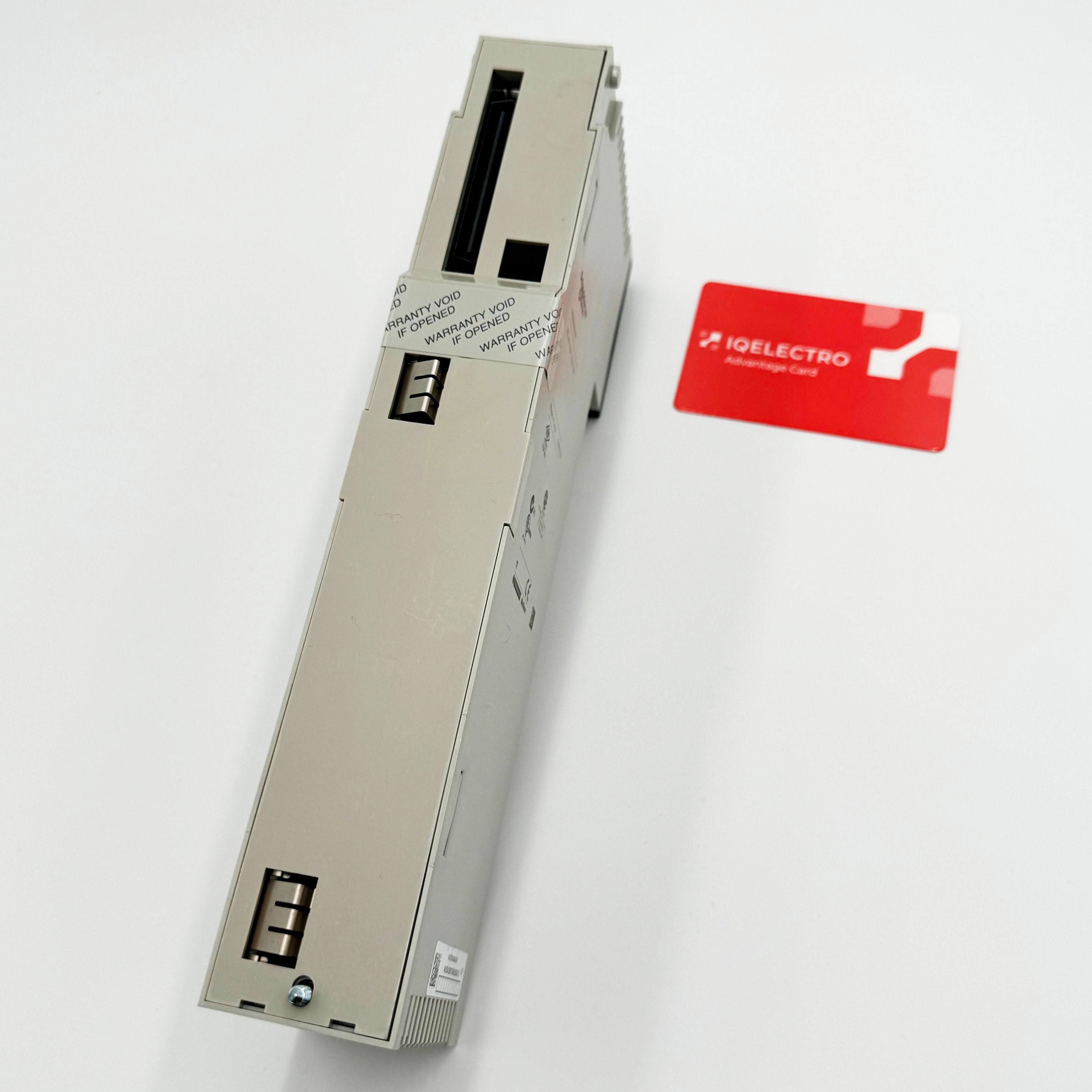

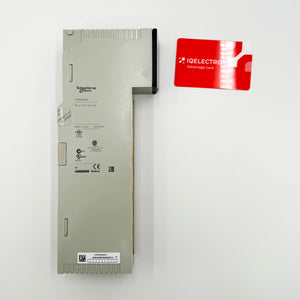

140DRA84000 | Schneider Electric Discrete output module Modicon Quantum - 16

Regular price
$369.00
Sale price
$369.00
Regular price
Never Used Surplus
140 in Stock
Shipping calculated at checkout.
Product Overview
AC/DC digital output module - Schneider Electric / Modicon (Modicon Quantum series) - 16I/Os [16DO (16 x digital outputs (...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 140DRA84000
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
140DRA84000 | Schneider Electric Discrete output module Modicon Quantum - 16
    140DRA84000 | Schneider Electric Discrete output module Modicon Quantum - 16
140DRA84000 | Schneider Electric Discrete output module Modicon Quantum - 16
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 140DRA84000

Description / Specifications

Description

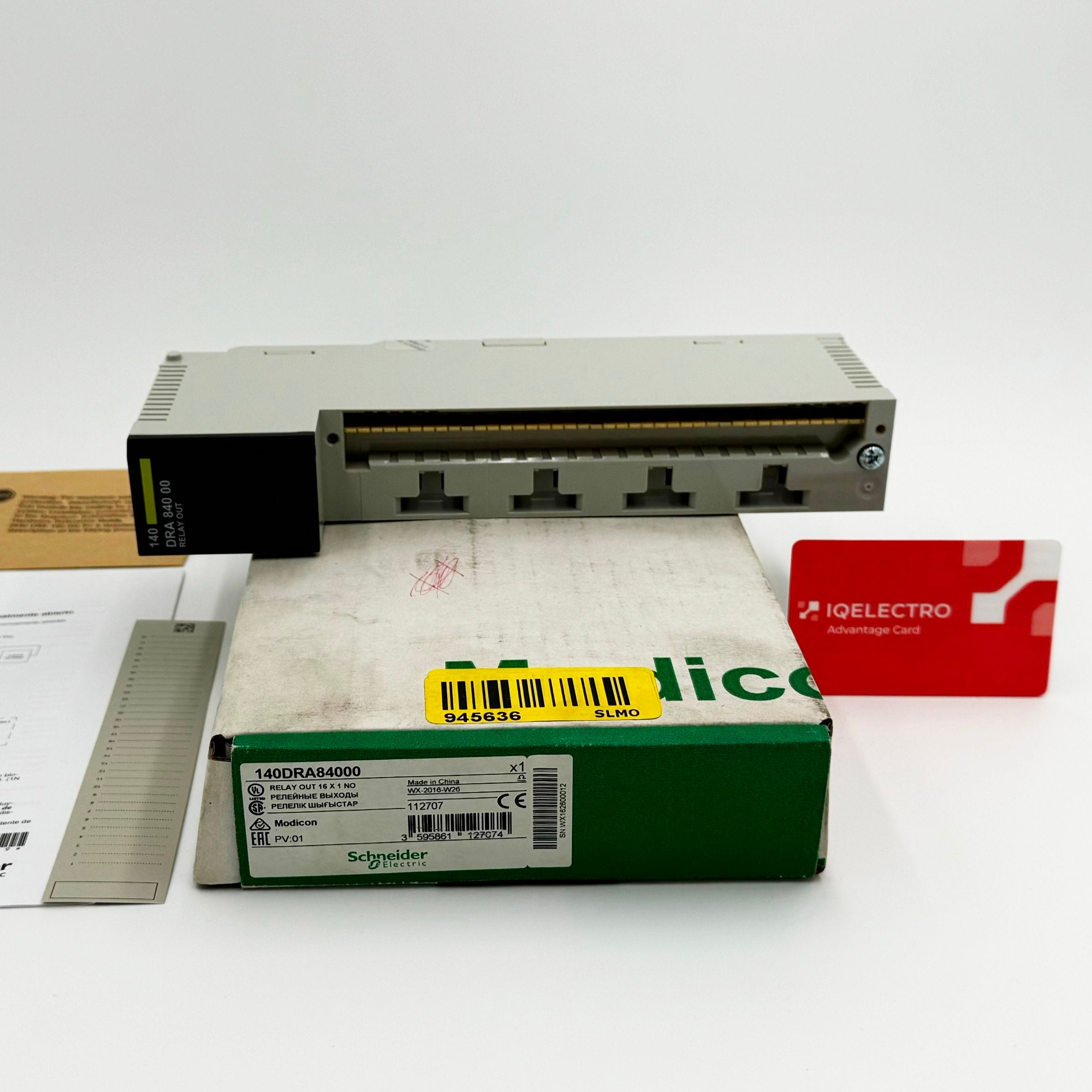

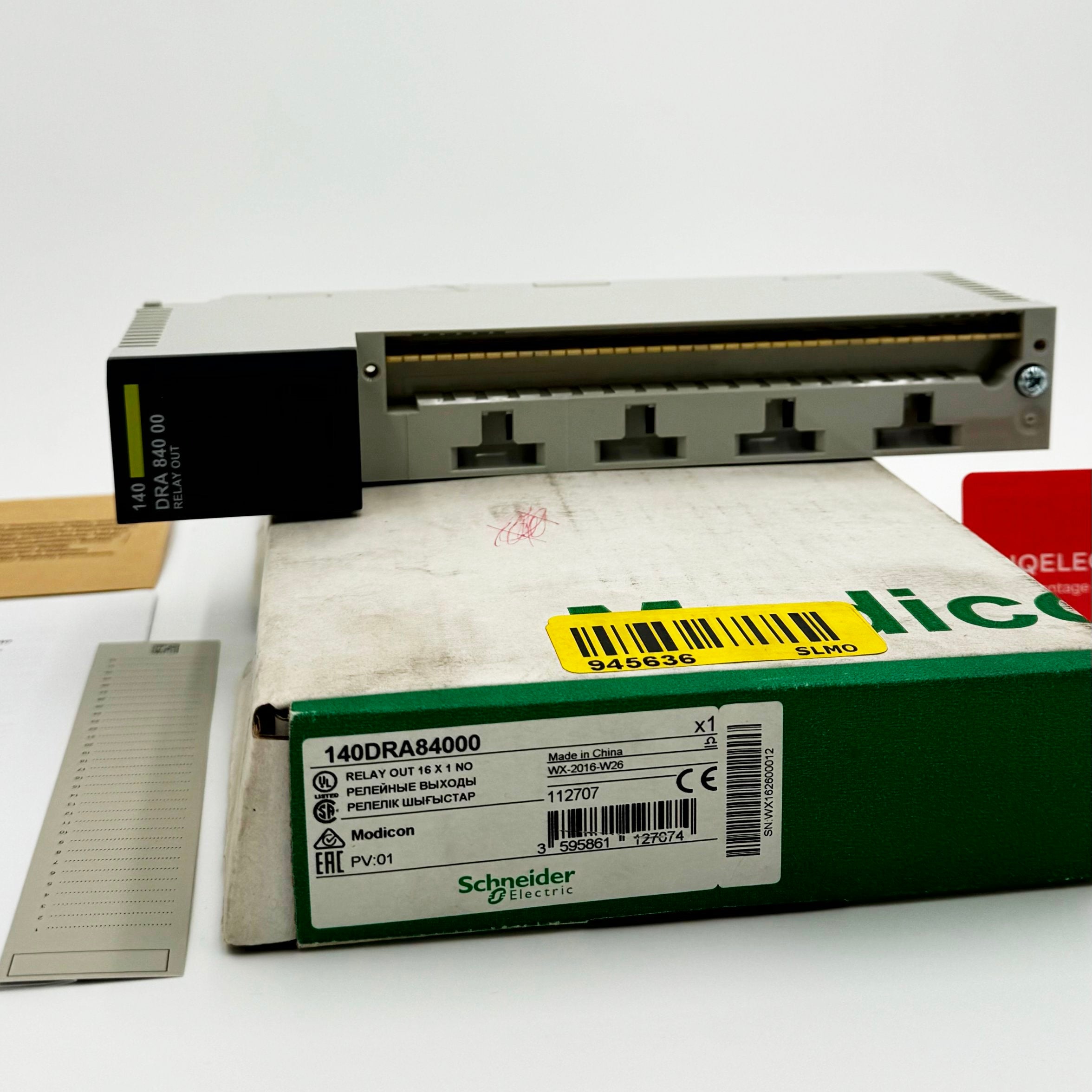

The Modicon 140 DRA 84 000 16-point output module is manufactured by Schneider Electric for use on the Modicon Quantum platform. The 140DRA84000 is a relay output 16 x 1 normally open module that consists of a standard module format, weighs less than one pound, and has a bus current requirement of 1,110 mA. It also has a 10 A, 10 ms surge capacity and the switching capacity in VA is 500 VA resistant.



Technical Specifications



Brand Schneider Electric
Part Number 140DRA84000
Type I/O Modules
Product or component type Relay discrete output module
Discrete output number 16
Contacts type and composition 1 NO
Contact form Form A
Discrete output voltage 5...30 V DC
30...150 V DC
20...250 V AC
Addressing requirement 1 output word
Minimum load >= 50 mA 5...30 V DC
>= 50 mA 20...250 V AC
Maximum load current 300 mA 30...50 V DC resistive
2 A 250/30 V AC/DC resistive at 60 °C
1 A 250/30 V AC/DC tungsten
1 A 250/30 V AC/DC 1/8 hp cos phi = 0.4
Surge current <= 10 A for 10 ms capacitive
Switching capacity in VA 500 VA resistive
Response time on input opening <= 20 ms at state 1 to state 0
<= 10 ms at state 0 to state 1
Mechanical durability 10000000 cycles
Electrical durability 50000 cycles 500 mA 30...150 V DC resistive
200000 cycles 2 A 250 V AC resistive
100000 cycles 300 mA 30...150 V DC resistive
100000 cycles 30...150 V DC interposing relay
100000 cycles 2 A 30 V DC resistive
100000 cycles 100 mA 30...150 V DC L/R = 10 ms
Output overvoltage protection Internal by varistor, 275 V
Isolation between channels 1780 Vrms AC for 1 minute
Isolation between channels and bus 2500 V DC for 1 minute
1780 Vrms AC for 1 minute
Power dissipation 5.5 W + (0.5 x the number of points on)
Marking CE
Local signalling 16 LEDs green input status
1 LED red external fault detected (F)
1 LED green bus communication is present (Active)
Bus current requirement 1100 mA





Information About 140DRA84000

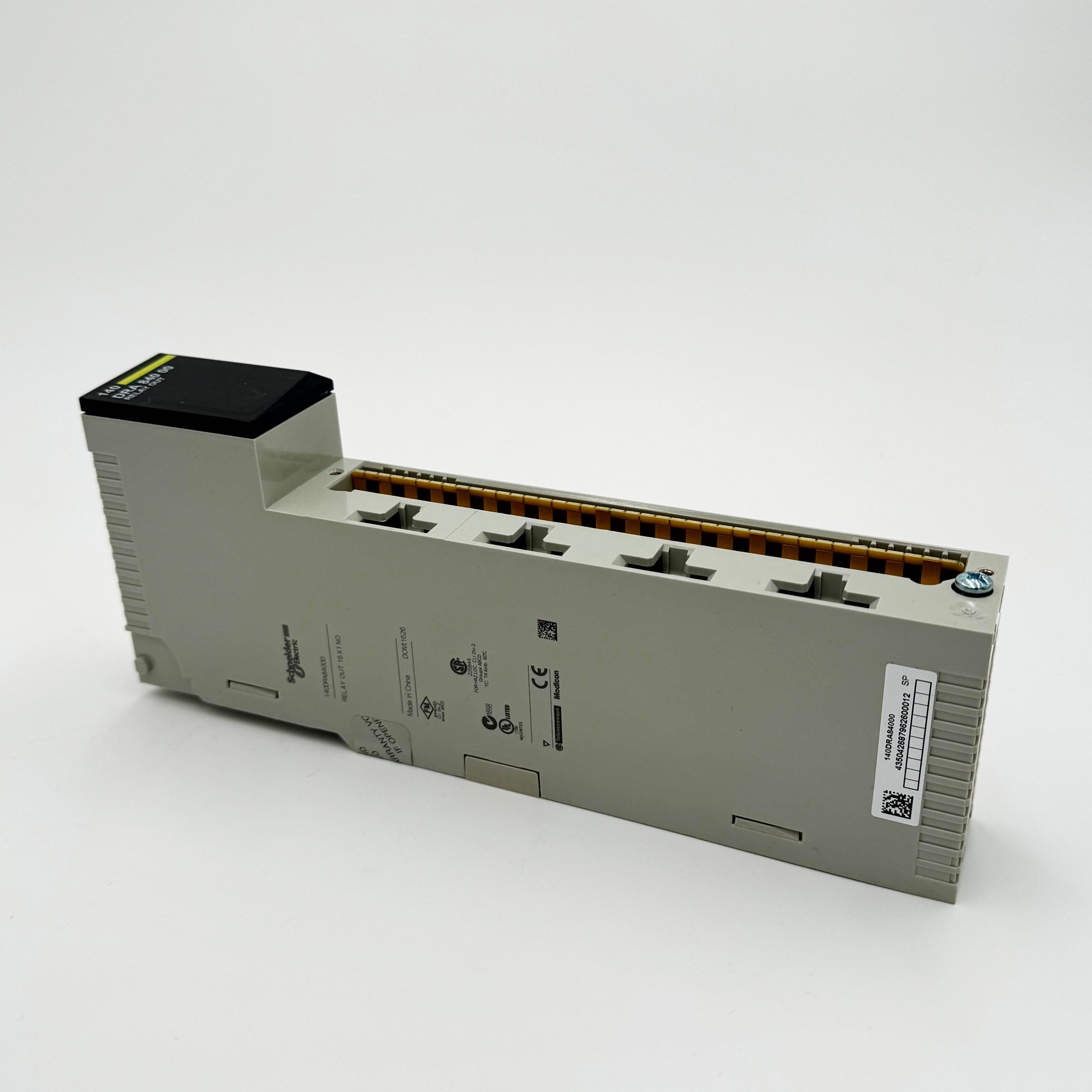

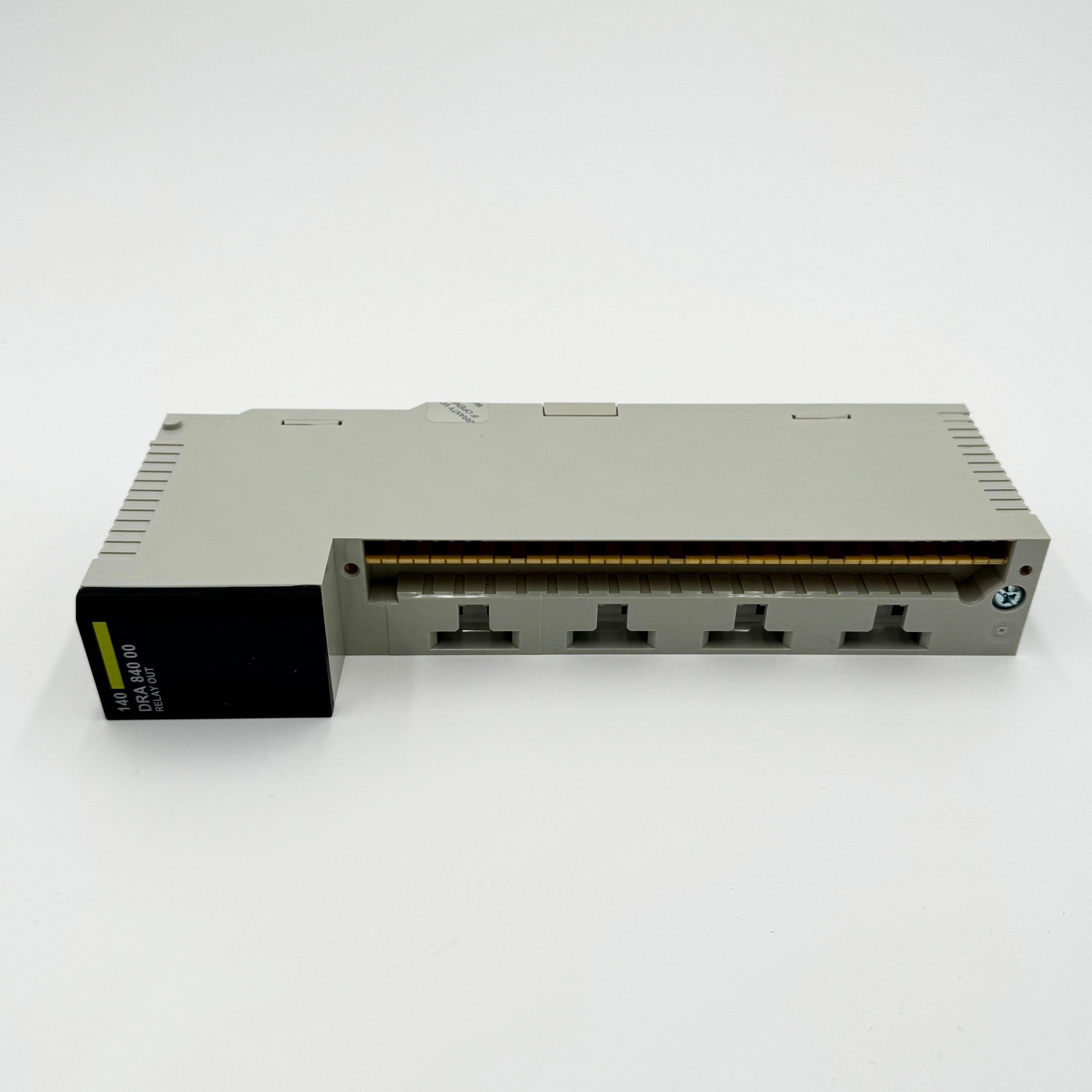

The Modicon 140 DRA 84 000 features an LED that displays green when in operation. The LED indicates green for channels one through sixteen when the channel is active. On the front of the 140 DRA 84 000 above the LED is the area where you can identify the model number, the model description, and the color code of the model. Beneath the LED on the front panel of the 140 DRA 84 000 relay module is the fuse cutout area. Directly below the fuse cutout area is the field wiring terminal strip. The wiring for relay common one through sixteen is located down the left front of the module and the output one through sixteen is located down the right front of the Modicon 140 DRA 84 000 modules.

The max load current for each point is 2 Amps per point maximum at 250 VAC, 30 VDC at 60 deg C ambient. 1 A Tungsten lamp load 1 A @ a power factor of 0.4 1/8 hp @ 125 / 250 VAC. The max load current for each point at 30 ... 150 VDC is 300 mA (restive load) 100 mA (L/R = 10 msec). The max load current (surge current) is 10 A capacitive load @ t = 10 ms.

When working with potentially harmful, hazardous, or toxic equipment, personal and environmental safety are of the utmost importance. Taking this into account, the 140 DRA 84 000, along with other modules from this line, is available in a conformal coated version, 140 DRA 84 000C. This relay discrete output module also meets the extensive requirement standards of a wide range of agencies, including the following:

UL 508

CSA 22.2-142

C-UL

Factory Mutual Class I, Division II

CE

CSA Class I, Division II

The Schneider Electric 140 DRA 84 000 module has C-Tick, GOST, and ABS certifications.
