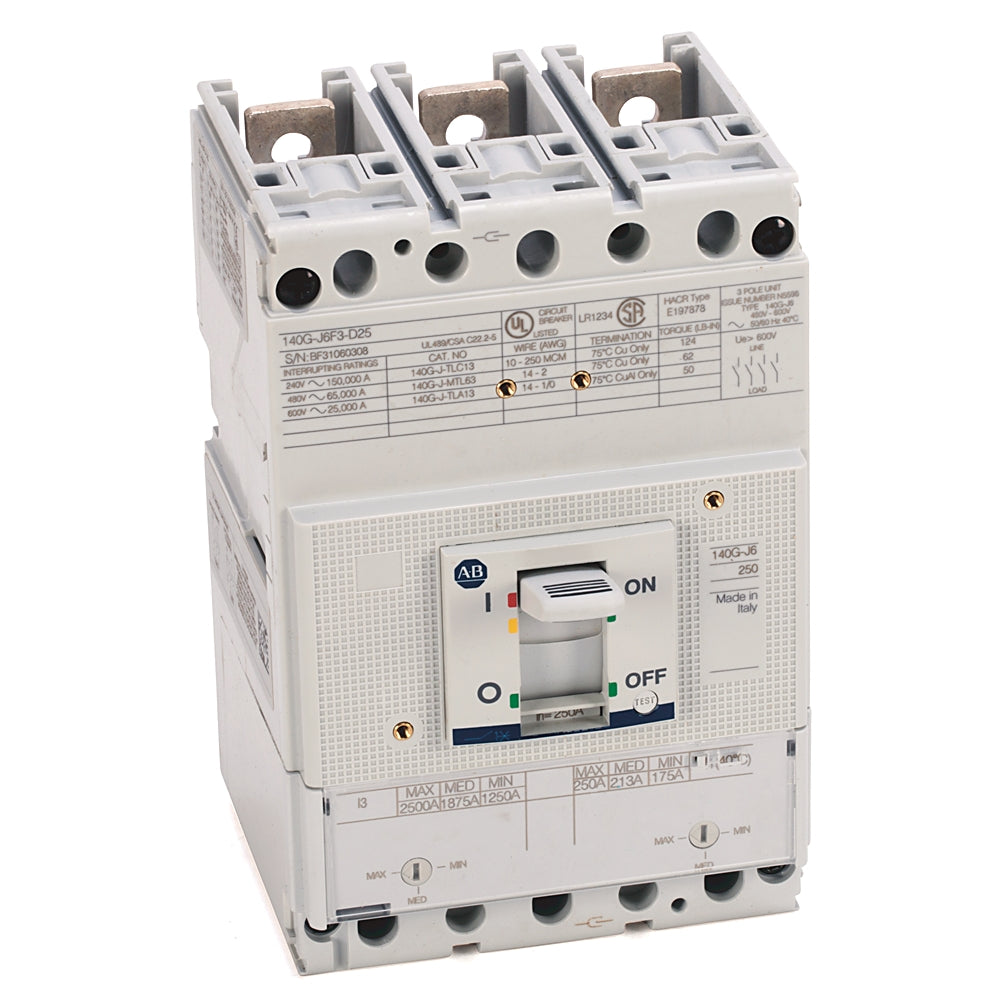

140G-J6F3-D20 | Allen Bradley Molded Case Circuit Breaker J Frame
- Regular price
- $7,312.50
- Sale price
- $7,312.50
- Regular price
-
$8,125.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 140G-J6F3-D20
Description
The Allen-Bradley 140G-J6F3-D20 is a molded case circuit breaker from the Bulletin 140G series, featuring a Size J frame with adjustable thermal and magnetic tripping. It offers a thermal trip range of 140-200 Amps and a magnetic trip range of 1000-2000 Amps, providing robust circuit protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen Bradley |
| Category | Circuit Breakers |
| Part Number |
140G-J6F3-D20 |
| Subcategory | Molded Case Circuit Breakers |
| Frame | J |
| Amps | 250 |
| Interrupting Rating | 65 kA |
| Protection Type | Adjust Thermal/ Adjust Magnetic |
| Current Range | 200 A |
| Rated Insulation Voltage | 1000V |
| Rated Impulse Withstand Voltage | 8 kV |
| Mechanical Life | 240 Operations/hr. |
Information About 140G-J6F3-D20
The 140G-J6F3-D20 molded case circuit breaker is designed for flexibility and reliable performance in industrial applications. With a 250 Amp frame and adjustable trip settings, it allows precise customization to meet specific protection requirements. It features a high interrupting rating of 65 kA, ensuring effective fault current handling. Rated for 1000V insulation and 8 kV impulse withstand voltage, this breaker provides safe and efficient operation in demanding environments. Its 3-pole design and DIN rail mounting capability allow for easy installation in various orientations, while its temperature range of 32-104°F ensures consistent performance under standard operating conditions.
Key Features:
- Frame Size: Size J frame for durability and versatility.
- Thermal Trip Range: Adjustable from 140 to 200 Amps.
- Magnetic Trip Range: Adjustable from 1000 to 2000 Amps.
- Interrupting Rating: Rated at 65 kA for high fault current protection.
- Voltage Ratings:
- Insulation voltage: 1000V.
- Impulse withstand voltage: 8 kV.
- Mounting Options: Supports DIN rail mounting and multiple orientations.
- Poles: 3-pole design for versatile application support.
The Allen-Bradley 140G-J6F3-D20 molded case circuit breaker provides adjustable protection and high performance, making it a reliable solution for industrial power systems.
