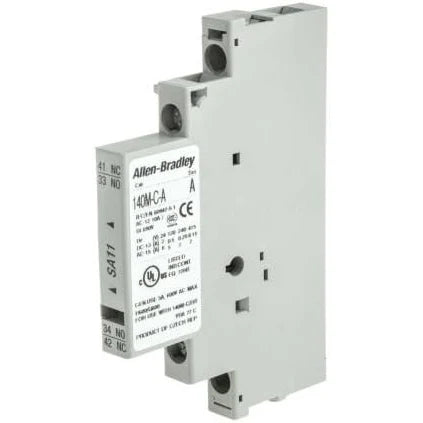

140M-C-ASA11 | Allen-Bradley Auxiliary Contact Block, Right Side Mounted 1 NO 1 NC
- Regular price
- $59.00
- Sale price
- $59.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 140M-C-ASA11
Description
Allen Bradley 140M-C-ASA11 2 pole side mounted auxiliary contact for the AB 140M-C2E line of manual motor protectors. This auxiliary mounts on the side and contains 1 N.O. and 1 N.C. contact set and only one can be used per unit.
Technical Specifications
| Brand | Allen-Bradley |
| Contact Configuration | 1 Normally Open + 1 Normally Closed |
| Part Number | 140M-C-ASA11 |
| Mounting Style | SIDE MOUNTED |
| Poles | 2 |
| Product Type | AUXILIARY CONTACT |
| Width | 9 MM WIDE |
| Applications | 140M-C -D -F Frame Circuit Breakers |
| Contact Configuration | 1 NO, 1 NC |
| Contact Rating | 3 A at 230 VAC-15 |
Information About 140M-C-ASA11
The Allen Bradley 140M-C2E frame Motor Protection Circuit Breakers may have 2 cULus Listings – as Manual, Self-Protected Combination Motor Controllers and as Manual Motor Controllers (with optional approvals for Motor Disconnect and Group Installation). When UL/CSA listed as Manual, Self-Protected Combination Motor Controllers, the 140M Motor Protection Circuit Breakers provide all of the necessary NEC/CEC requirements for the protection and control of individual Motor Branch Circuits without additional protective devices. At some higher voltages and currents (particularly at 600V), a few of the AB 140M-C2E Series C devices are only UL/CSA Listed as Manual Motor Controllers (with optional approvals for Motor Disconnect and Group Installation). In NEC/CEC Group Installations, these devices must be applied per the appropriate rules which require the use of an upstream Branch-Circuit, Short-Circuit Protective Device (BCPD).
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
