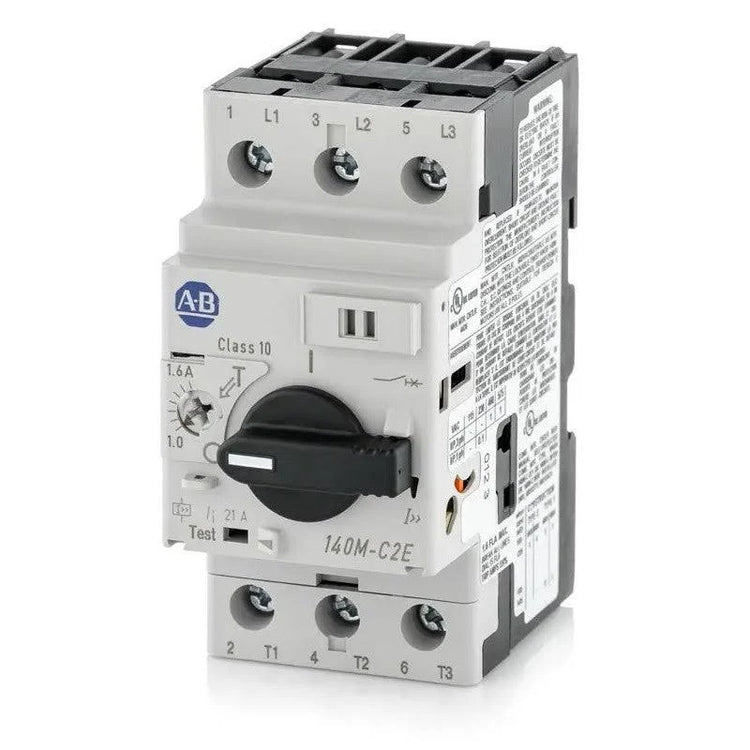

140M-C2E-B10 | Allen-Bradley Motor Protection Circuit-Breaker
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 140M-C2E-B10
Description
The Allen-Bradley 140M-C2E-B10 is a motor protection circuit-breaker designed for reliable protection of motors up to 1.6 A. It features a thermal-magnetic trip unit for overload and short-circuit protection, a compact DIN rail-mountable design, and a rotary handle for easy manual operation.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category | Circuit Breaker |
| Part Number | 140M-C2E-B10 |
| Subcategory |
Molded Case Circuit Breaker
|
|
Trip Range
|
0.63-1 AMP |
| Voltage | 230 VAC |
|
Frame Size
|
C-Frame |
| Function | Motor Protection |
| Product Family | 140M |
| Current Rating | 32 AMP |
| Weight | 0.71 lbs |
Information About 140M-C2E-B10
The Allen-Bradley 140M-C2E-B10 is a compact motor protection circuit breaker designed for safeguarding motors against overloads and short-circuits in industrial applications. It integrates thermal and magnetic protection in a space-saving format, making it ideal for use in control panels and machinery requiring dependable motor defense.
Key Features:
- Current Range: Adjustable from 0.63 to 1.0 A, supporting small motors with precise overload protection.
- Trip Class: Class 10 thermal trip characteristic for quick response to motor overload conditions.
- Magnetic Trip Setting: Fixed at 13 times the rated current (13 × Ie), offering fast disconnection in case of short-circuit events.
- Poles: Three-pole configuration, ensuring comprehensive phase protection in 3-phase motor systems.
- Voltage Rating: Supports operation up to 690V AC, suitable for a broad range of industrial power systems.
- Mounting Type: Designed for DIN rail installation, simplifying integration into control cabinets.
- Control Interface: Equipped with a rotary handle that provides clear visual indicators for ON, OFF, and TRIPPED states.
- Frame Size: Utilizes the compact C-frame size, minimizing space requirements within electrical enclosures.
- Standards Compliance: Meets UL 508, CSA C22.2 No.14, and IEC 60947-1/-2/-4-1 standards for safety and performance in global applications.
The 140M-C2E-B10 motor protection circuit breaker delivers a reliable, integrated solution for motor control and safety in compact industrial setups. Its discontinued status makes the 140MT-C3E-B10 the recommended replacement, offering improved features and ongoing support for modern applications.
