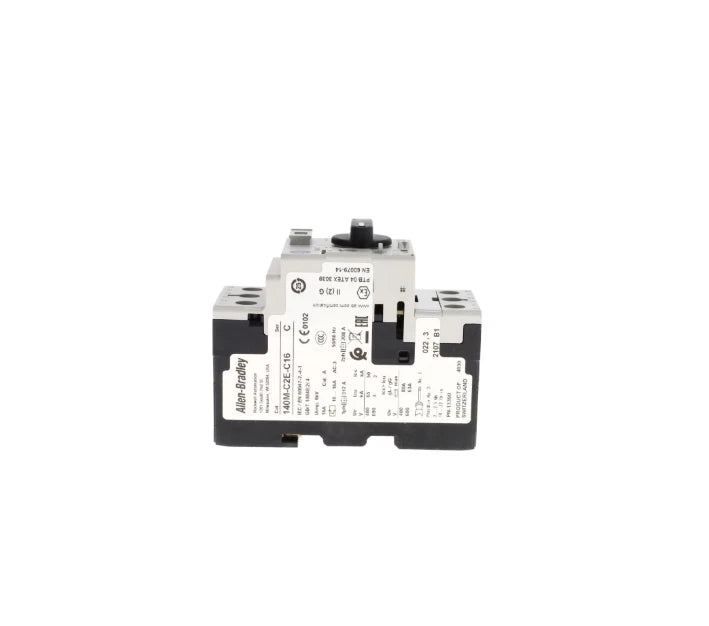

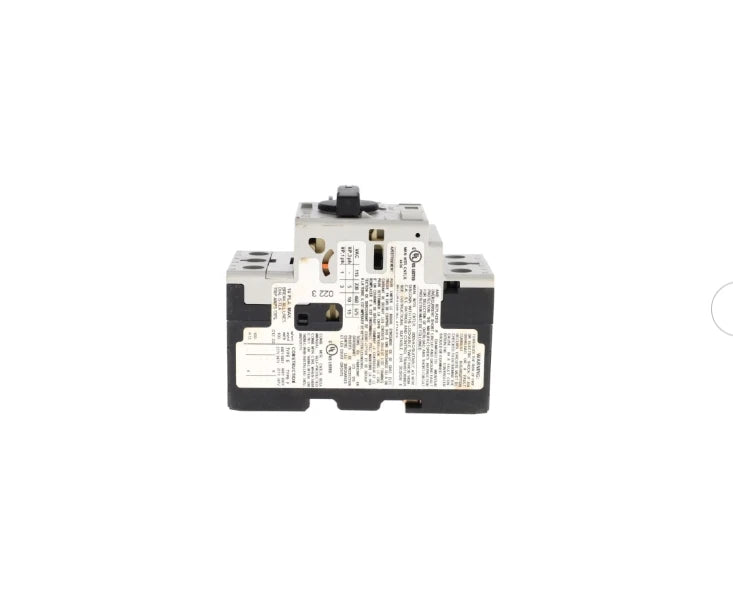

140M-C2E-C16 | Allen-Bradley Motor Protection Circuit Breaker 10-16 A, Frame C

Description

The 140M-C2E-C16 circuit breaker is an Allen-Bradley 140M circuit breaker. Its current rating is 16 Amps. Thermal/fixed magnetic protection is available on the 140M-C2E-C16 circuit breaker.

Technical Specifications

Information About 140M-C2E-C16

The Allen-Bradley 140M-C2E-C16 circuit breaker is a 140M motor protection circuit breaker. It may be used for the following applications: disconnecting motor branch circuits, manual switching, overload protection (thermal protection) and short-circuit/branch-circuit protection (magnetic protection). The 140M-C2E-C16 circuit breaker is rated for 16 Amps of operating current. It supports normal break interrupting rating/breaking capacity. The 140M-C2E-C16 circuit breaker supports adjustable thermal and fixed magnetic protection. The motor current adjustment range is 10 to 16 Amps. The magnetic trip current rating is 208 Amps. The maximum short circuit current rating is 65 kiloamps at 400 Volts and 30 kiloamps at 480 Volts. The maximum Horsepower ratings for 3-phase operation are 5 Horsepower at 200 Volts, 5 Horsepower at 230 Volts, 10 Horsepower at 460 Volts, and 15 Horsepower at 575 Volts.

The maximum kilowatt output power ratings for the Allen-Bradley 140M-C2E-C16 circuit breaker are 4 kilowatts at 230 Volts, 7.5 kilowatts at 400/415 Volts, 10 kilowatts at 500 Volts, and 13 kilowatts at 690 Volts. When it is used as a motor protection breaker, the maximum fuse size for the 140M-C2E-C16 circuit breaker is 450 Amps, the maximum short circuit current ratings for group motor installation are 30 kiloamps at 480 Volts and 600 Volts, the maximum short circuit ratings are 30 kiloamps at 480 and 600 Volts for motor disconnect, and the maximum short circuit current rating is 30 kiloamps at 480 Volts and 277 Volts for the tap conductor protection. The height of the 140M-C2E-C16 circuit breaker is 91 millimeters, the width is 45 millimeters, and the depth is 54.9 millimeters.
