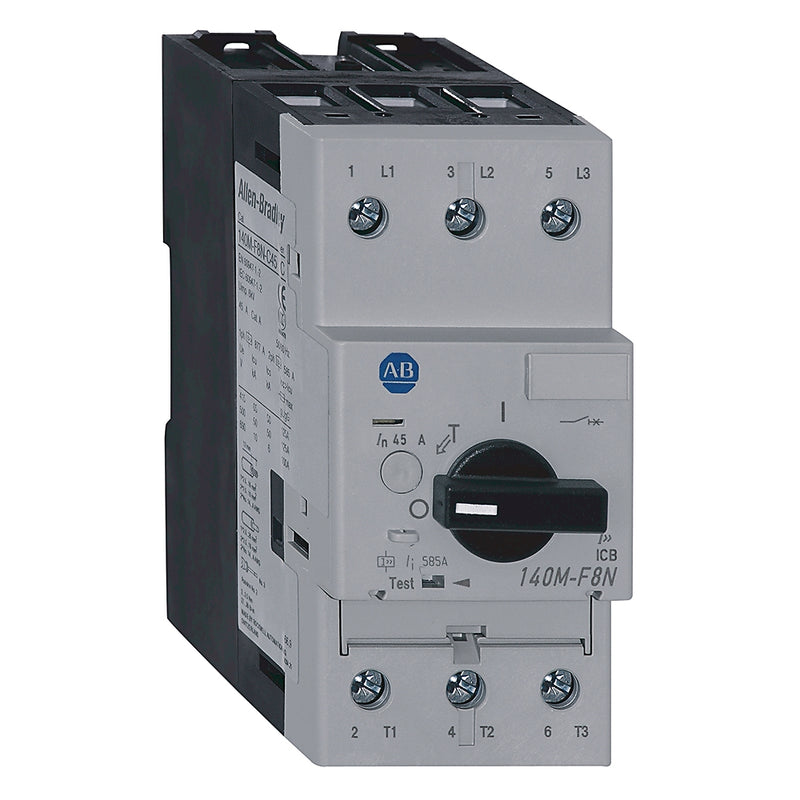

140M-F8E-C25 | Allen-Bradley Motor Protection Circuit Breaker
- Regular price
- $392.00
- Sale price
- $392.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 140M-F8E-C25
Description
The Allen-Bradley 140M-F8E-C25 is a motor protection circuit breaker designed for protecting motors up to 25 A. It features thermal and magnetic trip elements for overload and short-circuit protection, and is part of the 140M-F series for high-performance motor protection.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category | Circuit Breakers |
| Part Number | 140M-F8E-C25 |
| Subcategory |
Molded Case Circuit Breakers
|
|
Adj. Thermal Current Range (A)
|
18 - 25A |
| Application | Standard Magnetic Trip (Fixed at 13 x le) |
| Breaking Capacity | High Breaking Capacity |
| Coordination Type | Type 1 |
| Frame Size | Frame Size F (45 Amps) |
| Maximum Available Fault Current | 5 |
| Supply Voltage | 480V 60Hz |
| Weight | 0.79 kgs |
Information About 140M-F8E-C25
The Allen-Bradley 140M-F8E-C25 is a motor protection circuit breaker designed to provide reliable protection for motors in industrial applications. It safeguards against both overload and short-circuit conditions, ensuring optimal performance and equipment longevity. With adjustable current settings and high breaking capacity, it offers flexibility and robust protection for a range of motor control scenarios.
Key Features:
Current Rating: Adjustable from 18 to 25 A, allowing precise coordination with motor specifications.
Voltage Range: Suitable for operation at 230 to 690 V AC, 50/60 Hz.
Trip Elements:
-
Thermal Overload Protection: Protects against prolonged overcurrent conditions.
-
Magnetic Short-Circuit Protection: Fixed high magnetic trip setting at 13 times the maximum setting.
Breaking Capacity: Rated up to 100 kA at 400 V AC, ensuring high fault current protection.
Mounting: DIN rail mountable for quick and easy installation in control panels.
Frame Size: Compact F-frame design for space-saving integration.
The 140M-F8E-C25 is ideal for use in industrial motor control systems where space, reliability, and high fault protection are critical. It ensures motors are protected from damage due to electrical faults, thereby improving operational safety and reducing downtime.
