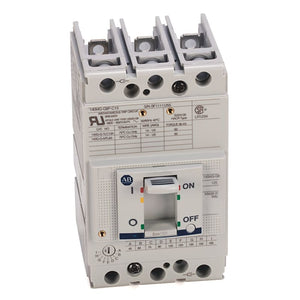

140MG-G8P-C50 | Allen-Bradley 50A G Frame Motor Ckt Protector
- Regular price
- $897.00
- Sale price
- $897.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 140MG-G8P-C50
Description
The Allen-Bradley 140MG-G8P-C50 is a compact and robust motor circuit protector (MCP) designed to deliver fast-acting protection for motor branch circuits. With a current rating of 50 amps and a high interrupting capacity of 65 kA at 480V AC, this 3-pole G-frame device is ideal for industrial applications that demand reliable short-circuit protection without thermal overload protection.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category | Circuit Breakers |
| Part Number | 140MG-G8P-C50 |
| Subcatecory |
Molded Case Circuit Breakers
|
| Amperage | 50 Amp (Operational), 125 Amp (Frame) |
| Frame | G-Frame, 125 A |
| Number of Poles | 3 Pole |
| Voltage Rating | 480 V AC |
| Interrupt Rating | 65 kA |
| Protection Type | Adjustable Magnetic (No Thermal Protection) |
| Mounting | No Bus Bar Mounting |
| Control Voltage | 24V AC/DC |
| Standards Compliance | CCC, RCM |
| Weight | 2.4200 lb |
Information About 140MG-G8P-C50
The 140MG-G8P-C50 is part of Allen-Bradley's G-Frame series of motor protection devices, offering adjustable magnetic trip protection and high fault current interrupt capability. With a frame rating of 125 amps and a 3-pole configuration, it supports motor branch circuits requiring tailored short-circuit protection. The MCP is designed without thermal elements, making it suitable for applications where overload protection is provided externally or by electronic motor protection relays.
Key Features:
-
Adjustable Magnetic Protection: Allows setting flexibility for specific short-circuit trip thresholds.
-
High Interrupting Capacity: Rated at 65 kA at 480V AC for dependable circuit isolation during fault conditions.
-
No Thermal Trip Element: Provides short-circuit protection only, ideal for systems with separate overload protection.
-
3-Pole G-Frame Design: Supports motor circuits with up to 50A operational current and 125A frame capacity.
-
Auxiliary and Alarm Contacts: Built-in signaling options enhance monitoring and maintenance efficiency.
The 140MG-G8P-C50 is ideal for motor protection in automation systems, HVAC, pumping stations, and factory machinery that require flexible, high-performance short-circuit safeguarding.
