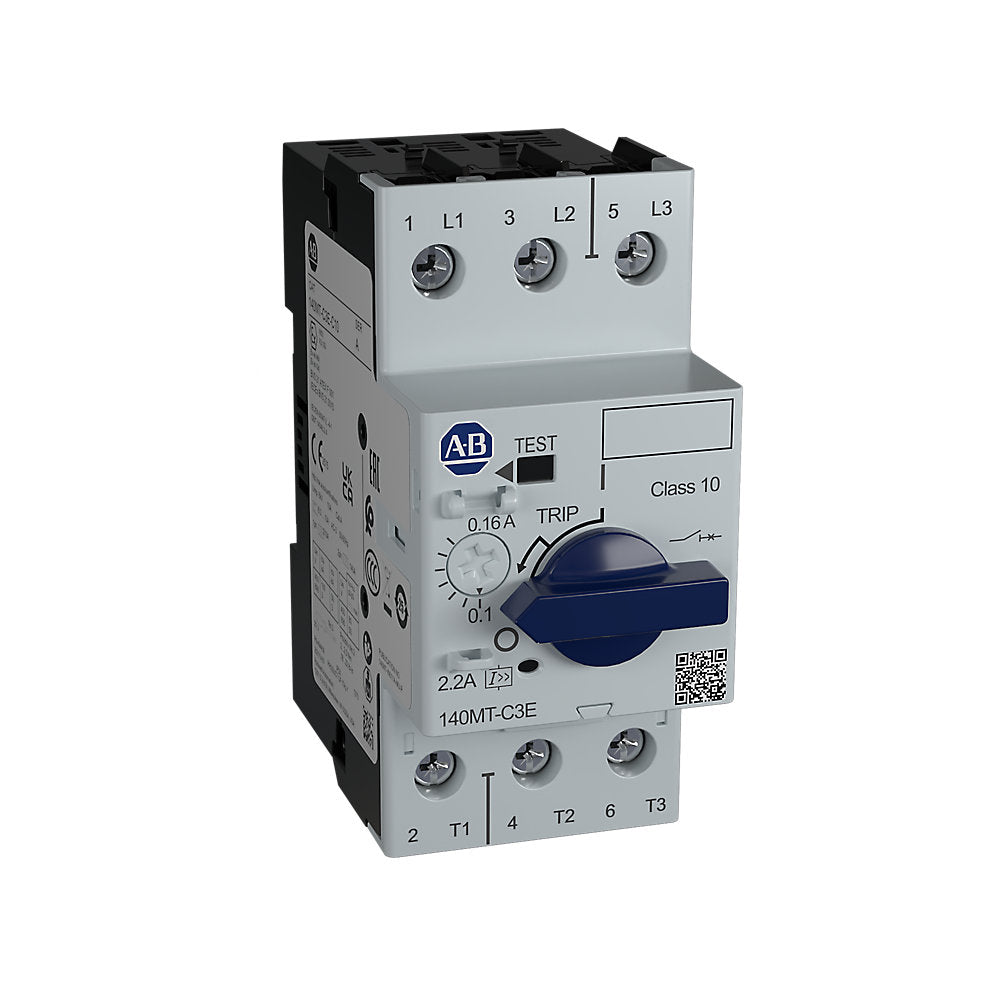

Part #: 140MT-C3E-C32 Manufactured by: Allen-Bradley
Regular price
$254.00
Sale price
$254.00
Regular price
3 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Allen-Bradley 140MT-C3E-C32 Motor Protection Circuit Breaker is a robust and efficient motor protection device, offeri...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 140MT-C3E-C32
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 140MT-C3E-C32

Description / Specifications

Description

The Allen-Bradley 140MT-C3E-C32 Motor Protection Circuit Breaker is a high-performance circuit protection device designed for industrial motor control applications. With an adjustable trip range of 26.5-32A, Class 10 trip characteristics, and a C-frame design, it ensures short-circuit and overload protection for motors operating between 200-690V.



Technical Specifications

Condition New/Never Used Surplus
Brand Allen-Bradley
Part Number 140MT-C3E-C32
Category Circuit Breakers
Subcategory Molded Case Circuit Breakers
Amperage 32 Amp
Frame C, 32 A
Power Rating 7.5 kW at 230 V, 15 kW at 400/415 V, 20 kW at 500 V, 25 kW at 690 V
Trip Range 26.5 - 32 A
Type Normal Break
Applications For Short-Circuit Protection, Overload Protection
Interrupt Rating 15 kA at 600 V, 25 kA at 480 V
Temperature Rating
-25 to 70 degrees C
Trip Type Adjustable Thermal, Fixed Magnetic, Class 10
Voltage 480 VAC
Weight 0.8100 lb





Information About 140MT-C3E-C32

The 140MT-C3E-C32 is built for industrial environments requiring precise and reliable motor protection. It features a fixed magnetic trip set at 14x Ie, providing fast response to short circuits while the adjustable thermal trip protects against overloads. The IP2X rating ensures enhanced safety, while its standard breaking capacity and interrupt rating of 15 kA at 600V and 25 kA at 480V allow for reliable operation in high-power applications. Additionally, it supports direct screw mounting, simplifying installation in control panels.

Key Features:

  • Current Rating: 26.5-32A adjustable trip range, allowing flexibility for motor protection.
  • Trip Class: Class 10, providing fast response to overload conditions.
  • Interrupt Rating: 15 kA at 600V, 25 kA at 480V, ensuring high fault current handling.
  • Magnetic Trip Setting: Fixed at 14x Ie, offering effective short-circuit protection.
  • Voltage Rating: 200-690V operational range, making it suitable for various motor applications.
  • Power Rating: Supports up to 25 kW at 690V, allowing it to handle high-power motors.
  • Mounting Type: Direct screw mounting, simplifying installation in electrical panels.

This motor protection circuit breaker is a reliable and efficient solution for safeguarding industrial motors, ensuring optimal performance and safety in automation and power distribution systems.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Allen-Bradley 140MT-C3E-C32 Motor Protection Circuit Breaker is a high-performance circuit protection device designed for industrial motor control applications. With an adjustable trip range of 26.5-32A, Class 10 trip characteristics, and a C-frame design, it ensures short-circuit and overload protection for motors operating between 200-690V.



Technical Specifications

Condition New/Never Used Surplus
Brand Allen-Bradley
Part Number 140MT-C3E-C32
Category Circuit Breakers
Subcategory Molded Case Circuit Breakers
Amperage 32 Amp
Frame C, 32 A
Power Rating 7.5 kW at 230 V, 15 kW at 400/415 V, 20 kW at 500 V, 25 kW at 690 V
Trip Range 26.5 - 32 A
Type Normal Break
Applications For Short-Circuit Protection, Overload Protection
Interrupt Rating 15 kA at 600 V, 25 kA at 480 V
Temperature Rating
-25 to 70 degrees C
Trip Type Adjustable Thermal, Fixed Magnetic, Class 10
Voltage 480 VAC
Weight 0.8100 lb





Information About 140MT-C3E-C32

The 140MT-C3E-C32 is built for industrial environments requiring precise and reliable motor protection. It features a fixed magnetic trip set at 14x Ie, providing fast response to short circuits while the adjustable thermal trip protects against overloads. The IP2X rating ensures enhanced safety, while its standard breaking capacity and interrupt rating of 15 kA at 600V and 25 kA at 480V allow for reliable operation in high-power applications. Additionally, it supports direct screw mounting, simplifying installation in control panels.

Key Features:

  • Current Rating: 26.5-32A adjustable trip range, allowing flexibility for motor protection.
  • Trip Class: Class 10, providing fast response to overload conditions.
  • Interrupt Rating: 15 kA at 600V, 25 kA at 480V, ensuring high fault current handling.
  • Magnetic Trip Setting: Fixed at 14x Ie, offering effective short-circuit protection.
  • Voltage Rating: 200-690V operational range, making it suitable for various motor applications.
  • Power Rating: Supports up to 25 kW at 690V, allowing it to handle high-power motors.
  • Mounting Type: Direct screw mounting, simplifying installation in electrical panels.

This motor protection circuit breaker is a reliable and efficient solution for safeguarding industrial motors, ensuring optimal performance and safety in automation and power distribution systems.
