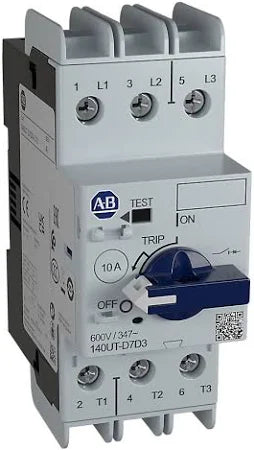

140UT-D7D3-C10 | Allen-Bradley Circuit Breaker
- Regular price
- $452.00
- Sale price
- $452.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

Product Description P/N: 140UT-D7D3-C10
Description
The Allen-Bradley 140UT-D7D3-C10 is a DIN rail-mounted miniature circuit breaker (MCB) designed for protecting electrical circuits against overload and short circuits. I
Technical Specifications
Condition | New/Never Used Surplus |
---|---|
Brand | Allen-Bradley |
Category |
Electrical Protection Devices
|
Part Number | 140UT-D7D3-C10 |
Subcategory |
Miniature Circuit Breakers (MCBs)
|
Amperage
|
10 Amp |
Frame
|
D |
Number of Poles
|
3 Pole |
Trip Type
|
Fixed Thermal Magnetic |
Voltage
|
480 VAC |
Interrupt Rating
|
100 kAIC |
Temperature Rating
|
-25 to 50°C |
Type
|
Current Limiting |
Weight
|
0.88 lbs |
Information About 140UT-D7D3-C10
The Allen-Bradley 140UT-D7D3-C10 is a molded case circuit breaker (MCCB) designed to provide reliable protection against overloads and short circuits in electrical systems.
Key Features:
-
Rated Current: 10 A
-
Pole Configuration: 3-pole
-
Frame Size: D-Frame
-
Interrupting Capacity: 100 kA at 480V
-
Compliance: UL 489 and IEC 60947-2 standards
-
Mounting: DIN rail mountable
-
Design: Compact and current-limiting
-
Rated Insulation Voltage (Ui): 690V
-
Rated Impulse Withstand Voltage (Uimp): 6 kV
-
Utilization Category: Category A
-
Mechanical Endurance: Up to 100,000 operations
-
Electrical Endurance: Up to 10,000 operations at maximum rated current
-
Operating Temperature Range: -25°C to +60°C
-
Storage Temperature Range: -40°C to +80°C
-
Altitude: Suitable for use up to 2000 meters above sea level
-
Protection Class: IP2X when wired
-
Auxiliary Contacts: Front-mounted and side-mounted options for status indication
-
Trip Contacts: For signaling tripping events
-
Undervoltage Trip Units: For automatic tripping when voltage drops below a set threshold
-
Shunt Trip Units: Allow remote tripping of the breaker
-
Lockable Handles: For securing the breaker in the OFF position
-
Door Coupling Handles: Facilitate operation when the breaker is installed behind a panel door
