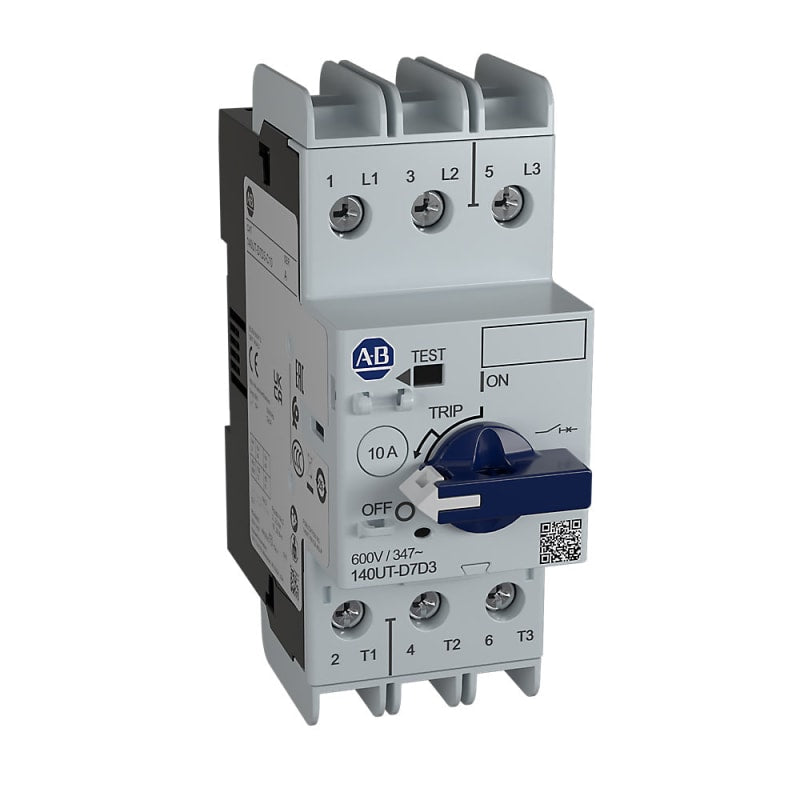

140UT-D7D3-C20 | Allen-Bradley Circuit Breaker
- Regular price
- $827.00
- Sale price
- $827.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 140UT-D7D3-C20
Description
The Allen-Bradley 140UT-D7D3-C20 is a DIN rail-mounted miniature circuit breaker (MCB) designed for reliable overcurrent protection in industrial control panels.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Circuit Breaker
|
| Part Number | 140UT-D7D3-C20 |
| Subcategory |
Molded Case Circuit Breaker
|
| Amperage | 20 Amp |
| Frame | D |
| Number of Poles | 3 Pole |
| Trip Type | Fixed Thermal Magnetic |
| Voltage | 480 VAC |
| Interrupt Rating | 65 kAIC |
| Temperature Rating | -25 to 50 degrees C |
| Weight |
1.00 lbs
|
Information About 140UT-D7D3-C20
The Allen-Bradley 140UT-D7D3-C20 is a 3-pole DIN rail-mounted miniature circuit breaker (MCB) from Rockwell Automation’s 140UT series, engineered for overcurrent protection in control circuits, machinery, and industrial installations. It features a C-curve trip characteristic, making it suitable for applications with moderate inrush currents, such as motors and lighting systems.
Key Features:
-
Product Type: Miniature Circuit Breaker (MCB)
-
Series: 140UT
-
Number of Poles: 3-pole
-
Trip Curve: C-curve
-
Trips at 5–10 times the rated current (ideal for moderately inductive loads)
-
-
Rated Current: 20 A
-
Rated Voltage:
-
Up to 277/480V AC
-
Up to 125/250V DC
-
Some models rated up to 600V AC/DC (check data sheet for specific installation ratings)
-
-
Breaking Capacity: Typically 10 kA at 480V AC
-
Trip Mechanism: Thermal-magnetic
-
Mounting Type: 35 mm DIN rail (standard industrial rail mount)
-
Terminal Type: Screw terminals
-
Standards & Certifications:
-
UL 1077, CSA, IEC/EN 60947-2, RoHS compliant
-
-
Housing Material: Flame-retardant thermoplastic
-
Ambient Operating Temperature: -25°C to +55°C (derating may apply beyond this range)
The Allen-Bradley 140UT-D7D3-C20 delivers dependable circuit protection with a versatile design that suits a wide range of industrial automation and power distribution applications. Its C-curve performance and robust construction ensure safety and reliability in demanding environments.
