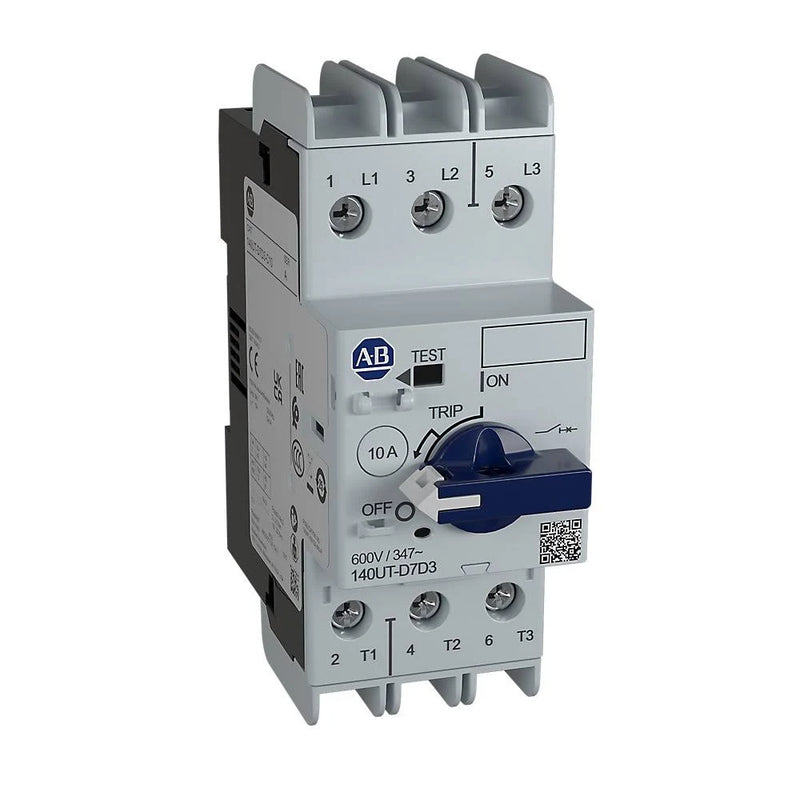

140UT-D7D3-C30 | Allen-Bradley Current Limiting Molded Case Circuit Breaker 3 Poles
- Regular price
- $694.00
- Sale price
- $694.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 140UT-D7D3-C30
Description
The Allen-Bradley 140UT-D7D3-C30 is a compact, high-performance molded case circuit breaker designed for current-limiting protection in a variety of electrical distribution applications. It offers 3-pole protection with a 30 A fixed thermal magnetic trip configuration.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Circuit Breaker
|
| Part Number | 140UT-D7D3-C30 |
| Subcatecory |
Molded Case Circuit Breaker
|
| Amperage |
30 Amp
|
| Frame | D |
| Interrupt Rating | 65 kAIC at 480Y/277 VAC |
| Number of Poles | 3 Pole |
| Temperature Rating | -25 to 50 °C |
| Trip Type | Fixed Thermal Magnetic |
| Type | Current Limiting |
| Voltage | 480 VAC |
| Weight | 0.9600 lb |
Information About 140UT-D7D3-C30
The 140UT-D7D3-C30 is part of Allen-Bradley’s D-frame molded case circuit breaker series engineered for high-interrupt capacity and versatile application scenarios. Designed to safeguard feeder and control circuits, HVAC systems, and lighting loads, it supports 480 VAC operations and carries a 65 kAIC interrupt rating. This unit delivers reliable performance in demanding environments with a temperature tolerance from -25°C to 50°C. With its fixed thermal magnetic trip and current-limiting type, it provides fast, precise interruption of fault currents to protect downstream equipment.
Key Features:
- Amperage: 30 A nominal current capacity suitable for light to medium-duty power distribution.
- Applications: Engineered for backfeeding, feeder circuits, control circuits, HVAC systems, HID lighting, and SWD-rated loads at 15 and 20 A.
- Frame: Built on a compact and robust D-frame architecture ideal for panel integration.
- Interrupt Rating: High fault-clearing capacity of 65 kAIC at 480Y/277 VAC ensures enhanced safety.
- Number of Poles: 3-pole configuration provides simultaneous protection across three conductors.
- Temperature Rating: Operational temperature range from -25°C to 50°C supports reliable performance in varied conditions.
- Trip Type: Fixed thermal magnetic trip unit for consistent overload and short-circuit protection.
- Type: Current-limiting breaker that minimizes let-through energy during fault conditions.
- Voltage: Rated for 480 VAC distribution systems in commercial and industrial setups.
The 140UT-D7D3-C30 delivers high-interrupting performance and rugged reliability across a range of demanding electrical distribution environments.
