145THTR5326 | Marathon 1.50 HP, 145TC Frame
- Regular price
- $809.00
- Sale price
- $809.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 145THTR5326
Description

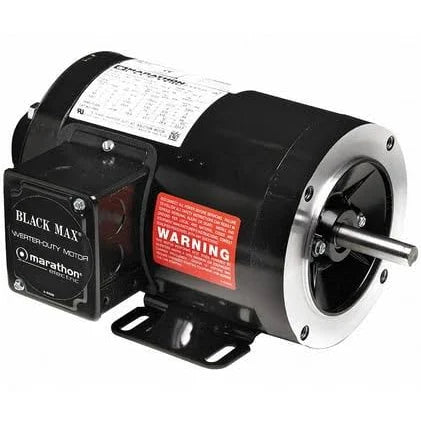

The Marathon 145THTR5326 is a 1.50 horsepower (HP) motor featuring a 145TC frame. It belongs to the Marathon Black Max® series, designed specifically for inverter duty speed applications. Operating at 1800 revolutions per minute (RPM) and suitable for use with a three-phase power supply at 60 Hertz (Hz), this motor is compatible with voltages of 230/460 volts. With a Totally Enclosed Non-Ventilated (TENV) enclosure, identified by part number Y538, it ensures efficient and reliable performance in various industrial settings.
Technical Specifications
|
Part # |
145THTR5326 |
|
Category |
Motors/GearBox/Clutch |
|
Subcategory |
Motor |
|
Phase |
3 |
|
Output HP |
1.50 Hp |
|
Output KW |
1.1 kW |
|
Voltage |
230/460 V |
|
Speed |
1755 rpm |
|
Service Factor |
1 |
|
Frame |
145TC |
|
Enclosure |
Totally Enclosed Non Ventilated |
|
Thermal Protection |
Thermostat |
|
Efficiency |
85.5 % |
|
Ambient Temperature |
40 °C |
|
Frequency |
60 Hz |
|
Current |
4.8/2.4 A |
|
Power Factor |
69 |
|
Duty |
Continuous |
|
Insulation Class |
F |
|
Design Code |
INV |
|
KVA Code |
R |
|
Drive End Bearing Size |
6205 |
|
Opp Drive End Bearing Size |
6203 |
|
UL |
Recognized |
|
CSA |
Y |
|
CE |
Y |
|
IP Code |
43 |
Information About 145THTR5326
The Marathon 145THTR5326 is a Black Max® Inverter Duty Speed Ratio Motor designed for industrial applications requiring reliable performance. With a power rating of 1.50 HP and a 145TC frame size, this motor is suitable for various tasks in industrial settings. It operates on a three-phase electrical system at a frequency of 60 Hz and can accommodate voltages ranging from 230 to 460 V, offering flexibility in installation and operation.
Operating at a speed of 1800 RPM, the Marathon 145THTR5326 delivers consistent performance to meet the demands of industrial machinery and equipment. Its Totally Enclosed Non Ventilated (TENV) enclosure ensures protection against dust, dirt, and other environmental factors, making it suitable for use in harsh conditions. The motor is equipped with a thermostat for thermal protection, safeguarding it against overheating during operation.
With an efficiency rating of 85.5%, the Marathon 145THTR5326 maximizes energy utilization, contributing to cost savings and environmental sustainability. It operates continuously, making it ideal for applications requiring uninterrupted performance over extended periods. The motor is designed with an insulation class of F, providing enhanced thermal resistance and reliability in demanding operating environments.
Manufacturer information
Marathon Electric is a leading manufacturer of electric motors, offering a wide range of industrial and commercial solutions. Known for quality and innovation, Marathon motors power various applications globally, providing reliable and energy-efficient solutions.
