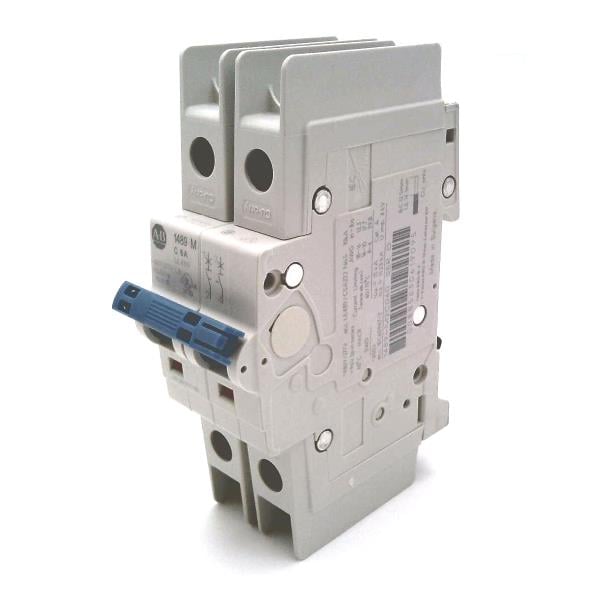

1489-M2C060 | Allen-Bradley 6 Amp Miniature Circuit Breaker
- Regular price
- $139.00
- Sale price
- $139.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1489-M2C060
Description
The Allen-Bradley 1489-M2C060 is a 6 Amp, 2-pole miniature circuit breaker designed to provide reliable overcurrent protection for industrial control systems and equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Circuit Breaker
|
| Part Number | 1489-M2C060 |
| Subcatecory |
Din Rail Mount Circuit Breaker
|
|
Amperage
|
6 Amp |
| Interrupt Rating | 15 kAIC |
| Standard | C-TICK,CCC,CE,CSA,CUL,UL |
|
Type
|
Branch Circuit Protectors |
|
Number of Poles
|
2 Pole |
|
Trip Type
|
C-Curve |
|
Voltage
|
480 VAC |
|
Color
|
Gray |
|
Weight
|
0.53 lbs |
Information About 1489-M2C060
The Allen-Bradley 1489-M2C060 is a high-quality 2-pole miniature circuit breaker designed for dependable overcurrent protection in industrial and commercial applications. It features a C-curve trip characteristic ideal for general-purpose circuits with moderate inrush currents and ensures compliance with global standards for safe and reliable operation.
Key Features:
-
Type: Thermal-Magnetic Miniature Circuit Breaker (MCB)
-
Rated Current: 6 A
-
Number of Poles: 2
-
Trip Curve: C-Curve (5–10 × In)
-
Rated Operating Voltage: 480Y/277 V AC (UL/CSA), 400 V AC (IEC/EN), 96 V DC
-
Interrupting Capacity: 10 kA @ 480Y/277 V AC (UL 489), 15 kA @ 400 V AC (IEC/EN)
-
Frequency: 50/60 Hz
-
Mounting Method: 35 mm DIN Rail
-
Terminal Torque: 2.8 Nm
-
Wire Size: Up to 35 mm² rigid cable, 25 mm² flexible cable
-
Operating Temperature Range: -25°C to +55°C
-
Ingress Protection: IP40 (inside panel), IP20 (outside panel)
-
Certifications: UL 489, CSA C22.2 No. 5.1, IEC/EN 60947-2, CE, RoHS, VDE certified
The 1489-M2C060 is ideal for industrial systems requiring reliable circuit protection. Its robust design supports flexible installation options, quick wiring through dual terminals, and high endurance for mechanical and electrical operations, making it an excellent choice for modern automation and control panels.
