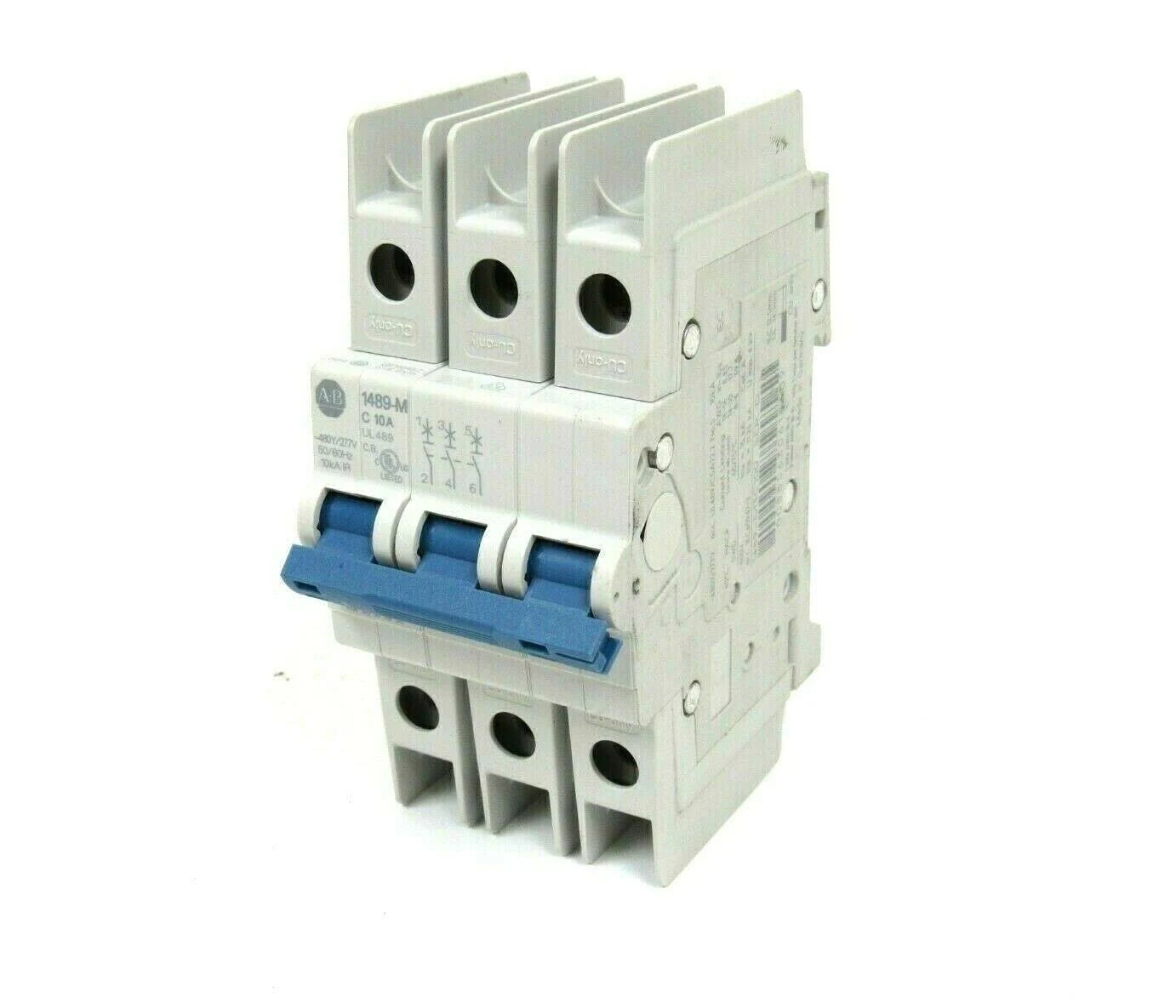

1489-M3C100 | Allen-Bradley Miniature Circuit Breaker
- Regular price
- $197.00
- Sale price
- $197.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1489-M3C100
Description
The Allen-Bradley 1489-M3C100 is a Miniature Circuit Breaker designed for overcurrent protection in electrical systems. With a 100 Amp rating and a 3-pole configuration, it provides reliable protection against overloads and short circuits in industrial and commercial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category | Circuit Breaker |
| Part Number | 1489-M3C100 |
| Subcategory | Molded Case Circuit Breaker |
|
Amperage
|
10 Amp |
| Interrupt Rating | 15 kAIC |
|
Standard |
CCC,CE,CSA,CUL,UL
|
|
Type
|
Branch Circuit Protectors |
| Current | 10 Amp |
| Number of Poles | 3 Pole |
| Trip Type | C-Curve |
| Voltage | 480 VAC |
| Environmental Conditions | 3 Degree of Pollution |
| Weight | 0.75 lbs |
Information About 1489-M3C100
The Allen-Bradley 1489-M3C100 is a Miniature Circuit Breaker (MCB) designed to provide reliable protection against overcurrent conditions, such as overloads and short circuits, in electrical circuits. It is part of the 1489 series of circuit breakers by Allen-Bradley, which are known for their compact design and high performance.
Key Features:
-
Current Rating: The 1489-M3C100 is rated for 100 Amps, making it suitable for high-current protection needs.
-
Poles: It is a 3-pole breaker, ideal for three-phase systems, commonly used in industrial applications requiring protection for three-phase circuits.
-
Voltage Rating: Typically designed for AC systems, the breaker provides efficient overcurrent protection for various electrical circuits.
-
Trip Curve: It features a C-Curve trip characteristic, which provides protection for moderate inrush currents, such as those generated by motors or other inductive loads. It trips between 5 and 10 times the rated current in case of overloads.
-
Breaking Capacity: The breaker has a high breaking capacity, meaning it can safely interrupt high fault currents without causing damage to the system or components.
-
Compact Design: Despite its high current rating, the 1489-M3C100 features a compact and space-saving design, making it ideal for crowded control panels or other space-constrained environments.
-
Durability: Built to withstand harsh industrial conditions, the 1489-M3C100 offers long-term reliability and protection for electrical systems.
The Allen-Bradley 1489-M3C100 is a reliable and efficient solution for overcurrent protection in three-phase electrical systems, ideal for industrial applications requiring high performance and compact design.
