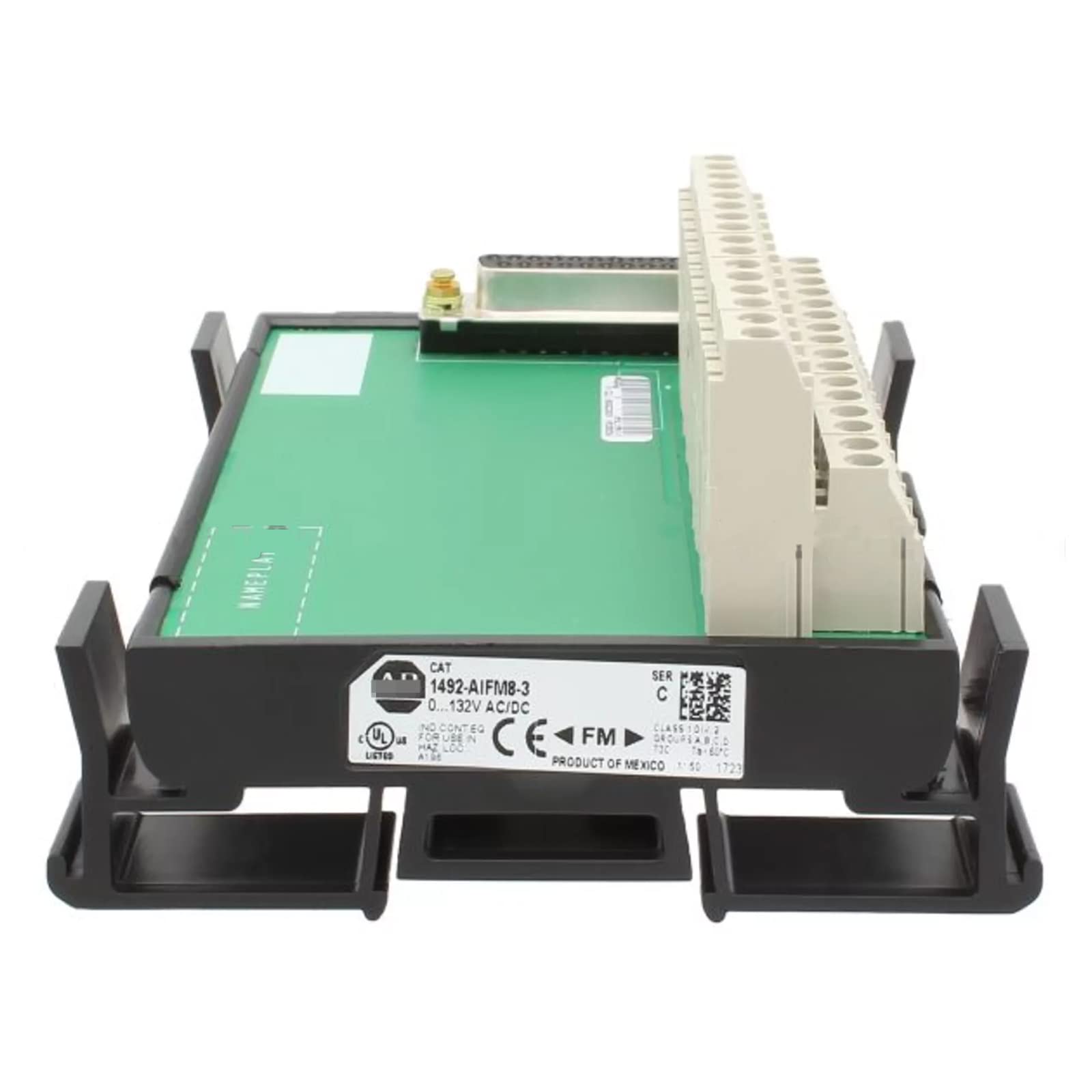

1492-AIFM8-3 | Allen-Bradley Feed-Through 8 Channel Input or Output IFM 3 Terminal
- Regular price
- $74.00
- Sale price
- $74.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1492-AIFM8-3
Description
The Allen-Bradley 1492-AIFM8-3 is an analog interface module (IFM) with feed-through connections for eight input or output channels. It is designed with three terminals per channel, supporting reliable wiring for AC/DC signals up to 132 V.
Technical Specifications
| Brand | Allen-Bradley |
| Product Type | Digital/Analog Programmable Controller Wiring Systems |
| Part Number | 1492-AIFM8-3 |
| Feed-Through | 8 or 16 channel input or output with 3 terminals |
| Voltage Range | 0 - 132 V AC/DC |
| Max Current (Per Circuit) | 2A |
| Max Current (per Module) | 12 A |
| Dimensions (LxWxH) | 6.96 cm x 11 cm x 8.30 cm |
Information About 1492-AIFM8-3
The 1492-AIFM8-3 is part of Allen-Bradley’s 1492 series of digital/analog programmable controller wiring systems, specifically engineered to simplify wiring between field devices and controllers. It supports either 8 or 16 channels of analog I/O in a feed-through configuration, using fixed terminal blocks for secure and straightforward installation. With a voltage range of 0–132 V AC/DC and a maximum of 2 A per circuit (12 A per module), it is suitable for a wide variety of analog signal applications. This module uses a D-shell cable connector for streamlined connectivity and includes standard terminals for reliable signal transfer. Compact in design, measuring 6.96 × 11 × 8.3 cm, it saves panel space while maintaining wiring clarity and accessibility.
Key Features:
- Channel Support: Provides 8 feed-through analog input or output channels with 3 terminals each for flexible wiring.
- Voltage Range: Operates within 0–132 V AC/DC, suitable for diverse analog applications.
- Current Capacity: Supports 2 A maximum per circuit and 12 A maximum per module for robust signal handling.
- Wiring System: Uses a fixed terminal block design for secure and simplified connections.
- Connector Type: Equipped with D-shell cable connectors for efficient interface to controllers.
- Module Style: Feed-through analog interface module for straightforward signal routing.
- Compact Dimensions: Measures 6.96 × 11 × 8.3 cm, conserving panel space in dense installations.
- Application: Designed for use in digital/analog programmable controller wiring systems to streamline integration.
The 1492-AIFM8-3 delivers the reliability and precision required for efficient analog wiring in industrial automation systems.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
