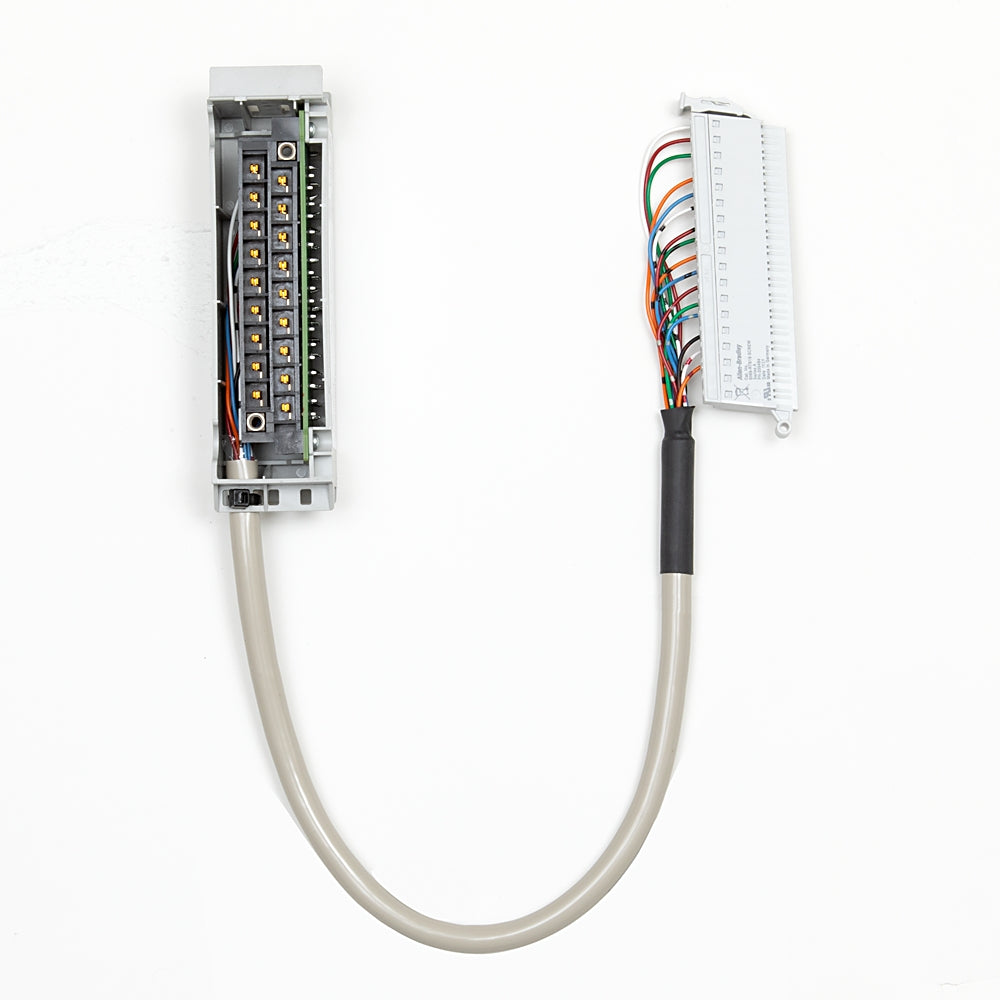

1492-CM1746-M01 | Allen-Bradley Conversion Module
- Regular price
- $687.00
- Sale price
- $687.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

Product Description P/N: 1492-CM1746-M01
Description
The Allen-Bradley 1492-CM1746-M01 is a conversion module designed to facilitate the transition from 1746 SLC™ I/O modules to Compact 5000™ I/O systems. This module enables the direct connection of existing 1746 removable terminal blocks to new 5069 I/O modules without the need to remove or rewire field wires, thereby minimizing wiring errors and reducing installation time.
Technical Specifications
Condition | New/Never Used Surplus |
Brand | Allen-Bradley |
Category |
Control Devices
|
Part Number | 1492-CM1746-M01 |
Subcategory | Conversion Modules |
Weight | 0.45 kgs |
Cable Length | 590 mm (23.22 in) |
Connector Type | 18 pins |
Current, Max | 2 A per channel, 8 A per module |
Feature | 120V AC input module, 240V AC input module, Current sinking DC input module, Fast response DC sinking input module |
Supply Voltage | 10 V DC |
Information About 1492-CM1746-M01
The Allen-Bradley 1492-CM1746-M01 is a conversion module designed to facilitate the transition from legacy 1746 SLC™ I/O modules to modern 5069 Compact 5000™ I/O systems. This module allows for the direct connection of existing 1746 removable terminal blocks (RTBs) to new 5069 I/O modules, streamlining the upgrade process without necessitating the removal or rewiring of field wires.
Key Features:
-
Compatibility: Supports the conversion of the following 1746 SLC I/O modules to their corresponding 5069 Compact 5000 I/O modules:
- 1746-IA16 to 5069-IA16
- 1746-IM16 to 5069-IA16
- 1746-IB16 to 5069-IB16
- 1746-ITB16 to 5069-IB16
-
Installation Efficiency: By enabling the direct insertion of existing 1746 RTBs into the 1492 conversion modules, the system minimizes wiring errors and reduces installation time.
-
Environmental Specifications:
- Operating Temperature: 0 °C to 60 °C (32 °F to 140 °F)
- Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
- Relative Humidity: 5% to 95% (non-condensing)
- Pollution Degree: 2
-
Certifications: The module complies with CE, c-UL-us, UL, and FM standards, ensuring adherence to international safety and performance requirements.
This conversion module is part of Rockwell Automation's comprehensive strategy to provide efficient migration solutions from legacy systems to contemporary I/O platforms, thereby enhancing system performance and reliability.
