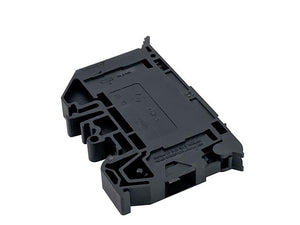

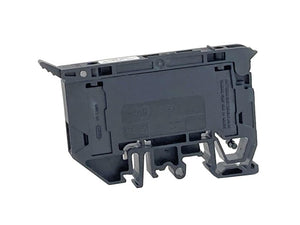

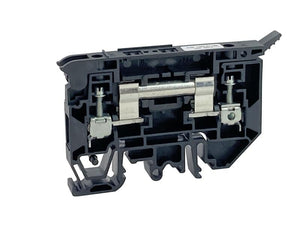

1492-H7 | Allen-Bradley Isolation Terminal Block
- Regular price
- $19.00
- Sale price
- $19.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1492-H7
Description
The Allen-Bradley 1492-H7 is a single-pole, handle-style isolating terminal block designed for safe and efficient circuit disconnection in industrial control systems. It features a finger-safe housing to minimize the risk of electric shock and is suitable for applications requiring reliable isolation of electrical circuits.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Panel Accessories
|
| Part Number | 1492-H7 |
| Subcategory |
Terminal Strip Wiring
|
| Connection Type | Screw Connection |
| Isolation Style | Handle Style Isolating |
| Dimensions (W x H x D) | 9.1 x 81.3 x 47 mm (0.36 x 3.20 x 1.85 in) |
| Number of Poles | 1 Pole |
| Color | Black |
| Voltage Rating (UR) | 300 V AC/DC |
| Voltage Rating (CSA) | 300 V AC/DC |
| Voltage Rating (IEC) | 500 V AC/DC |
| Maximum Current | 15 A |
| Weight | 0.02 kgs |
| Wire Range | #30 - #10 AWG |
Information About 1492-H7
The Allen-Bradley 1492-H7 is a handle-style isolating terminal block designed for safe and efficient circuit disconnection in industrial control systems. It features a finger-safe housing to minimize the risk of electric shock and is suitable for applications requiring reliable isolation of electrical circuits.
Key Features:
-
Type: Single-circuit isolation switch block
-
Termination: Screw clamp
-
Wire Range: #30 to #12 AWG (0.05 to 4 mm²)
-
Rated Voltage:
-
UL/CSA: 300 V AC/DC
-
IEC: 500 V AC/DC
-
-
Maximum Current: 15 A
-
Housing Color: Black
-
Mounting: DIN rail
-
Dimensions (W x H x D): 9.1 x 81.3 x 47 mm (0.36 x 3.20 x 1.85 in)
-
Housing Temperature Range: –40 to +105 °C (–40 to +221 °F)
-
Certifications: UL Recognized, CSA Certified, CE Marked
This terminal block is ideal for applications requiring compact, high-density wiring solutions with enhanced safety features. Its handle-style design allows for easy manual disconnection of circuits without the need for additional tools.
Description
The Allen-Bradley 1492-H7 is a single-pole, handle-style isolating terminal block designed for safe and efficient circuit disconnection in industrial control systems. It features a finger-safe housing to minimize the risk of electric shock and is suitable for applications requiring reliable isolation of electrical circuits.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Panel Accessories
|
| Part Number | 1492-H7 |
| Subcategory |
Terminal Strip Wiring
|
| Connection Type | Screw Connection |
| Isolation Style | Handle Style Isolating |
| Dimensions (W x H x D) | 9.1 x 81.3 x 47 mm (0.36 x 3.20 x 1.85 in) |
| Number of Poles | 1 Pole |
| Color | Black |
| Voltage Rating (UR) | 300 V AC/DC |
| Voltage Rating (CSA) | 300 V AC/DC |
| Voltage Rating (IEC) | 500 V AC/DC |
| Maximum Current | 15 A |
| Weight | 0.02 kgs |
| Wire Range | #30 - #10 AWG |
Information About 1492-H7
The Allen-Bradley 1492-H7 is a handle-style isolating terminal block designed for safe and efficient circuit disconnection in industrial control systems. It features a finger-safe housing to minimize the risk of electric shock and is suitable for applications requiring reliable isolation of electrical circuits.
Key Features:
-
Type: Single-circuit isolation switch block
-
Termination: Screw clamp
-
Wire Range: #30 to #12 AWG (0.05 to 4 mm²)
-
Rated Voltage:
-
UL/CSA: 300 V AC/DC
-
IEC: 500 V AC/DC
-
-
Maximum Current: 15 A
-
Housing Color: Black
-
Mounting: DIN rail
-
Dimensions (W x H x D): 9.1 x 81.3 x 47 mm (0.36 x 3.20 x 1.85 in)
-
Housing Temperature Range: –40 to +105 °C (–40 to +221 °F)
-
Certifications: UL Recognized, CSA Certified, CE Marked
This terminal block is ideal for applications requiring compact, high-density wiring solutions with enhanced safety features. Its handle-style design allows for easy manual disconnection of circuits without the need for additional tools.
