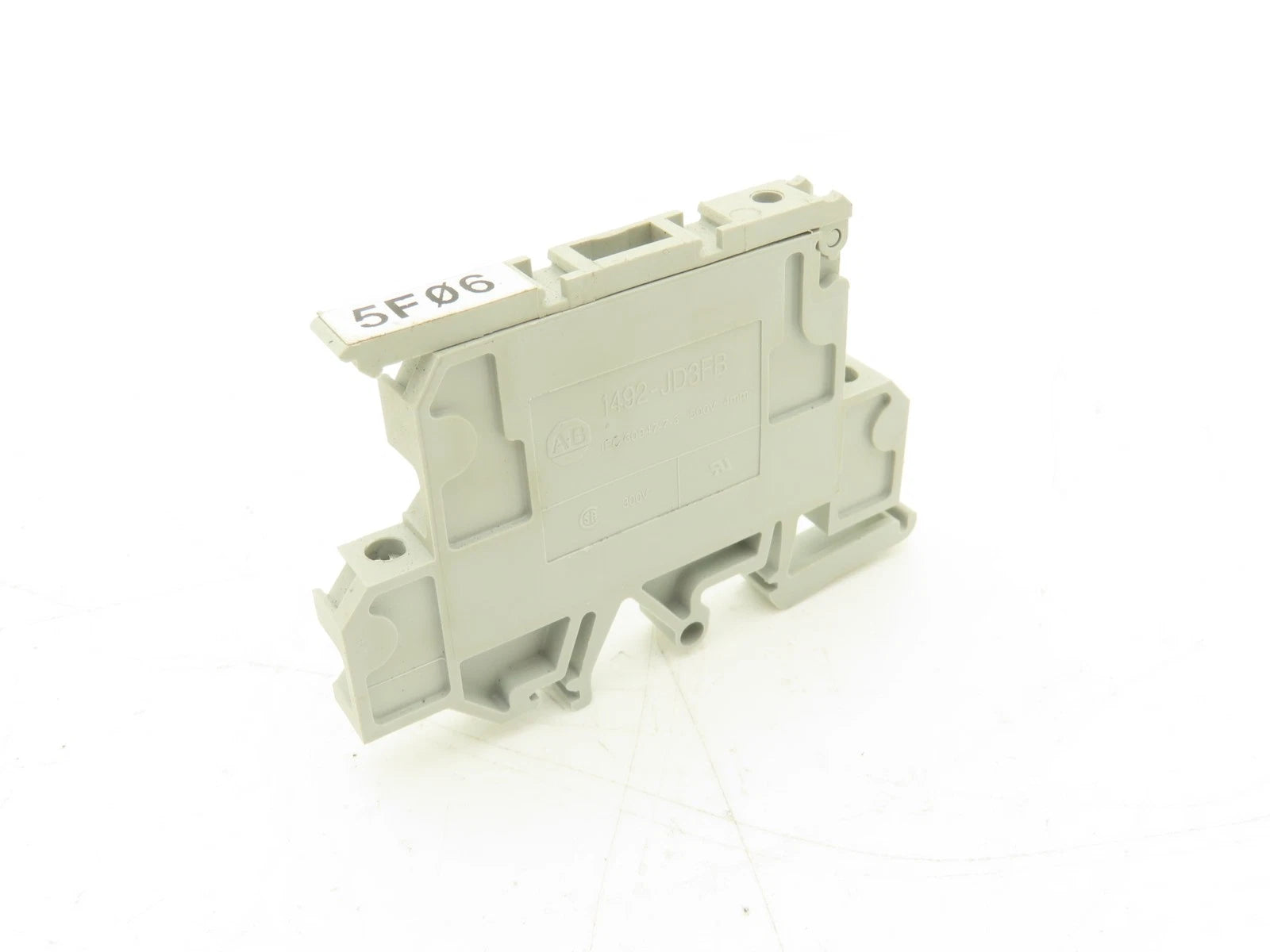

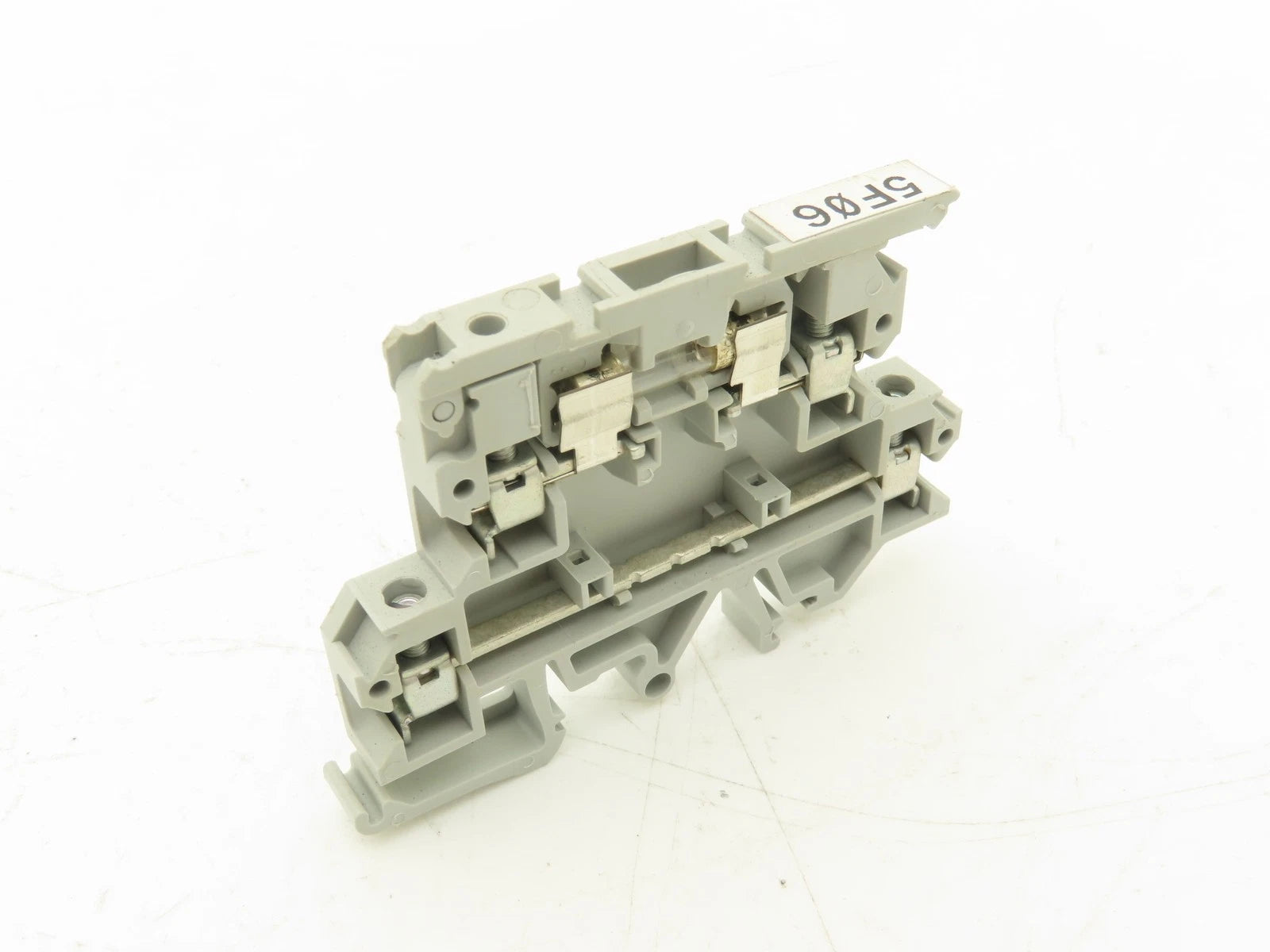

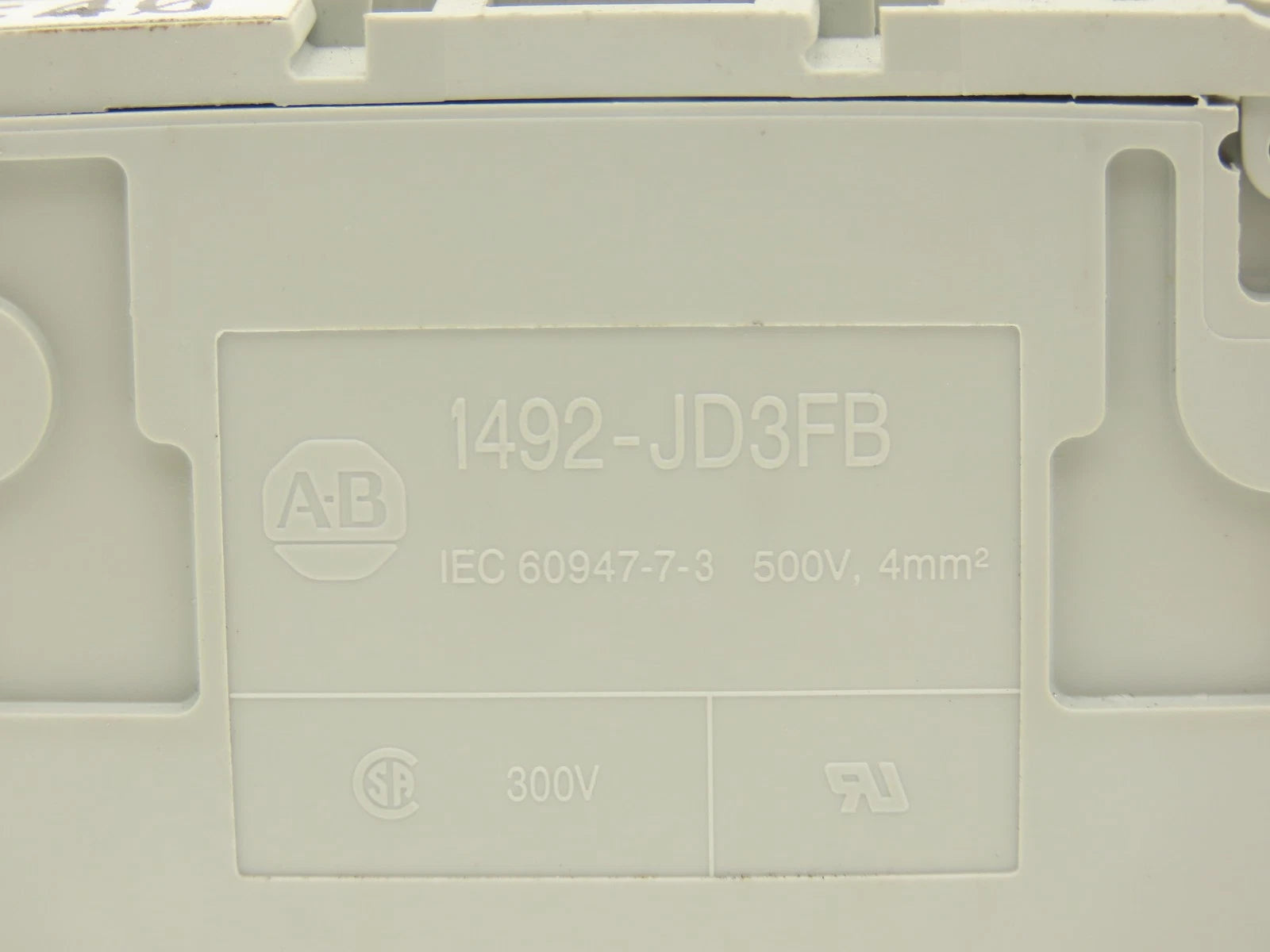

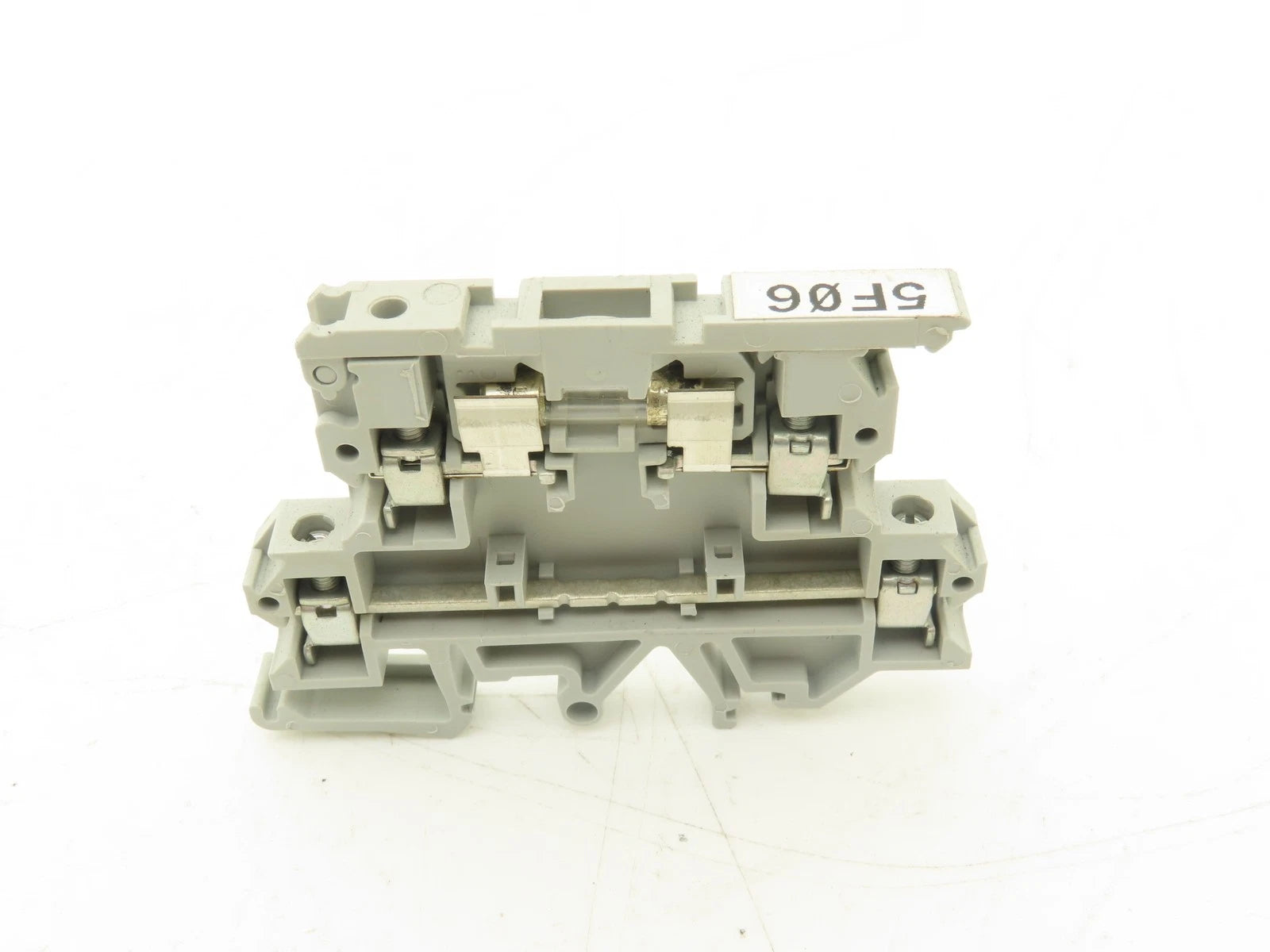

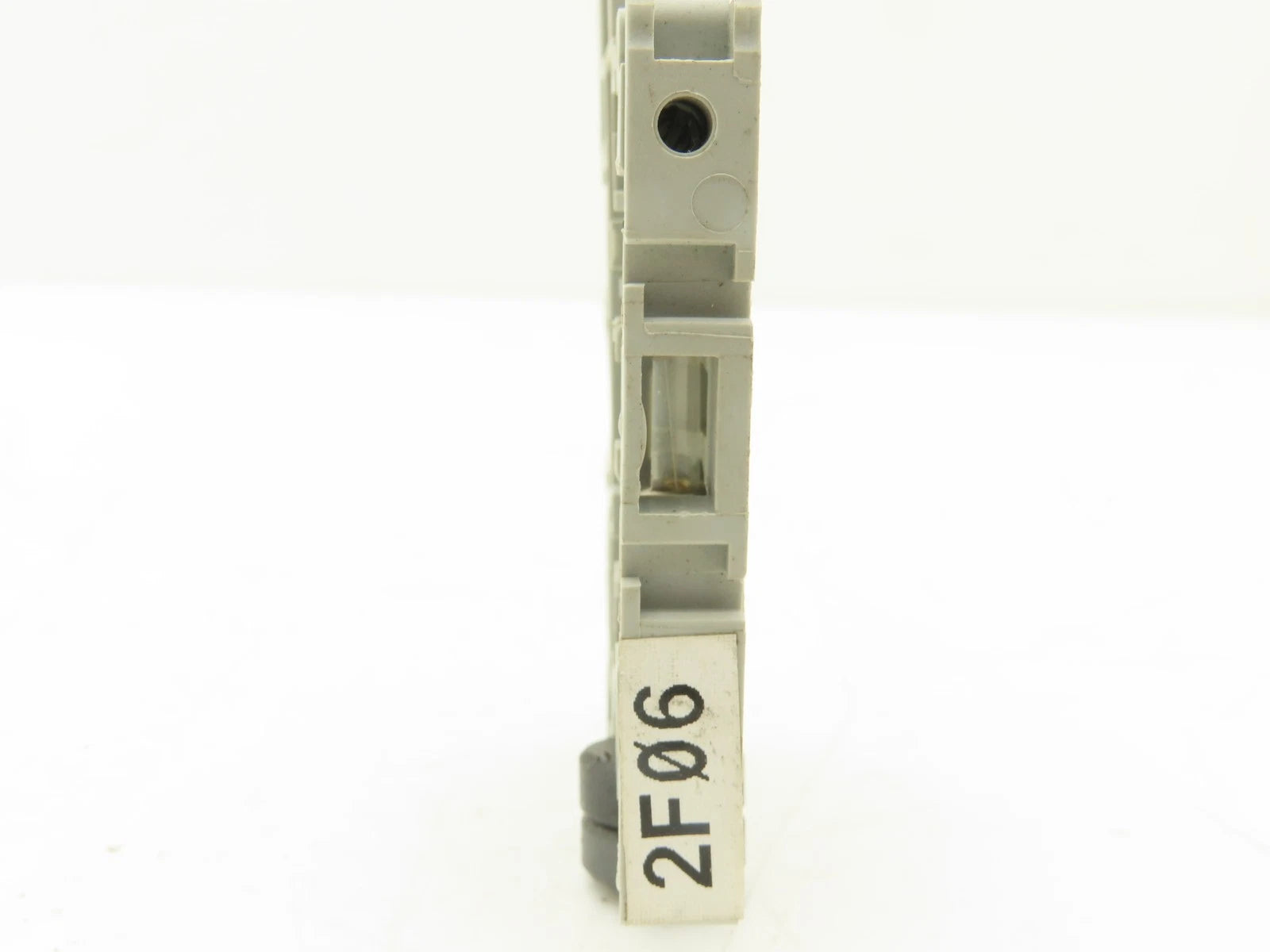

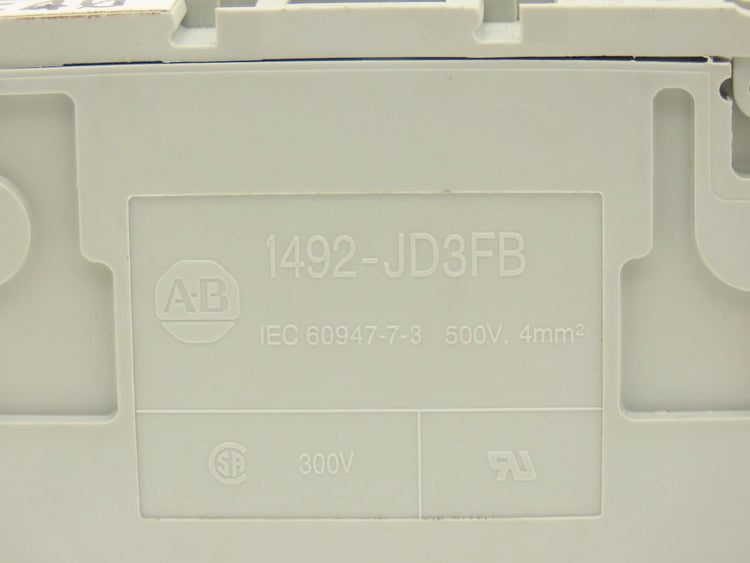

1492-JD3FB | Allen-Bradley two-level screw terminal block with feed-through and hinged fuse circuit
- Regular price
- $19.00
- Sale price
- $19.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 1492-JD3FB
Description
The Allen-Bradley 1492-JD3FB is a two-level terminal block designed for efficient feed-through wiring and fuse protection within industrial control panels. This part number 1492-JD3FB provides a compact solution for organizing conductors while integrating a hinged-arm fuse circuit for added circuit safeguarding. Its screw-terminal design supports dependable electrical connections in automation and power distribution systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Panel Accessories |
| Part Number | 1492-JD3FB |
| Subcategory | Terminal Strip Wiring |
| Base Block Style | Fuse Block |
| Base Block Type | Two-Level Block |
| Terminal Type | Screw Connection |
| Fuse Circuit | Hinged-arm fuse holder |
| Voltage Rating (IEC) | 500 V AC/DC |
| Voltage Rating (UR/CSA) | 300 V AC/DC |
| Current Rating | 10 A |
| Conductor/Wire Size | 14 AWG |
| Mounting Type | 35 mm DIN Rail |
| Temperature Rating | –50 °C to +120 °C |
| Standards Compliance | CCC, CE, CSA, KC, UL |
| Terminal Dimensions | 8 × 76.2 × 48 mm |
| Color | Gray |
| Poles | 1 |
| Weight | 0.11 kg |
Information About 1492-JD3FB
The 1492-JD3FB is an IEC-rated terminal block engineered as part of Allen-Bradley’s 1492 series for structured and reliable panel wiring. It incorporates a two-level block layout that enables efficient separation of feed-through and fused circuits within a single component. The unit is compatible with 35 mm DIN rail mounting, providing flexibility for integration into various automation enclosures. Built with durable materials and certified under multiple global standards, it supports demanding industrial applications requiring both circuit organization and protective fuse functionality.
Key Features:
- Two-Level Block Design: Offers separate paths for feed-through and fused wiring to optimize panel layouts.
- Hinged-Arm Fuse Holder: Allows easy fuse insertion and inspection while maintaining secure contact.
- Screw Terminal Connection: Provides stable mechanical and electrical fastening for reliable conductor retention.
- DIN Rail Mounting: Fits standard 35 mm DIN rails for quick installation in control assemblies.
- High Voltage Rating: Supports up to 500 V AC/DC per IEC standards for broad application compatibility.
- Wide Temperature Range: Operates from –50 °C to +120 °C to withstand harsh industrial conditions.
- Compact Dimensions: Measures 8 × 76.2 × 48 mm to conserve space in densely wired panels.
The 1492-JD3FB delivers the reliability and precision required for structured terminal wiring and fused circuit protection in control systems.
