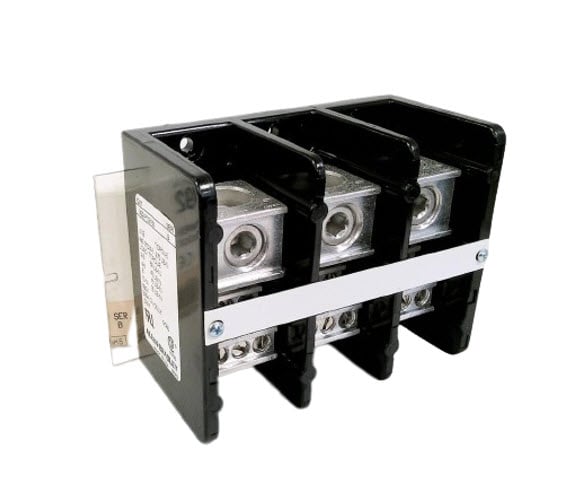

1492-PD3163 | Allen-Bradley Power Distribution Block

Description

The Allen-Bradley 1492-PD3163 Power Distribution Block is a compact, high-performance solution for distributing power across multiple circuits in industrial electrical systems. With a current rating of 100A and 600V, it features 3 input connections and 6 output connections, providing a reliable and organized way to manage power distribution.

Technical Specifications

Information About 1492-PD3163

The Allen-Bradley 1492-PD3163 Power Distribution Block is a highly durable and reliable device designed to distribute power across multiple circuits in industrial and commercial electrical systems. It simplifies the power distribution process by consolidating input and output connections in one compact unit, making it ideal for use in control panels, electrical enclosures, and machinery.

Key Features:

• Model: 1492-PD3163
• Type: Power Distribution Block
• Current Rating: Capable of handling up to 100A per phase, suitable for high-current industrial applications.
• Voltage Rating: Designed for 600V systems, making it compatible with a wide range of electrical installations.
• Number of Connections: Offers 3 input connections and 6 output connections, allowing for efficient power distribution across multiple circuits.
• Material Construction: Built with high-quality materials to ensure durability, longevity, and reliable performance in industrial environments.
• Screw-Clamp Terminals: Features secure screw-clamp terminals for reliable, safe connections.
• Compact Design: Its small size allows it to fit into space-constrained environments like control panels and electrical enclosures.
• Ease of Installation: Simple to install, reducing setup time and minimizing the need for complex wiring.

Benefits:

• Efficient Power Distribution: Consolidates multiple power connections, reducing wiring complexity and ensuring better organization of electrical systems.
• Safe and Reliable: Designed for high-current applications, it offers a secure method of power distribution while maintaining safety and reliability.
• Space-Saving: The compact size allows it to be installed in confined spaces, making it ideal for use in control panels and enclosures with limited room.
• Durable Performance: Built to handle the rigors of industrial environments, ensuring long-lasting, trouble-free operation.
• Easy to Use: With simple screw-clamp terminals and a user-friendly design, the distribution block is easy to wire and maintain.

Applications:

• Control Panels: Used to manage and distribute power to various circuits within industrial control panels.
• Industrial Equipment: Ideal for large machinery and power distribution systems where high current ratings are required.
• Automation Systems: Suitable for automating equipment and processes where reliable power management is essential.
• Electrical Enclosures: Perfect for organizing power connections in electrical enclosures, providing a neat and reliable power distribution point.
• Power Distribution Systems: Used in industrial power distribution systems to manage power flow to multiple circuits.

The Allen-Bradley 1492-PD3163 Power Distribution Block offers an efficient, durable, and space-saving solution for distributing power in industrial electrical systems, providing reliability and safety in demanding environments.
