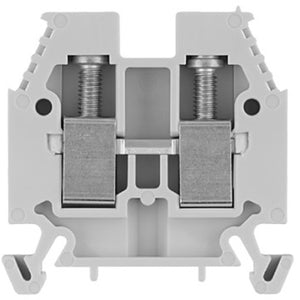

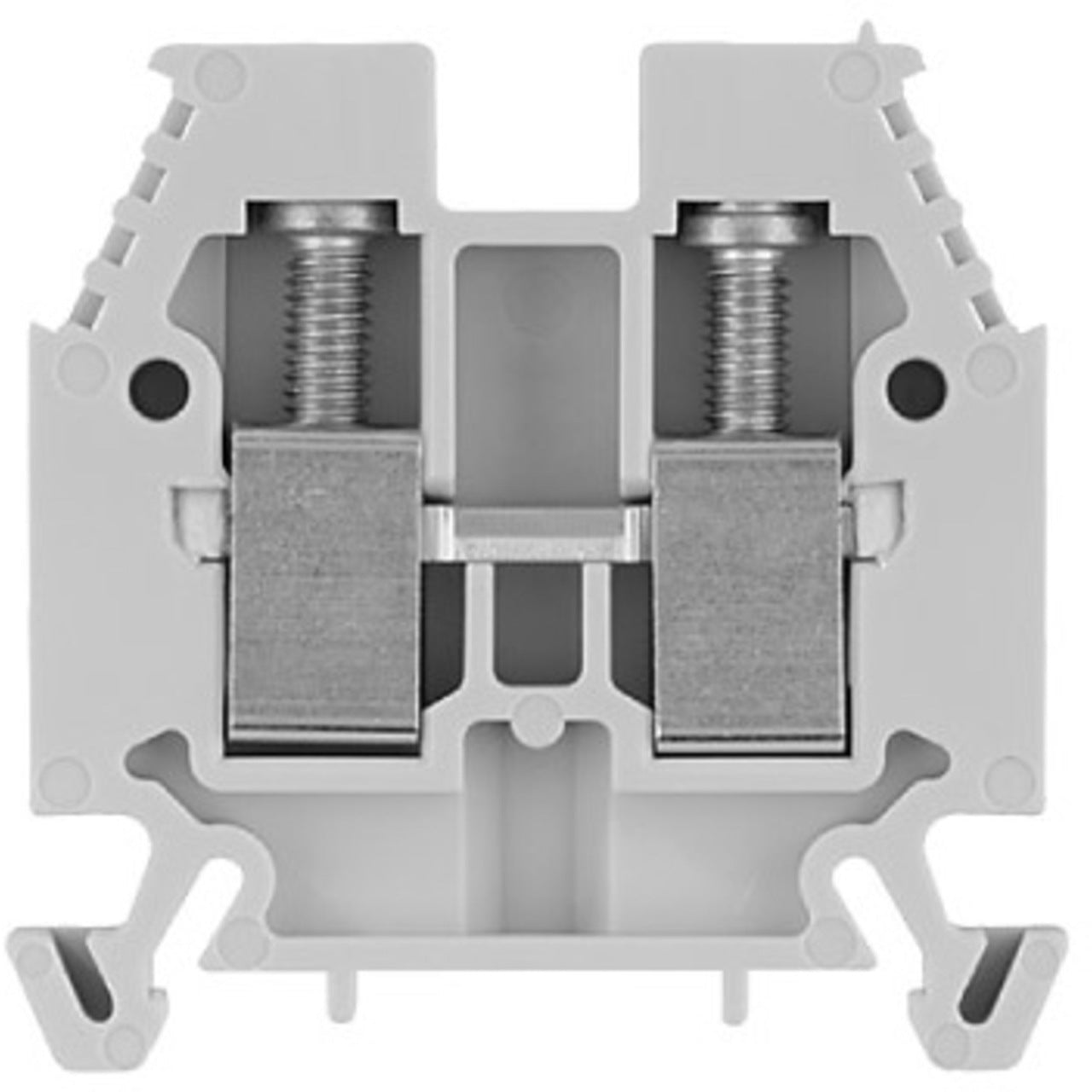

1492-W10 | Allen-Bradley Single-Circuit Screw Terminal Block, Gray
- Regular price
- $17.00
- Sale price
- $17.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1492-W10
Description
The Allen-Bradley 1492-W10 is a screw-type terminal block designed for space-saving feed-through single-circuit connections. It provides secure electrical termination with a 1-pole configuration rated up to 600V AC/DC (UR/CSA), 800V AC/DC (IEC), and 550V AC/DC (ATEX). This terminal block is widely used in control panels, industrial machinery, and automation systems.
Technical Specifications
| Brand | Allen-Bradley |
| Color | Gray (Standard) |
| Base Block Style | Standard Feed-Through Blocks |
| Base Block Type | Space-Saver Feed-Through Blocks |
| Features | Single-circuit terminal block |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.32...0.32 mm² |
| Connection position | Sideways |
| End plate required | yes |
| Height at lowest possible mounting height | 41 mm |
| Inflammability class of insulation material acc. with UL94 | V2 |
| Length | 47.6 mm |
| Material insulation body | Thermoplastic |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Number of clamp positions per level | 2 |
| Number of levels | 1 |
| Operation temperature | -40...90 °C |
| Rated current In | 57 A |
| Rated voltage | 800 V |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Width/grid dimension | 8 mm |
Information About 1492-W10
The 1492-W10 is part of the Allen-Bradley 1492 series of terminal blocks, engineered for compact and reliable wiring in electrical and automation systems. Measuring 8 x 47.6 x 41 mm, it features a screw connection design with a self-locking clamp and backed-out screws for quick installation. The feed-through configuration ensures straightforward single-circuit connections while maintaining finger-safe housing for operator protection. It includes tin-plated terminals and zinc chromate steel screws for long-term conductivity and durability. The unit supports up to 600V AC/DC in UL/CSA applications and 800V under IEC standards, making it suitable for diverse environments. Accessories such as snap-in marker cards and wire guides enhance flexibility in system labeling and wiring organization.
Key Features:
- Design: Space-saving single-circuit terminal block with compact 1-pole configuration.
- Connectivity: Screw connection with self-locking clamp for secure wiring.
- Dimensions: Compact housing measuring 8 x 47.6 x 41 mm (0.31 x 1.87 x 1.61 in).
- Voltage Rating: UR/CSA 600V AC/DC, IEC 800V AC/DC, ATEX 550V AC/DC.
- Current Capacity: Designed to handle high current with copper current bar and tin-plated surface.
- Safety: Finger-safe housing and counter-sunk clamping screws for operator protection.
- Ease of Use: Backed-out screws and four-sided funnel wire guides simplify installation.
- Accessories: Compatible with snap-in marker cards and a wide range of add-ons.
The 1492-W10 delivers the secure, compact, and reliable terminal connections required in industrial control and automation systems.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
