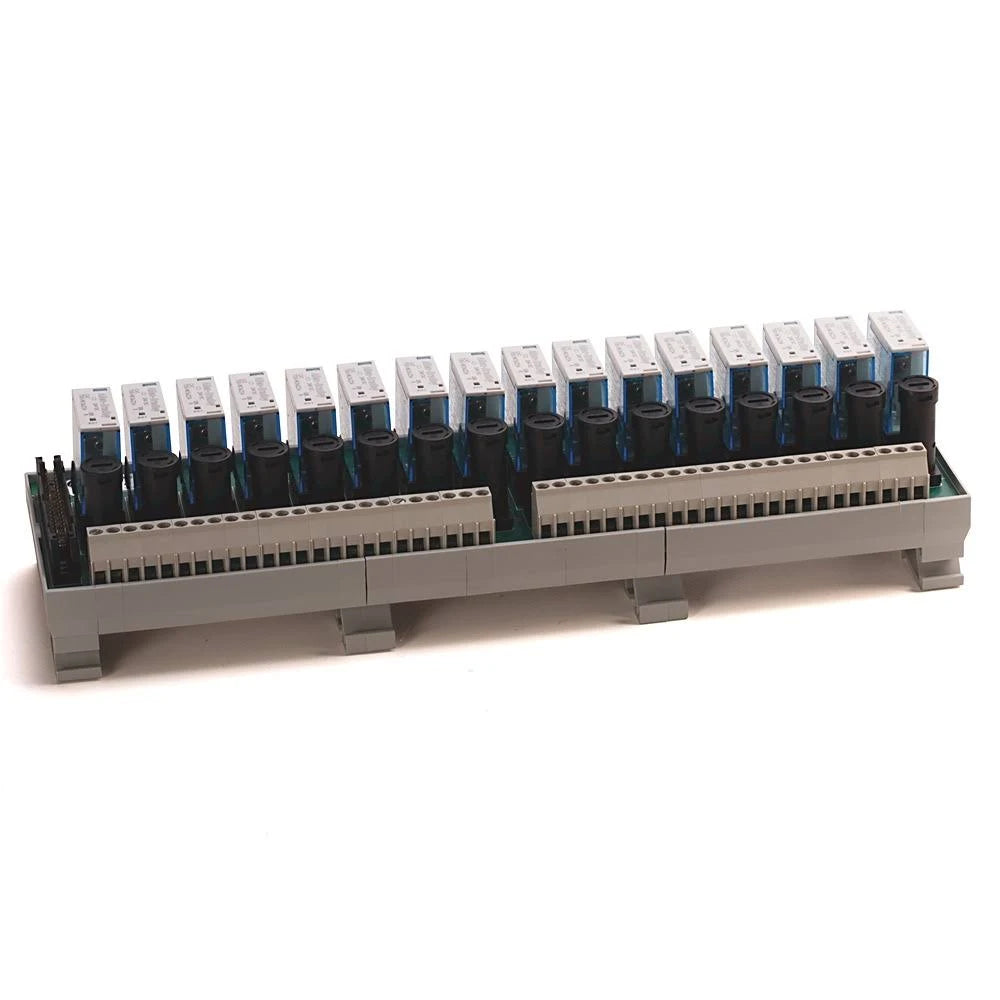

1492-XIM2024-16R | Allen-Bradley Relay Master Digital IFM 20-Pin
- Regular price
- $434.00
- Sale price
- $434.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1492-XIM2024-16R
Description
The Allen-Bradley 1492-XIM2024-16R is a 20-pin relay interface module designed to simplify and centralize wiring between controllers and field devices. With its compact design and 24VDC operation, it provides reliable relay interfacing for industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Circuit Breaker
|
| Part Number | 1492-XIM2024-16R |
| Subcategory | Circuit Breaker Accessory |
| Series |
1492-XIM
|
| Number of Relays | 16 |
| Connection Type | 20-Pin |
| Voltage | 24VDC |
| Amperage Rating | 10/12A per circuit; 96A total module |
| Nominal Indicator Current | 2 mA |
| Temperature Range | 0°C to 60°C |
| Terminal Type | Fixed Terminal Block |
| Standards Compliance | C-TICK, CCC, CE, CUL, UL |
| Weight | 1.8900 lb |
Information About 1492-XIM2024-16R
The 1492-XIM2024-16R is part of Allen-Bradley’s 1492-XIM series of interface modules, developed to streamline digital relay control. This 20-pin relay master digital IFM supports 16 relays, each rated at 10/12A per circuit (96A total per module). It operates at 24VDC, ensuring compatibility with most standard control systems. The module features a nominal indicator circuit current of 2 mA, enabling easy status monitoring. It is built to operate within a temperature range of 0°C to 60°C, making it suitable for most industrial environments. Certified to C-TICK, CCC, CE, CUL, and UL standards, the module ensures compliance and reliability in global installations.
Key Features:
- 16 Relay Outputs: Consolidates digital relay outputs into a single, easy-to-manage module.
- 20-Pin Connection: Facilitates organized wiring and quick installation.
- High Current Handling: Supports 10/12A per circuit and 96A total module rating.
- Nominal Indicator Circuit: Provides 2 mA nominal current for reliable status monitoring.
- 24VDC Operation: Compatible with most industrial control voltage levels.
- Fixed Terminal Block: Simplifies wiring and reduces installation time.
- Wide Temperature Range: Operates reliably from 0°C to 60°C.
- Compact Design: Saves panel space while maintaining robust functionality.
- Standards Compliant: Meets C-TICK, CCC, CE, CUL, and UL requirements for global use.
- Rugged Construction: Suitable for harsh industrial environments.
The 1492-XIM2024-16R offers a reliable and efficient solution for digital relay interfacing in industrial automation systems.
