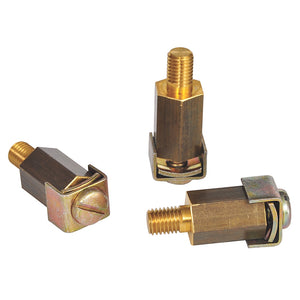

1494U-ALT31 | Allen-Bradley Line Terminal Adapter

Description

The Allen-Bradley 1494U-ALT31 is a line terminal adapter designed for use with 1494U disconnect switches. It facilitates secure and efficient line-side wiring connections, helping streamline installation and improve accessibility in electrical panel setups.

Technical Specifications

Information About 1494U-ALT31

The Allen-Bradley 1494U-ALT31 is a line terminal adapter kit specifically designed for use with 1494U Series universal AC disconnect switches. This accessory simplifies the installation of line-side power connections, providing a secure, code-compliant termination point for incoming conductors. The adapter helps reduce installation time and supports a neater, more organized wiring layout in industrial control panels.

Key Features:

• Product Type: Line Terminal Adapter

• Series Compatibility: Allen-Bradley 1494U universal disconnect switches

• Function: Facilitates connection of incoming line conductors to the disconnect switch

• Installation: Mounts directly to the line side of the disconnect switch terminals

• Construction: Durable, high-strength thermoplastic or metal housing (model-specific)

• Voltage Rating: Matches the rating of the compatible disconnect switch (typically up to 600V AC)

• Amp Rating Compatibility: Designed for specific amperage ranges within the 1494U family (e.g., 30A, 60A, 100A — verify per model)

• Mounting: Panel-mounted accessory; no special tools required

• Standards Compliance:

  • UL Recognized

  • CSA Certified

  • Meets requirements for industrial control applications

• Use Environment: Indoor electrical enclosures and industrial panel boards

The Allen-Bradley 1494U-ALT31 is an essential accessory for professionals seeking to streamline line-side wiring in disconnect switch applications, ensuring a safe, efficient, and standards-compliant electrical installation.
