1494U-D60 | Allen-Bradley Visible Blade

Description

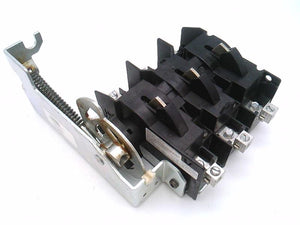

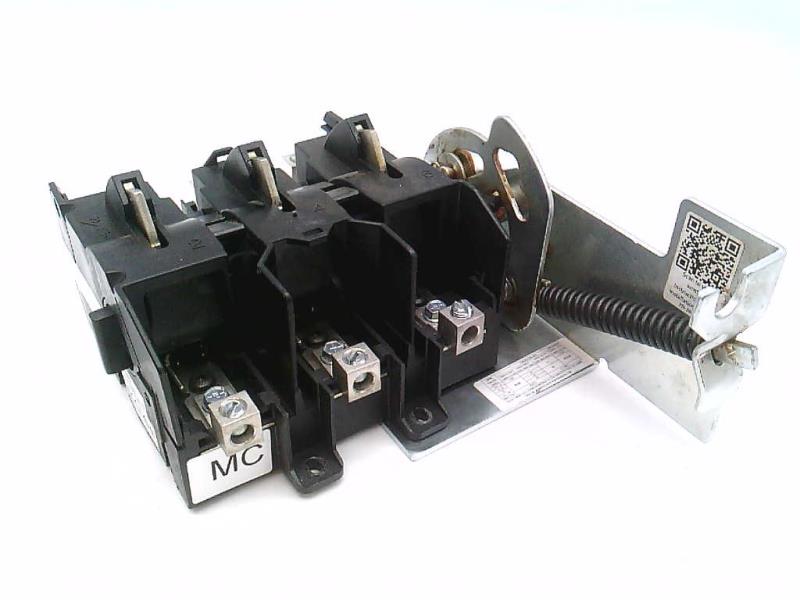

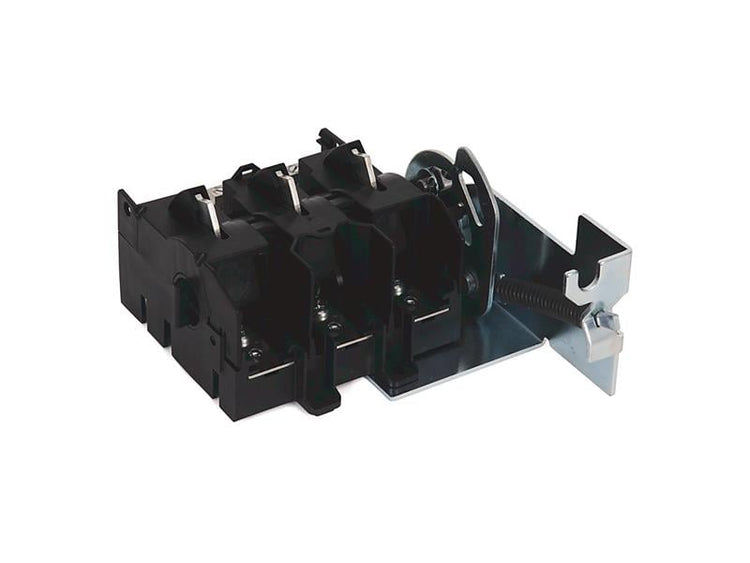

The Allen-Bradley 1494U-D60 is a 60 A universal visible-blade disconnect switch designed to provide clear visual indication of its ON or OFF status.

Technical Specifications

Information About 1494U-D60

The Allen-Bradley 1494U-D60 is a universal visible blade disconnect switch designed to provide safe, reliable circuit isolation with a clear visual indication of switch status in industrial power distribution systems.

Key Features:

• Rated Current: 60 A, suitable for disconnecting power in medium-load industrial systems

• Voltage Rating: 600 VAC / 600 VDC, capable of handling both AC and DC applications

• Mechanism Type: Universal mechanism, compatible with both rod and cable operation for flexible installation

• Blade Type: Visible blade design allows operators to visually confirm the ON/OFF state, enhancing safety

• Phase Compatibility: Supports both 1-phase and 3-phase systems for versatile application

• Mounting Configuration: Flange-mounted handle design with space-saving footprint for efficient panel integration

• Operator Flexibility: Optional flexible cable operator available in multiple lengths (3–6 ft)

• Safety Enhancements: Integrated phase barriers and line/load markings to simplify wiring and reduce errors

• Ingress Protection: IP20-rated protective cover offers finger-safe access to terminals

• Certifications: UL Listed, CSA Certified, CE Marked, and CCC Approved to meet international safety standards

• Application: Ideal for motor control centers, industrial panels, and general-purpose disconnect needs

• Packaging: Shipped as a single unit, ready for installation

This disconnect switch is part of the Allen-Bradley 1494U series, recognized for its durability, flexible configuration options, and clear visual blade indication. Its rugged design and safety-focused features make it a reliable solution for maintenance isolation and emergency shutdown in industrial environments.
