1494V-DS600 | Allen-Bradley Disconnect Switch 600A Non-Fusible
- Regular price
- $3,099.00
- Sale price
- $3,099.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1494V-DS600
Description

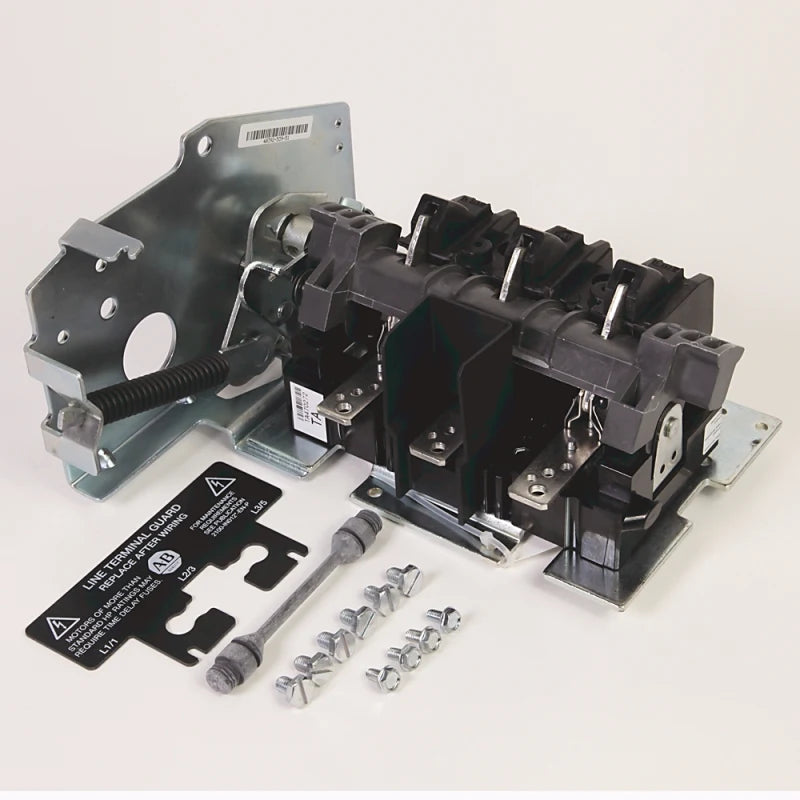

The Allen-Bradley 1494V-DS600 is a heavy-duty, right-handed, non-fusible disconnect switch rated for 600 A. Designed for flange mounting with variable-depth configuration, it provides robust isolation up to 600 VAC / 250 VDC in motor control and power distribution systems.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Panel Accessories
|
| Part Number | 1494V-DS600 |
| Subcategory | Disconnect Switch |
| Amperage Rating |
600 A
|
| Voltage Rating | 600 VAC / 250 VDC |
| Switch Type | Right-Handed, Variable Depth |
| Mounting Type | Flange Mount |
| Terminal Type | 1/2-13 Screw Lug |
| Wire Size | 1/0 AWG–350 kcmil, 4 AWG–500 kcmil |
| Operating Cycles | 10,000 |
| Load Ratings | 150–500 HP (200–575 V), 150–375 kW (220–600 V) |
| Enclosure Style | Open Type (Mountable) |
| Components Included | Switch Only (Handle, Rods, Fuse Blocks sold separately) |
| Certifications | CCC, CE, CSA, CUL, KC, UL |
| Temperature Range | -35°C to 40°C |
| Weight | 39.9100 lb |
Information About 1494V-DS600
The 1494V-DS600 is part of Allen-Bradley’s 1494V Series of non-fusible disconnect switches, engineered for high-current applications requiring safe, visible circuit disconnection. This open-style unit supports 600 A continuous current, operating at 600 VAC or 250 VDC. It is suitable for motors rated up to 500 HP at 575 V or 375 kW at 500–600 V, offering wide applicability across industrial installations. The switch is designed with a right-handed operating mechanism and supports variable-depth flange mounting, making it ideal for custom enclosures and panel integration. The terminal connection supports 1/0 AWG to 350 kcmil or 4 AWG to 500 kcmil conductors via 1/2-13 screw lugs.
Key Features:
- Amperage: Rated for 600 A continuous current.
- Voltage Rating: 600 VAC / 250 VDC maximum operating voltage.
- Mounting Style: Variable-depth flange mount for flexible panel integration.
- Switch Type: Non-fusible, right-handed disconnect switch for safety isolation.
- Conductor Size Compatibility: 1/0 AWG to 350 kcmil or 4 AWG to 500 kcmil.
- Connection: 1/2-13 screw lug terminal ensures secure and durable wire attachment.
- Load Ratings: Supports motor loads up to 500 HP at 575 V and up to 375 kW at 600 V.
- Cycle Life: 10,000 mechanical operations for reliable long-term switching.
- Component Configuration: Fuse blocks, handle, and rods sold separately for flexible assembly.
- Certifications: Compliant with CCC, CE, CSA, CUL, KC, and UL global safety standards.
The 1494V-DS600 is a durable and modular solution for high-current disconnection needs in industrial power systems.
