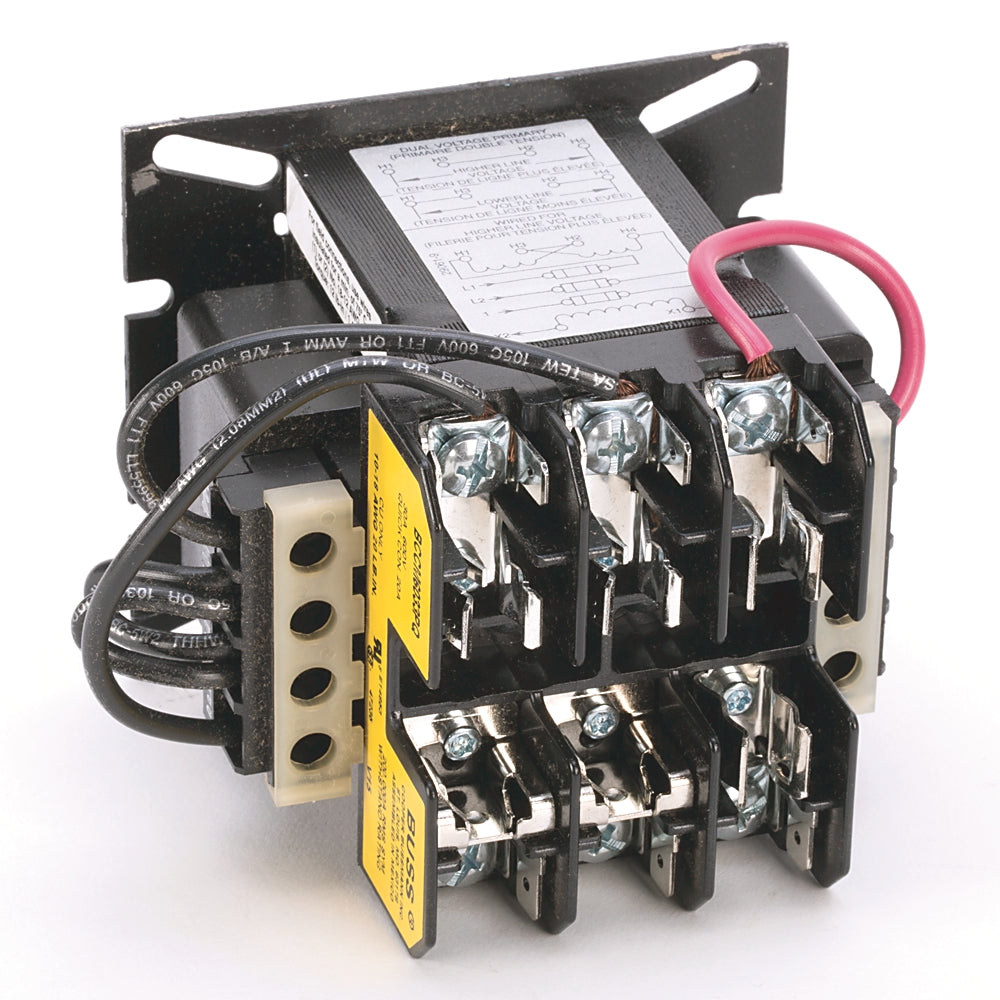

1497-B-BASX-3-N | Allen-Bradley CCT Standard Transformer, 80VA
- Regular price
- $159.00
- Sale price
- $159.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1497-B-BASX-3-N
Description
The Allen-Bradley 1497-B-BASX-3-N – CCT Standard Transformer, 130VA, 240/480V 60Hz / 220/440V 50Hz Primary, 110V 50Hz / 120V 60Hz Secondary, 2 Pri – 1 Sec Fuse Blocks, No Cover/ No Sec. Fuse.
Technical Specifications
| Rated apparent power | 80 VA |
| Secondary voltage | 110V-50 Hz/120V-60 Hz |
| Fuse block option | 2 primary-1 secondary |
| Secondary fuse size | 5 A @ 24V (per NEC) |
| Primary voltage | 240/480V-60 Hz/220/440V-50 Hz |
| Factory installed options | No cover/no secondary fuse |
| Inrush VA | 338VA @ 85% of rated secondary voltage, 40% power factor |
| Primary fuse size | 1.5 A @ 240V (when primary and secondary protection is used per NEC) |
| Short-circuit-proof | No |
Information About 1497-B-BASX-3-N
The Allen-Bradley 1497-B-BASX-3-N is a CCT (Control Circuit Transformer) Standard Transformer, designed for a variety of industrial and control applications. This technical description provides insight into its key features and specifications.
Key Features:
Voltage Rating: The 1497-B-BASX-3-N is designed to operate within a specified voltage range, ensuring compatibility with various electrical systems. It's important to note that this transformer comes in different voltage options, so the appropriate model must be selected for your specific application.
Power Rating (80VA): This transformer is capable of handling a power range of 80 Volt-Amperes, making it suitable for powering control circuits, sensors, relays, and other devices in industrial settings.
Robust Construction: Allen-Bradley is known for its durable and reliable products. The 1497-B-BASX-3-N is no exception, featuring a robust construction that can withstand the rigors of industrial environments.
Mounting Options: The transformer is designed for versatile mounting, allowing it to be conveniently installed in a variety of configurations to suit the needs of your application.
High Efficiency: This transformer is designed for high efficiency, ensuring minimal energy losses and lower operating costs.
Convenient Labeling: The clear labeling on the transformer makes it easy to identify connections, reducing the risk of wiring errors during installation.
Temperature Ratings: The 1497-B-BASX-3-N is designed to operate within specific temperature ranges, ensuring it performs reliably in various environmental conditions.
Wide Application Range: This transformer is suitable for various control and industrial applications, providing power for a wide range of electrical devices.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
