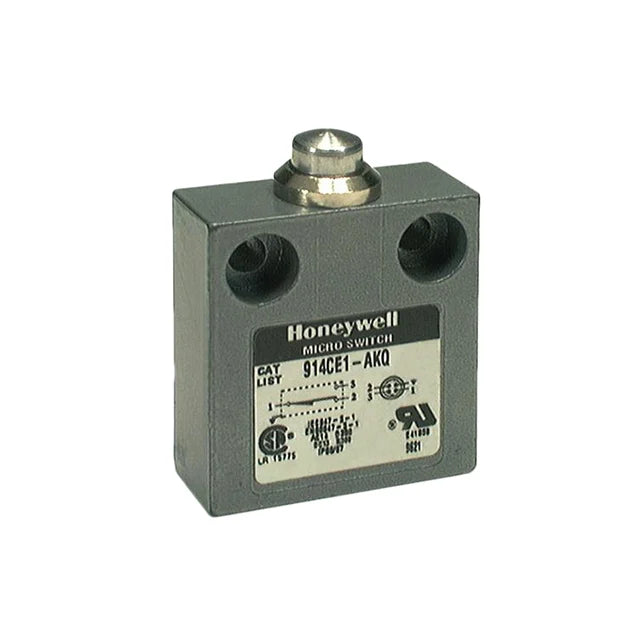

14CE101-6 | Honeywell Limit Switch Pin Plunger SPDT 5A
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

Product Description P/N: 14CE101-6
Description
The Honeywell 14CE101-6 is a rugged, industrial-grade snap action limit switch with a pin plunger actuator and SPDT contact configuration. Designed for precise position detection and reliable switching, it operates at up to 240VAC with a 5A current rating and offers IP65 protection for dust- and water-resistant performance in harsh environments.
Technical Specifications
Condition | New/Never Used Surplus |
Brand | Honeywell |
Category | Industrial Switches |
Part Number | 14CE101-6 |
Subcategory | Limit Switch |
Series | 14CE100 |
Type | Snap action limit switch |
Contact Configuration | SPDT (1CO – single changeover) |
Switch Function | Momentary (On-Mom) |
Actuator Type | Round pin plunger |
Head Type | Top plunger head |
Current Rating | 5A (AC) |
Voltage Rating | 240VAC maximum |
Operating Force (Max) | 11.8 N (≈1200 gf) |
Release Force | 4.4 N (≈450 gf) |
Operating Position | 0.618" (15.7 mm) |
Pretravel | 0.071" (1.8 mm) |
Overtravel | 0.118" (3.0 mm) |
Differential Travel | 0.004" (0.1 mm) |
Housing Material | Die-cast zinc alloy |
Mounting Type | Chassis mount |
Termination Style | Cable leads |
Ingress Protection | IP65 (dust-tight, water-resistant) |
Enclosure Feature | Explosion proof construction |
Operating Temperature Range | Standard industrial range |
Compliance | RoHS compliant |
Weight | 1.894 lbs |
Information About 14CE101-6
The Honeywell 14CE101-6 is part of the 14CE100 Series, engineered for industrial automation and machinery applications that demand high reliability and environmental protection. This snap action limit switch features a pin plunger actuator that delivers precise mechanical response with minimal pretravel and differential travel. The die-cast zinc housing provides mechanical strength and corrosion resistance, while IP65 protection ensures dependable operation in environments exposed to dust or moisture. Its SPDT configuration supports both normally open and normally closed circuits, allowing versatile use in control, position detection, and safety interlock systems.
Key Features
- SPDT Snap Action Contacts: Provides both normally open and normally closed circuits for flexible control integration.
- Pin Plunger Actuator: Round plunger design ensures accurate, repeatable actuation with minimal movement.
- Industrial-Grade Durability: Die-cast zinc housing resists corrosion and mechanical impact in harsh conditions.
- High Electrical Ratings: Handles up to 5A at 240VAC for dependable load switching in industrial circuits.
- Precision Travel Characteristics: Features short pretravel (1.8mm) and tight differential travel (0.1mm) for precise switching response.
- Explosion-Proof and Sealed: Designed for operation in hazardous or dusty areas with IP65 ingress protection.
- Wide Application Use: Suitable for machinery, conveyors, safety interlocks, and process automation systems.
- Easy Installation: Chassis-mount design with cable lead termination simplifies connection and replacement.
The 14CE101-6 delivers the reliability and precision required for demanding industrial automation, safety, and position-sensing applications.
