14CE28-2 | Honeywell 14CE Series SPDT Enclosed Limit Switch Roller Plunger
- Regular price
- $497.80
- Sale price
- $497.80
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 14CE28-2
Description

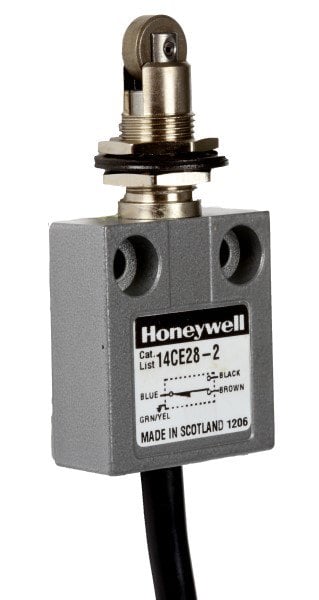

The Honeywell 14CE28-2 is an enclosed basic limit switch from the MICRO SWITCH™ 14CE Series, designed for reliable position sensing in industrial equipment. Featuring an SPDT snap-action contact mechanism and a top roller plunger actuator, it is rated at 5A up to 240 VAC. Its sealed zinc die-cast housing provides durable protection for demanding machine control environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Electromechanical Components |
| Part Number | 14CE28-2 |
| Subcategory | Limit Switches |
| Series | 14CE |
| Contact Form | SPDT (1NC / 1NO) |
| Contact Action | Snap Action |
| Current Rating | 5 A (Thermal) |
| Voltage Rating AC | 240 VAC |
| Actuator Type | Top Roller Plunger |
| Operating Force (Max) | 11.8 N |
| Release Force (Max) | 4.4 N |
| Pretravel | 1.0 mm ± 0.5 mm |
| Overtravel | 3.0 mm min. |
| Differential Travel | 0.1 mm max. |
| Termination Type | 2 m Side Exit Cable |
| Housing Material | Zinc Die-Cast |
| IP Rating | IP65 |
| NEMA Rating | 1, 3 |
| Operating Temperature Range | 0°C to 70°C |
| Mechanical Life | Up to 10 Million Operations |
| RoHS Compliant | Yes |
| Weight | 0.80 lb |
Information About 14CE28-2
The 14CE28-2 belongs to Honeywell’s 14CE Series miniature enclosed limit switches, engineered for compact installations requiring environmental sealing and precise actuation. It incorporates a 1NC/1NO SPDT snap-action contact configuration for flexible integration into control circuits. The switch is equipped with a top roller plunger actuator and side exit cable termination, supporting straightforward installation in machinery and conveyor systems. Designed with IP65 sealing and NEMA 1 and 3 ratings, it is suitable for industrial applications where protection against dust and splashing water is required.
Key Features:
- SPDT Snap-Action Contacts: Provides 1NC and 1NO outputs for versatile control integration.
- Top Roller Plunger Actuator: Enables smooth and accurate mechanical actuation.
- 5A at 240 VAC Rating: Suitable for industrial control circuits.
- IP65 Sealed Housing: Protects against dust ingress and water spray.
- Zinc Die-Cast Enclosure: Ensures durability in harsh operating conditions.
- Side Exit Cable Termination: Simplifies installation and wiring management.
- High Mechanical Life: Rated up to 10 million operations.
- Precise Travel Characteristics: Controlled pretravel, overtravel, and minimal differential travel for accurate switching.
The 14CE28-2 delivers the reliability and precision required for industrial position detection and machine control systems.
Description
The Honeywell 14CE28-2 is an enclosed basic limit switch from the MICRO SWITCH™ 14CE Series, designed for reliable position sensing in industrial equipment. Featuring an SPDT snap-action contact mechanism and a top roller plunger actuator, it is rated at 5A up to 240 VAC. Its sealed zinc die-cast housing provides durable protection for demanding machine control environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Electromechanical Components |
| Part Number | 14CE28-2 |
| Subcategory | Limit Switches |
| Series | 14CE |
| Contact Form | SPDT (1NC / 1NO) |
| Contact Action | Snap Action |
| Current Rating | 5 A (Thermal) |
| Voltage Rating AC | 240 VAC |
| Actuator Type | Top Roller Plunger |
| Operating Force (Max) | 11.8 N |
| Release Force (Max) | 4.4 N |
| Pretravel | 1.0 mm ± 0.5 mm |
| Overtravel | 3.0 mm min. |
| Differential Travel | 0.1 mm max. |
| Termination Type | 2 m Side Exit Cable |
| Housing Material | Zinc Die-Cast |
| IP Rating | IP65 |
| NEMA Rating | 1, 3 |
| Operating Temperature Range | 0°C to 70°C |
| Mechanical Life | Up to 10 Million Operations |
| RoHS Compliant | Yes |
| Weight | 0.80 lb |
Information About 14CE28-2
The 14CE28-2 belongs to Honeywell’s 14CE Series miniature enclosed limit switches, engineered for compact installations requiring environmental sealing and precise actuation. It incorporates a 1NC/1NO SPDT snap-action contact configuration for flexible integration into control circuits. The switch is equipped with a top roller plunger actuator and side exit cable termination, supporting straightforward installation in machinery and conveyor systems. Designed with IP65 sealing and NEMA 1 and 3 ratings, it is suitable for industrial applications where protection against dust and splashing water is required.
Key Features:
- SPDT Snap-Action Contacts: Provides 1NC and 1NO outputs for versatile control integration.
- Top Roller Plunger Actuator: Enables smooth and accurate mechanical actuation.
- 5A at 240 VAC Rating: Suitable for industrial control circuits.
- IP65 Sealed Housing: Protects against dust ingress and water spray.
- Zinc Die-Cast Enclosure: Ensures durability in harsh operating conditions.
- Side Exit Cable Termination: Simplifies installation and wiring management.
- High Mechanical Life: Rated up to 10 million operations.
- Precise Travel Characteristics: Controlled pretravel, overtravel, and minimal differential travel for accurate switching.
The 14CE28-2 delivers the reliability and precision required for industrial position detection and machine control systems.
