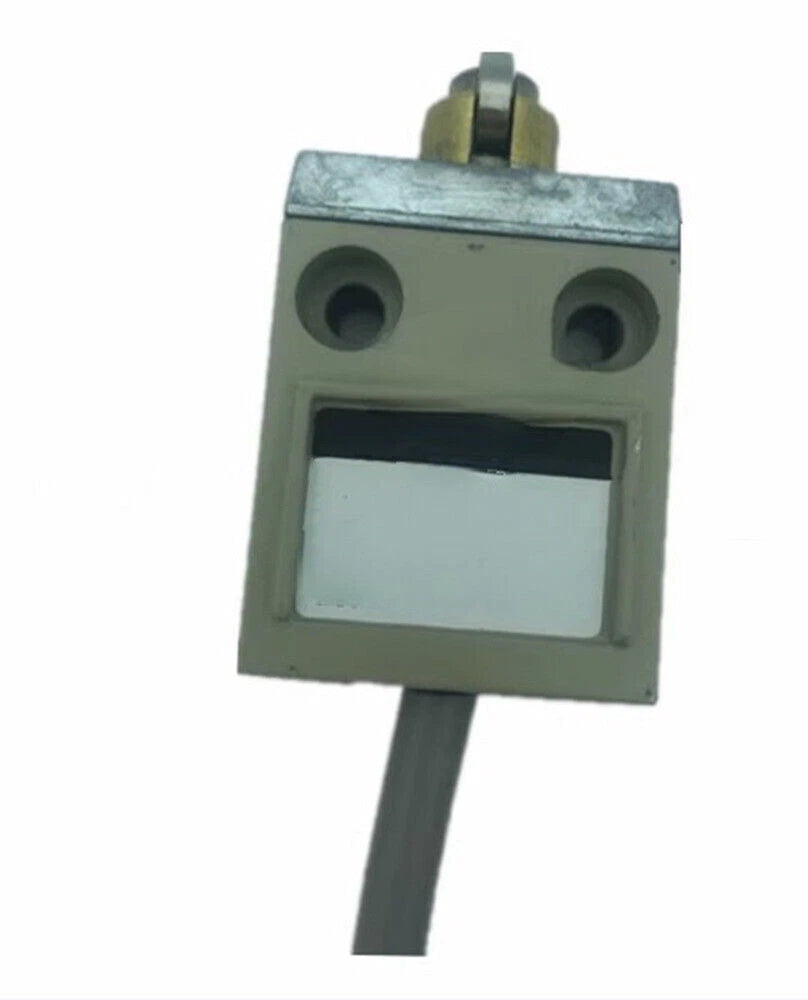

14CE3-6 | Honeywell SPDT Roller Plunger Sealed Limit Switch 240VAC
- Regular price
- $153.90
- Sale price
- $153.90
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 14CE3-6
Description
The Honeywell 14CE3-6 is a sealed limit switch designed for position detection and control in industrial automation systems. It features SPDT snap-action contacts and a roller plunger actuator for reliable mechanical switching. This switch is built to operate in demanding environments requiring environmental sealing and long service life.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Panel Accessories |
| Part Number | 14CE3-6 |
| Subcategory | Panel Accessory |
| Contact Form | SPDT (1NO/1NC) |
| Actuator Type | Roller Plunger |
| Current Rating | 5 A |
| Voltage Rating (AC) | 240 VAC |
| Thermal Current | 1 A / 3 A / 5 A (model dependent) |
| Rated Insulation Voltage (Ui) | 250 V |
| Rated Impulse Withstand Voltage (Uimp) | 1.5 kV |
| Operating Force | 11.8 N |
| Mechanical Life | Up to 10 million operations |
| Ingress Protection | IP65 (configurations up to IP68) |
| Operating Temperature | 0°C to 70°C (optional -40°C to 70°C) |
| Termination Style | Wire Lead (CENELEC cable) |
| Weight | 3.00 lbs |
Information About 14CE3-6
The 14CE3-6 is part of Honeywell’s CE Series limit switches, developed to meet international industrial standards for durability and environmental protection. It incorporates snap-action SPDT contacts (1NO/1NC) to provide precise switching at defined actuation points. The device is sealed to IP65 and higher ratings depending on configuration, supporting use in environments exposed to dust, moisture, and washdown conditions. Designed with harmonized CENELEC cable termination, it is suitable for integration into machinery, material handling systems, and industrial control panels.
Key Features:
-
SPDT Snap-Action Contacts: Provides one normally open and one normally closed contact for flexible control logic.
-
Roller Plunger Actuator: Ensures consistent actuation in linear motion applications.
-
Environmental Sealing: Rated IP65 and higher configurations for protection against dust and water ingress.
-
High Mechanical Life: Designed for up to 10 million mechanical operations.
-
240 VAC Rating: Supports switching loads up to 5 A at 240 VAC.
-
Wide Temperature Capability: Operates from 0°C to 70°C (optional -40°C to 70°C).
-
Insulation Strength: Rated insulation voltage of 250 V and impulse withstand voltage of 1.5 kV.
The 14CE3-6 delivers the reliability and precision required for position sensing and control in industrial automation systems.
