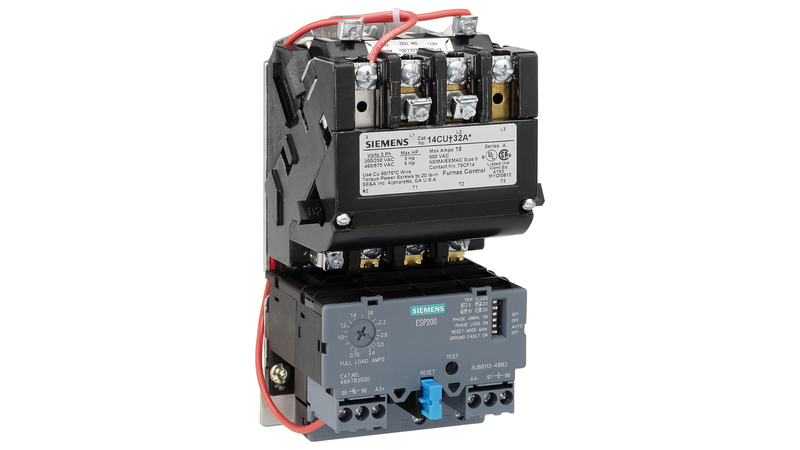

14DUE32AA | Siemens Motor Starter

Description

The Siemens 14DUE32AA is a NEMA Size 1, full-voltage non-reversing (FVNR) motor starter designed for three-phase industrial applications. It features a solid-state overload relay with a 10–40 A adjustable range and a dual-voltage coil (110–120/220–240 VAC, 60 Hz).

Technical Specifications

Information About 14DUE32AA

The Siemens 14DUE32AA is a NEMA Size 1, full-voltage non-reversing (FVNR) motor starter designed for three-phase industrial applications. It features a solid-state overload relay with a 10–40 A adjustable range and a dual-voltage coil (110–120/220–240 VAC, 60 Hz). This open-style starter is rated for up to 7.5 HP at 230 V and 27 A at 600 V, making it ideal for machine tools, compressors, and material handling systems. It includes a 1NO auxiliary contact and supports automatic, manual, or remote reset modes. The unit is UL and CSA certified and is built for durability in demanding environments.

Key Features:

• Starter Type: Full-voltage non-reversing (FVNR)

• NEMA Size: 1

• Phase: Three-phase

• Voltage Rating: 600 VAC

• Current Rating: 27 A

• Horsepower Rating:

  • 7.5 HP at 200/230 V

  • Not specified for 460/575 V

• Overload Relay: Solid-state, adjustable 10–40 A

• Coil Voltage: Dual voltage 110–120/220–240 VAC, 60 Hz

• Enclosure: Open (no enclosure)

• Auxiliary Contacts: 1 Normally Open (NO)

• Reset Options: Manual, automatic, and remote

• Certifications: UL, CSA

• Country of Origin: Mexico

This motor starter is suitable for applications requiring reliable motor control, such as in machine tools, compressors, and material handling equipment. Its solid-state overload relay provides protection against overloads, phase failure, and ground faults. The dual-voltage coil allows for flexibility in control voltage applications.
