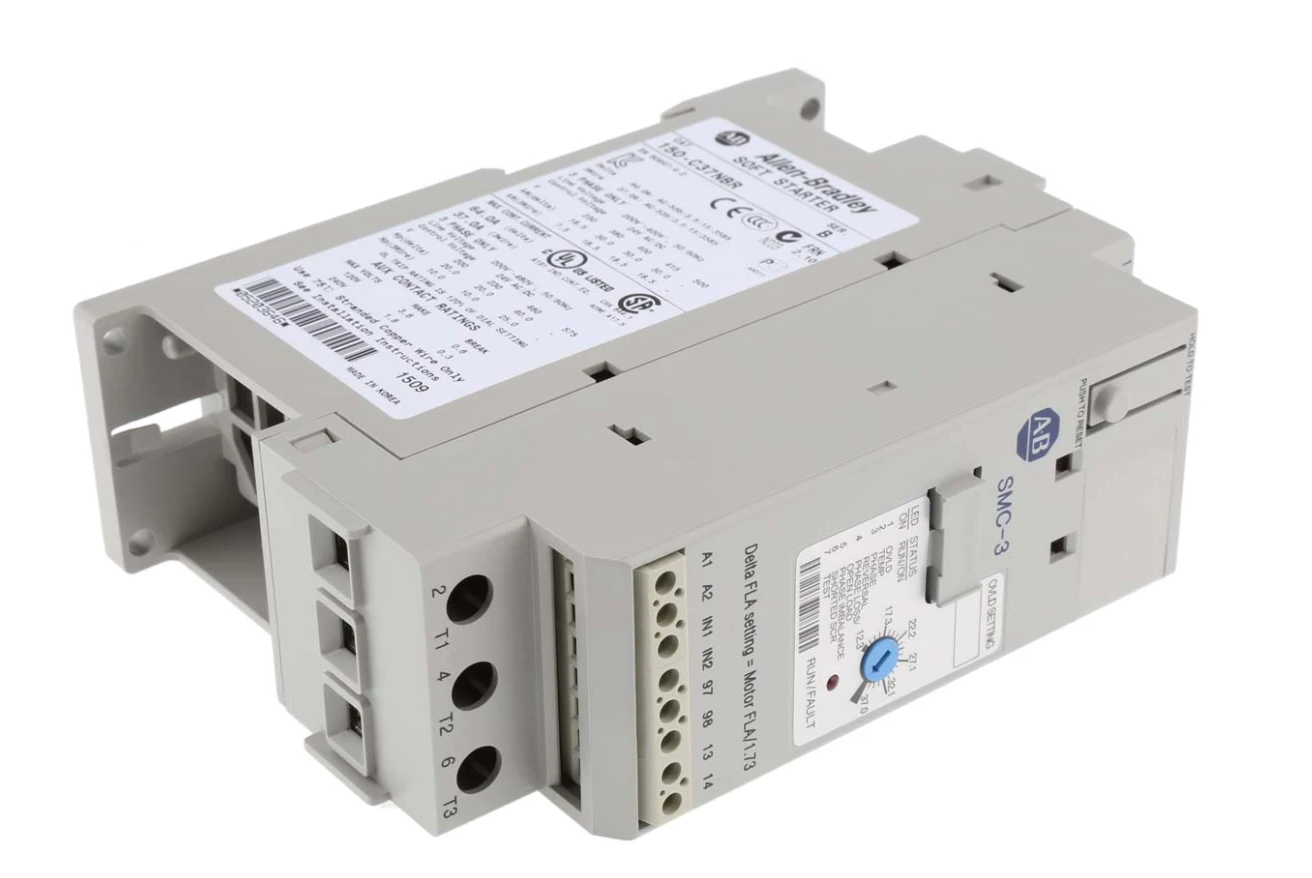

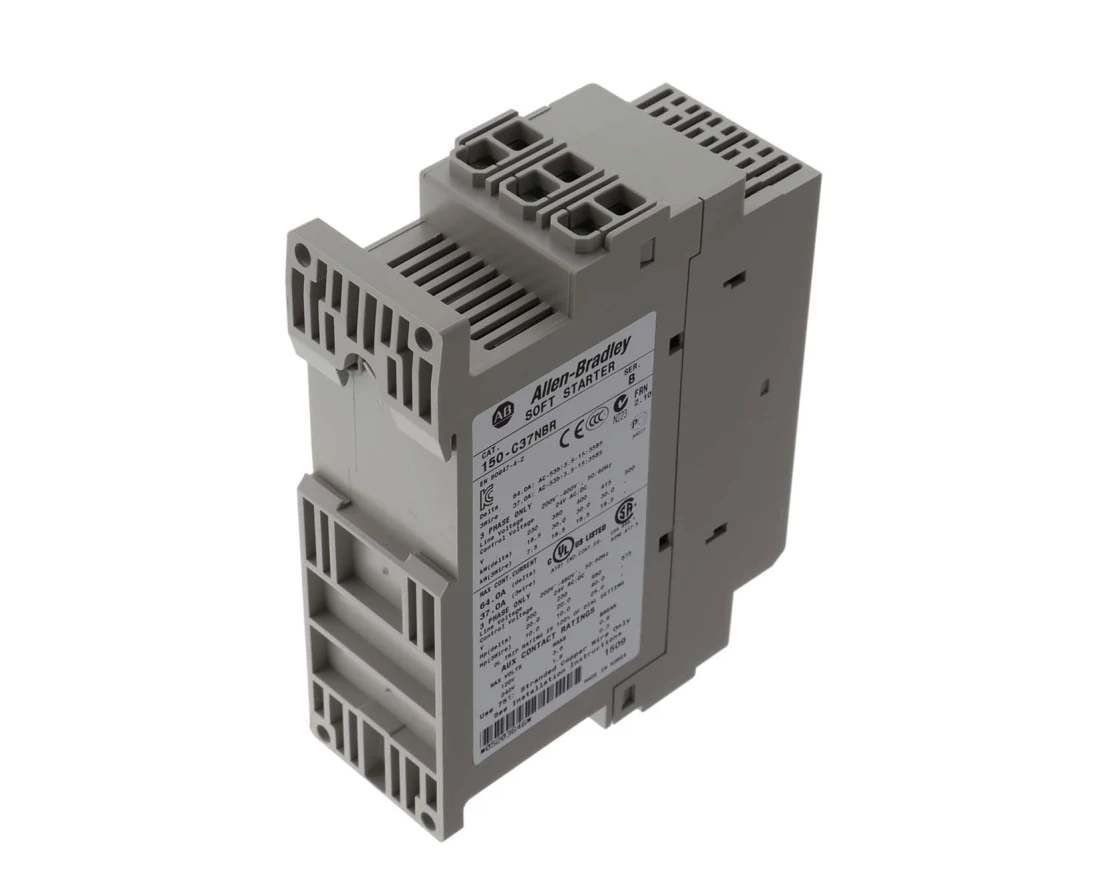

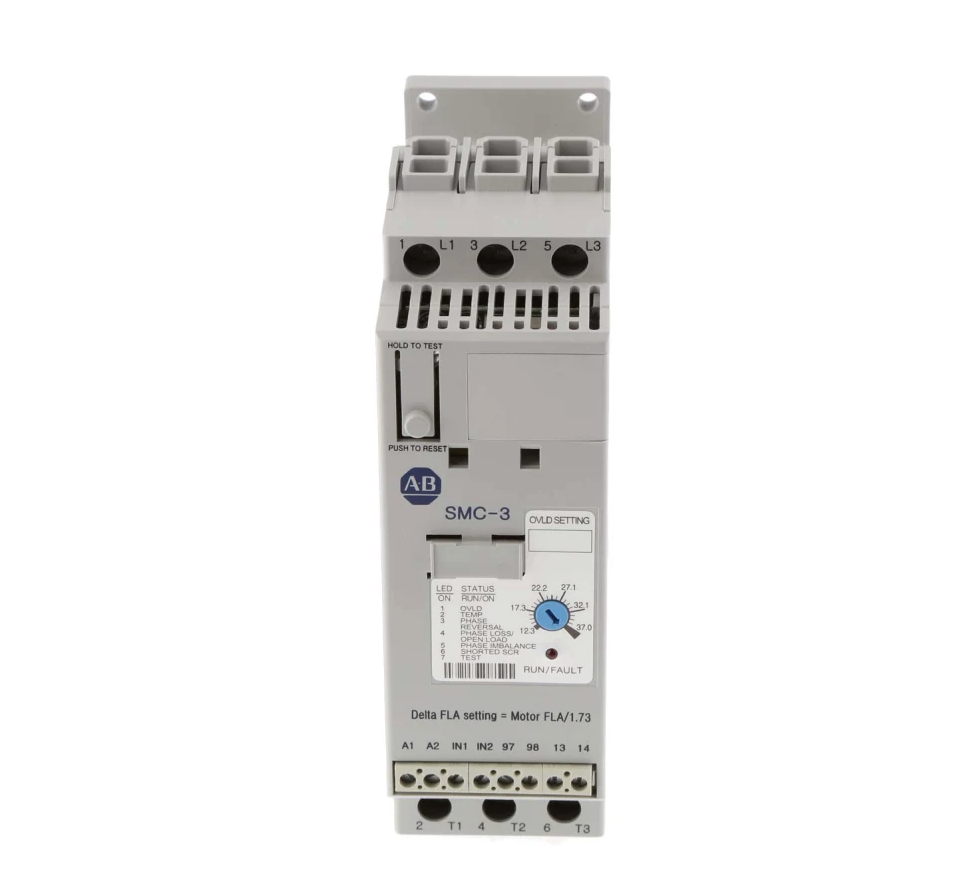

150-C37NBR | Allen-Bradley | Smart Motor Controller
- Regular price
- $674.00
- Sale price
- $674.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 150-C37NBR
Description
The Allen-Bradley 150-C37NBR SMC-3 Smart Motor Controller is a solid-state controller designed for motor control applications. It features a current rating of 37A and is compatible with motors ranging from 10 to 25HP at 460V AC. The controller is of an open type and operates with an input voltage range of 200-460V AC, supporting 3-phase 50/60 Hz power systems. It utilizes a 24V AC/DC control voltage for operation and control purposes.
Technical Specifications
|
With display |
No |
|
Voltage type for actuating |
AC/DC |
|
Rated operating voltage Ue |
200 V |
|
Rated control supply voltage at AC 50 Hz |
24 V |
|
Rated control supply voltage at AC 60 Hz |
24 V |
|
Overload current |
12.3 A |
|
Controller type |
SMC-3 |
|
DV/DT protection |
1000V/µs for power circuit |
|
Repetitive peak voltage |
1400V per UL/CSA/NEMA for power circuit |
|
Operating frequency |
50/60 Hz per UL/CSA/NEMA for power circuit |
|
Line connected motor power, max |
7.5 kW @ 230V AC, 50 Hz, 3-phase |
|
Delta connected motor power, max |
7.5...30 kW @ 380/400/415V AC, 50 Hz, 3-phase |
|
Overvoltage category |
III per IEC for side mount auxiliary contacts |
|
Rated impulse voltage |
6 kV for power circuit |
|
Dielectric withstand |
2500V AC per IEC for power circuit |
|
Line connected motor current |
12.3...37 A @ 380/400/415/460V AC, 3-phase |
|
Delta connected motor current |
21…64 A @ 380/400/415/460V AC, 3-phase |
|
Insulation voltage |
Rated 600V AC per UL/CSA/NEMA for power circuit |
|
Rated operational voltage |
250V AC/30V DC per UL/CSA/NEMA for Side mount auxiliary contacts |
|
Rated control power during start with fan |
215 mA @ 120V AC/180 mA @ 240V AC, 800 mA @ 24V DC/660 mA @ 24V AC |
|
Input OFF-state current |
<10 mA, <12 mA @ input OFF-state voltage (IN1, IN2) for control circuit |
|
Short-circuit protection device list |
Non-time delay Thermal magnetic circuit breaker High capacity time delay class CC/J/L |
|
Number of contacts |
TB-97, -98 (OVLD/Fault): 1 for auxiliary contacts |
|
High capacity available fault current, max |
70 kA @ 600V, maximum current 60 A time delay Class J or Class L fuse for line connected motors |
|
Type of current |
TB-97, -98 (OVLD/Fault): AC/DC for auxiliary contacts |
|
Conventional thermal current (Ith) |
TB-97, -98 (OVLD/Fault): 1 A for auxiliary contacts |
|
Type of control circuit |
TB-97, -98 (OVLD/Fault): Electromagnetic relay for auxiliary contacts |
|
Type of contacts |
TB-97, -98 (OVLD/Fault): Normally Open (N.O.) for auxiliary contacts |
|
Utilization category |
TB-23, -24 (normal/up-to-speed), TB-33, -34 (normal/up-to-speed): C300/R150 per UL/CSA/NEMA for Side mount auxiliary contacts |
|
Rated operational current, max |
TB-97, -98 (OVLD/Fault): 0.6 A @ 120V AC and 0.3 A @ 240V AC for auxiliary contacts |
|
Standard controller feature |
Soft stop |
|
Standard available fault current, max |
10 kA @ maximum standard fuse 250 A for delta device operational current rating |
|
Rated control supply voltage at DC |
24 V |
|
Integrated motor overload protection |
Yes |
|
Short circuit protection device performance |
Type 1 |
|
Selectable overload trip class |
Trip Class 10, 15, or 20 |
|
Selectable start times |
2, 5, 10, 15, 20, 25, or 30 s |
|
Input OFF-state voltage (IN1, IN2), max |
40V AC, 17V DC/12V AC for control circuit |
|
Selectable current limit |
150%, 250%, 350%, and 450% of full load current |
|
Input ON-state voltage, during start (IN1, IN2) |
85V AC, 19.2V DC/19.2V AC minimum for control circuit |
|
Rated control power during start without fan |
205 mA @ 120V AC/145 mA @ 240V AC, 705 mA @ 24V DC/580 mA @ 24V AC |
|
Input ON-state current (IN1, IN2) |
9.8 mA @ 120V AC/19.6 mA @ 240V AC for control circuit, 7.3 mA @ 24V AC/DC for control circuit |
|
Degree of protection (IP) |
IP2X |
|
Weight |
0.86 kg |
|
Shock |
Operational: 15 G |
|
Width |
44.8 mm (1.76 inch) |
|
Depth |
110 mm (4.33 inch) |
|
Height |
139.7 mm (5.5 inch) |
|
Cable size |
2.5...25 mm² (14...4 AWG) for line power terminals |
|
Vibration |
Operational: 1.0 G peak, 0.15 mm (0.006 inch) displacement |
|
Make |
TB-97, -98 (OVLD/Fault): 432VA for auxiliary contacts |
|
Break |
TB-97, -98 (OVLD/Fault): 72VA for auxiliary contacts |
|
Tightening torque |
2.3...3.4 Nm (30 lb.inch) for line power terminals, 4.0 Nm (35 lb.inch) if 25 mm² (4 AWG) wire in top terminal for line power terminal |
|
Internal bypass |
Yes |
|
Function |
Single direction |
|
Selectable kick start - 450% FLA |
0, 0.5, 1.0, or 1.5 s |
|
Selectable initial torque |
15%, 25%, 35%, and 65% of locked rotor torque |
|
Selectable soft stop |
Off, 100%, 200%, or 300% of the start time setting when wired |
|
Steady state heat dissipation |
24 W |
|
Storage and transportation temperature |
-25 °C |
|
Rated surrounding temperature range without derating |
-5 °C |
|
Humidity |
5...95% noncondensing |
|
Operating temperature |
Open: -5 to 50 ° |
Information About 150-C37NBR
The Allen-Bradley 150-C37NBR SMC-3 Smart Motor Controller is a solid-state motor controller designed for industrial applications. With a current rating of 37A, it operates within a voltage range of 200-460VAC, supporting 3-phase 50/60 Hz input. The controller is specifically tailored for motors rated between 10-25HP at 460V AC. It features an open-type configuration and utilizes a 24V AC/DC control voltage for operation.
As part of the Bulletin 150 SMC-3 series, this controller offers advanced motor control capabilities in a compact and reliable package. It integrates solid-state technology for efficient and precise motor control, ensuring optimal performance and longevity of connected machinery.
The controller's design facilitates seamless integration into industrial environments, providing flexibility and ease of installation. Its compatibility with a wide range of motors and voltage inputs makes it suitable for various industrial applications, including manufacturing, processing, and automation.
Equipped with state-of-the-art features, the Allen-Bradley 150-C37NBR SMC-3 Smart Motor Controller enhances operational efficiency and safety. It offers reliable motor protection mechanisms and precise control over motor operations, contributing to improved productivity and reduced downtime in industrial settings.
The controller's solid-state construction ensures durability and reliability in demanding operating conditions. Its design complies with industry standards and regulations, making it suitable for use in diverse industrial environments.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
