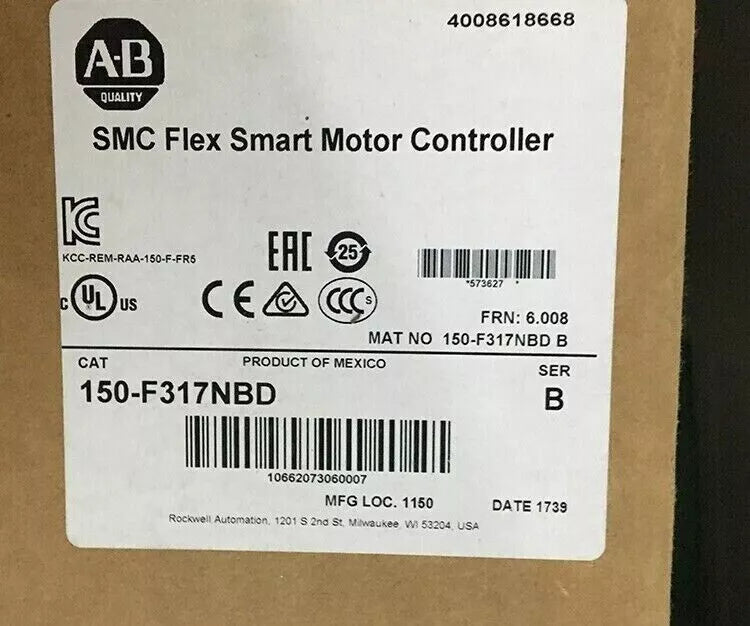

Part #: 150-F317NBD Manufactured by: Allen-Bradley

150-F317NBD | Allen-Bradley CONTROLLER,MOTOR 480V MAX

Regular price
$5,109.00
Sale price
$5,109.00
Regular price
Never Used Surplus
31 in Stock
Product Overview
Allen-Bradley 150-F317NBD Solid State Controller with open enclosure, 317 A, 250 Hp at 460 Volts AC Controller Rating, and...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 150-F317NBD
IQElectro International provides a 2-year warranty on every product we offer. Our complimentary 2-year warranty ensures that every IQElectro purchase is a trustworthy and reliable investment in the future of your company.
IQElectro is NOT an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
150-F317NBD | Allen-Bradley CONTROLLER,MOTOR 480V MAX
    150-F317NBD | Allen-Bradley CONTROLLER,MOTOR 480V MAX
150-F317NBD | Allen-Bradley CONTROLLER,MOTOR 480V MAX
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3-Day Free Shipping
"IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 150-F317NBD

Description / Specifications

Description

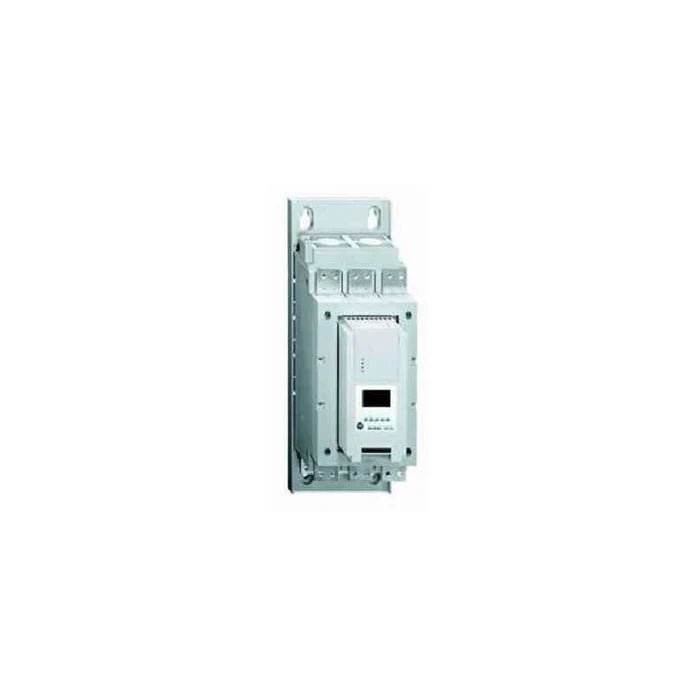

The Allen-Bradley 150-F317NBD is a SMC Flex Smart Motor Controller. This motor controller has a line Voltage of 200-460VAC, 3-Phase, 50 and 60 Hz and control Voltage of 100-240V AC (5-480 A units). It delivers maximum continuous output current of 317 Amperes and output power of 250 HP at 460VAC rated voltage with an open type enclosure.



Technical Specifications



Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number 150-F317NBD
Protection and Diagnostics Power loss, line fault, voltage unbalance, excessive starts/hour, phase reversal, undervoltage, overvoltage, controller temp, stall, jam, open gate, overload, underload, communication fault.
Metering Amps, volts, kW, kWh, MW, MWH, elapsed time, power factor, motor thermal capacity usage
Auxiliary Contacts Four fully programmable contacts as normal/up-to- speed/fault/alarm/network (N.O./N.C.), or external bypass (N.O. only)
Communications One DPI provided for connection to optional human interface and one DPI provided for connection to communication
Maximum output Power 250 HP
Maximum output Current 317 A
Line Voltage 200…460V AC, 3-Phase, 50 and 60 Hz
Operating Modes Soft Start, Full Voltage Start, Smart Motor Braking, Current Limit Start, Dual Ramp Start, Accu-Stop, Selectable Kickstart, Pump Start, Slow Speed with Braking, Coast-to-rest, Preset Slow Speed, Linear Speed Acceleration (Tachometer required), Soft Stop and Pump Stop
Product Family SMC Flex Smart Motor Controller
Control Voltage 100…240V AC (5…480 A units)
Product Line SMC-Flex
Module Type Motor Controller
Enclosure Type Open
Controller Rating 317 A, 250 Hp at 460 Volts AC
Input Line Voltage 200 to 460 Volts AC, 3-phase, 50 and 60 Hz
Rated Voltage 200 to 460 Volts AC
Dimensions 23.62 x 11.42 x 10.88 inches
Display Integral LCD Display





Information About 150-F317NBD

The Allen-Bradley 150-F317NBD is a SMC Flex Smart Motor controller. This controller is a solid-state device, typically used in industrial applications. This device is more commonly referred to as a Soft-Starter by most plant personnel. It is paired to a 3-Phase motor to implement protective start-up and shutdown features as well as lower energy consumption.

Motor protection and energy consumption is implemented by the control methods supported by the 150-F317NBD such as Soft Start, Full Voltage Start, Smart Motor Braking, Current Limit Start, Dual Ramp Start, Accu-Stop, Selectable Kickstart, Pump Start, Slow Speed with Braking, Coast-to-rest, Preset Slow Speed, Linear Speed Acceleration (Tachometer required), Soft Stop and Pump Stop. This controller is ideally used in compressor, chillers, pumps, conveyors and crushers.

The 150-F317NBD comes with an open type enclosure. It has a line Voltage requirement of 200-460VAC, 3-Phase, 50 and 60 Hz and control Voltage of 100-240V AC (5-480 A units). It delivers maximum continuous output current of 317 Amperes and output power of 250 HP at 460VAC rated voltage with an open type enclosure. This controller also comes with an integrated backlit LCD display which aids in programming and monitoring of the controller operation.

The 150-F317NBD also comes with integrated input and output channels such as Four fully programmable contacts which can be assigned for normal/up-to-speed/fault/alarm/network (N.O./N.C.) indication or external bypass (N.O. only) status. This motor controller is also capable of displaying current, volts, kW, kWh, MW, MWH, elapsed time, power factor, and motor thermal capacity usage.

The Allen-Bradley 150-F317NBD smart motor controller shows great diversity when it comes to motor start modes. The most commonly used is the soft start method, in which the user sets the motor to an initial torque setting (user-adjustable in a 0 to 90% range of fixed rotor torque), then increases output voltage gradually during the acceleration ramp time (0 to 30 seconds adjustable). This module’s kickstart option can also be applied with soft start. There is also a current limit (limiting maximum starting current) option, a dual ramp start option, a full voltage start (in 0.25 seconds) option, a soft stop option, a preset slow speed option, and a linear speed mode option. This SMC is equipped with an integral LCD display and programmable keyboard, for fast and user-friendly programming and configuration. An optional Bulletin 20-HMI LCD (Human-Module Interface) is offered as an alternative for programming purposes. This unit’s parameters are reasonably structured and can be viewed or edited over this module. The 150-F317NBD has the following dimensions: 600.00 x 289.97 x 276.50 millimeters (23.62 x 11.42 x 10.88 inches). The weight of the 150-F317NBD is approximately 45.8 kilograms (101 pounds) and its temperature rating lies between -5 and 50 degrees Celsius.


Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms and Conditions
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The Allen-Bradley 150-F317NBD is a SMC Flex Smart Motor Controller. This motor controller has a line Voltage of 200-460VAC, 3-Phase, 50 and 60 Hz and control Voltage of 100-240V AC (5-480 A units). It delivers maximum continuous output current of 317 Amperes and output power of 250 HP at 460VAC rated voltage with an open type enclosure.



Technical Specifications



Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number 150-F317NBD
Protection and Diagnostics Power loss, line fault, voltage unbalance, excessive starts/hour, phase reversal, undervoltage, overvoltage, controller temp, stall, jam, open gate, overload, underload, communication fault.
Metering Amps, volts, kW, kWh, MW, MWH, elapsed time, power factor, motor thermal capacity usage
Auxiliary Contacts Four fully programmable contacts as normal/up-to- speed/fault/alarm/network (N.O./N.C.), or external bypass (N.O. only)
Communications One DPI provided for connection to optional human interface and one DPI provided for connection to communication
Maximum output Power 250 HP
Maximum output Current 317 A
Line Voltage 200…460V AC, 3-Phase, 50 and 60 Hz
Operating Modes Soft Start, Full Voltage Start, Smart Motor Braking, Current Limit Start, Dual Ramp Start, Accu-Stop, Selectable Kickstart, Pump Start, Slow Speed with Braking, Coast-to-rest, Preset Slow Speed, Linear Speed Acceleration (Tachometer required), Soft Stop and Pump Stop
Product Family SMC Flex Smart Motor Controller
Control Voltage 100…240V AC (5…480 A units)
Product Line SMC-Flex
Module Type Motor Controller
Enclosure Type Open
Controller Rating 317 A, 250 Hp at 460 Volts AC
Input Line Voltage 200 to 460 Volts AC, 3-phase, 50 and 60 Hz
Rated Voltage 200 to 460 Volts AC
Dimensions 23.62 x 11.42 x 10.88 inches
Display Integral LCD Display





Information About 150-F317NBD

The Allen-Bradley 150-F317NBD is a SMC Flex Smart Motor controller. This controller is a solid-state device, typically used in industrial applications. This device is more commonly referred to as a Soft-Starter by most plant personnel. It is paired to a 3-Phase motor to implement protective start-up and shutdown features as well as lower energy consumption.

Motor protection and energy consumption is implemented by the control methods supported by the 150-F317NBD such as Soft Start, Full Voltage Start, Smart Motor Braking, Current Limit Start, Dual Ramp Start, Accu-Stop, Selectable Kickstart, Pump Start, Slow Speed with Braking, Coast-to-rest, Preset Slow Speed, Linear Speed Acceleration (Tachometer required), Soft Stop and Pump Stop. This controller is ideally used in compressor, chillers, pumps, conveyors and crushers.

The 150-F317NBD comes with an open type enclosure. It has a line Voltage requirement of 200-460VAC, 3-Phase, 50 and 60 Hz and control Voltage of 100-240V AC (5-480 A units). It delivers maximum continuous output current of 317 Amperes and output power of 250 HP at 460VAC rated voltage with an open type enclosure. This controller also comes with an integrated backlit LCD display which aids in programming and monitoring of the controller operation.

The 150-F317NBD also comes with integrated input and output channels such as Four fully programmable contacts which can be assigned for normal/up-to-speed/fault/alarm/network (N.O./N.C.) indication or external bypass (N.O. only) status. This motor controller is also capable of displaying current, volts, kW, kWh, MW, MWH, elapsed time, power factor, and motor thermal capacity usage.

The Allen-Bradley 150-F317NBD smart motor controller shows great diversity when it comes to motor start modes. The most commonly used is the soft start method, in which the user sets the motor to an initial torque setting (user-adjustable in a 0 to 90% range of fixed rotor torque), then increases output voltage gradually during the acceleration ramp time (0 to 30 seconds adjustable). This module’s kickstart option can also be applied with soft start. There is also a current limit (limiting maximum starting current) option, a dual ramp start option, a full voltage start (in 0.25 seconds) option, a soft stop option, a preset slow speed option, and a linear speed mode option. This SMC is equipped with an integral LCD display and programmable keyboard, for fast and user-friendly programming and configuration. An optional Bulletin 20-HMI LCD (Human-Module Interface) is offered as an alternative for programming purposes. This unit’s parameters are reasonably structured and can be viewed or edited over this module. The 150-F317NBD has the following dimensions: 600.00 x 289.97 x 276.50 millimeters (23.62 x 11.42 x 10.88 inches). The weight of the 150-F317NBD is approximately 45.8 kilograms (101 pounds) and its temperature rating lies between -5 and 50 degrees Celsius.


Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.
