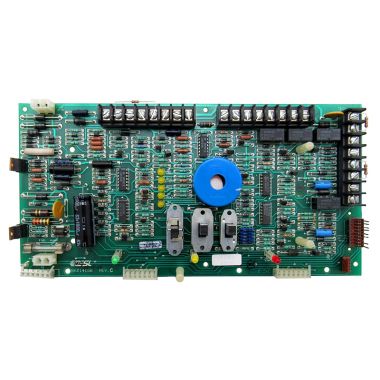

1500-BMB | Edwards EST Basic Master Board for 1500 Series Fire Alarm Control Panels
- Regular price
- $1,312.00
- Sale price
- $1,312.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1500-BMB
Description
The Edwards EST 1500-BMB is the Basic Master Board for the ESL 1500 Series conventional fire alarm control panels. It provides the primary signaling and supervisory functions required for a single-zone Model 1501 system, with support for expansion through optional modules.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards EST |
| Category | Fire Alarm Systems |
| Part Number | 1500-BMB |
| Subcategory | Control Boards |
| Type | Basic Master Board |
| System Compatibility | ESL 1500 Series Fire Alarm Control Panels |
| Supported Models | Model 1501 (1 zone), expandable with 1503 (3 zones) or 1505 (5 zones) |
| Initiating Circuits | Supports Class A or Class B wiring, 2-wire or 4-wire devices |
| Alarm Circuits | Two supervised alarm indicating circuits |
| Inputs/Outputs | Supervises conventional initiating and notification loops |
| Expandability | Optional modules available for customized configurations |
| Power Limiting | All initiating and indicating circuits are power-limited |
| Application | Conventional fire alarm system base control |
| Dimensions | 14 × 12 × 3 in |
| Weight | 2 lbs |
Information About 1500-BMB
The Edwards EST 1500-BMB is an essential component of the ESL 1500 Series fire alarm systems, designed to serve as the main control board for single-zone configurations such as the Model 1501. It manages all core supervisory and alarm signaling functions while supporting Class A and Class B wiring methods for initiating and indicating circuits. With two built-in supervised alarm outputs and compatibility with two-wire and four-wire devices, the 1500-BMB ensures reliable monitoring and notification. System expansion is supported through optional modules, making it adaptable for three-zone (1503) and five-zone (1505) models.
Key Features:
- Primary control board: Provides all core signaling and supervisory functions for ESL 1500 Series fire alarm panels.
- Single-zone operation: Serves as the base board for the Model 1501 one-zone configuration.
- Expandable design: Compatible with additional modules to expand system capacity to three or five zones.
- Dual alarm outputs: Includes two supervised alarm indicating circuits for horns, strobes, and other notification appliances.
- Versatile wiring support: Works with both Class A and Class B loops, as well as two-wire or four-wire devices.
- Supervised circuits: Monitors both initiating and indicating circuits to ensure system integrity and fault detection.
- Power-limited circuits: Enhances safety and code compliance across all zone inputs and outputs.
- Compact size: Measures 14 × 12 × 3 inches and weighs just 2 lbs for easy integration into system enclosures.
- Reliable operation: Forms the backbone of the 1500 Series, ensuring continuous protection in conventional fire alarm setups.
- Customizable system options: Supports multiple add-on modules for tailored fire alarm configurations.
The 1500-BMB delivers the reliability and precision required for foundational operation of Edwards EST 1500 Series conventional fire alarm systems.
