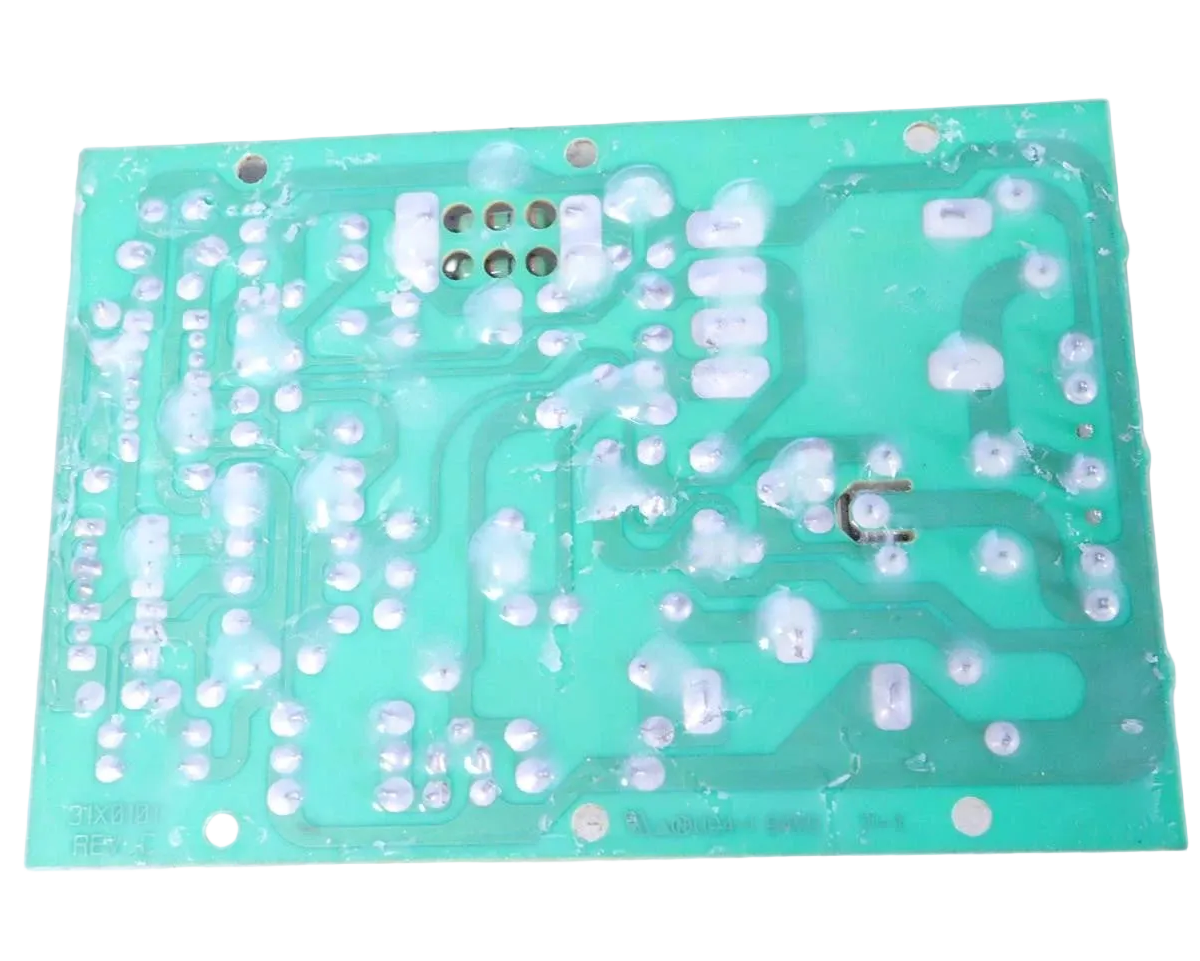

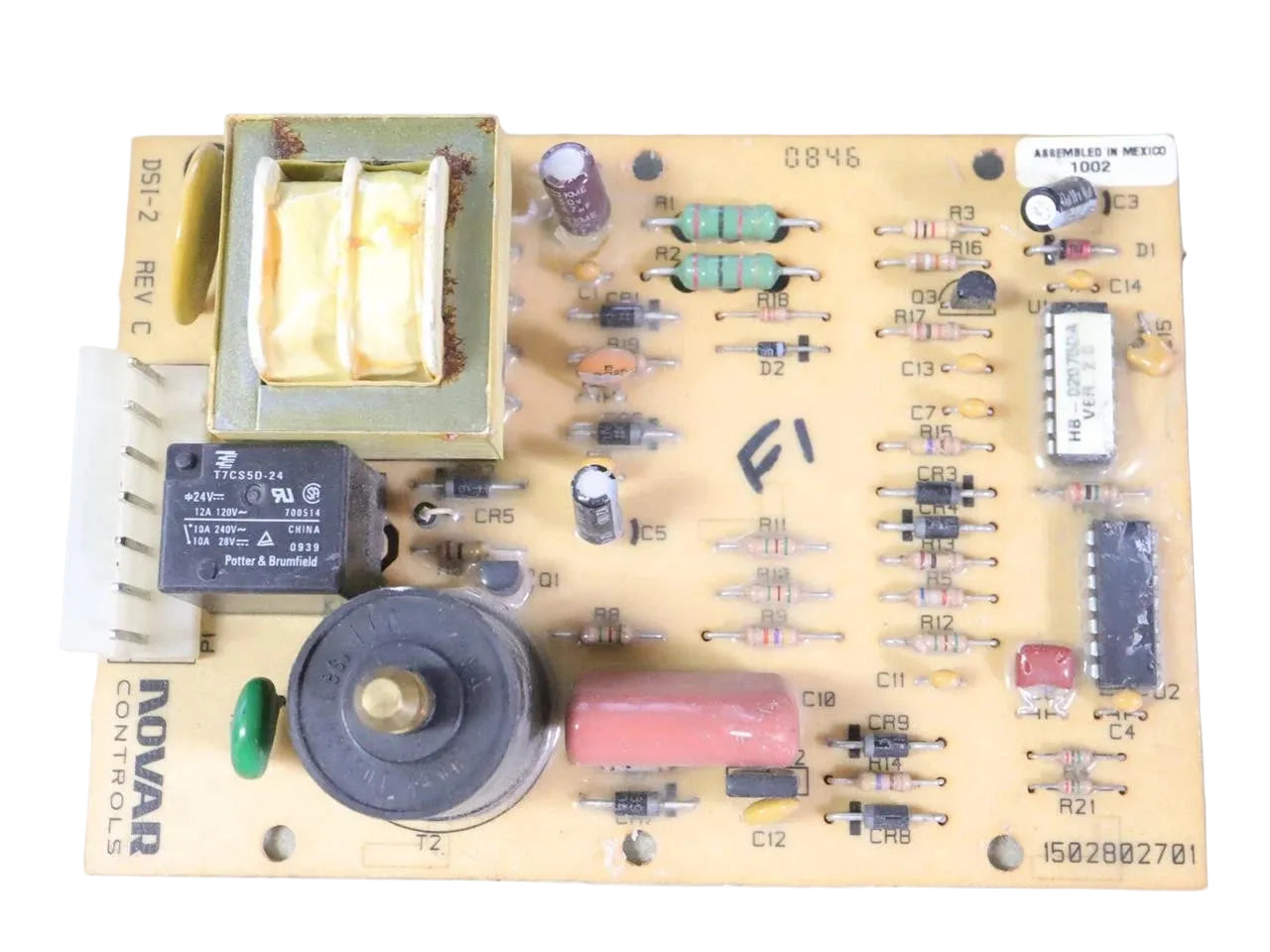

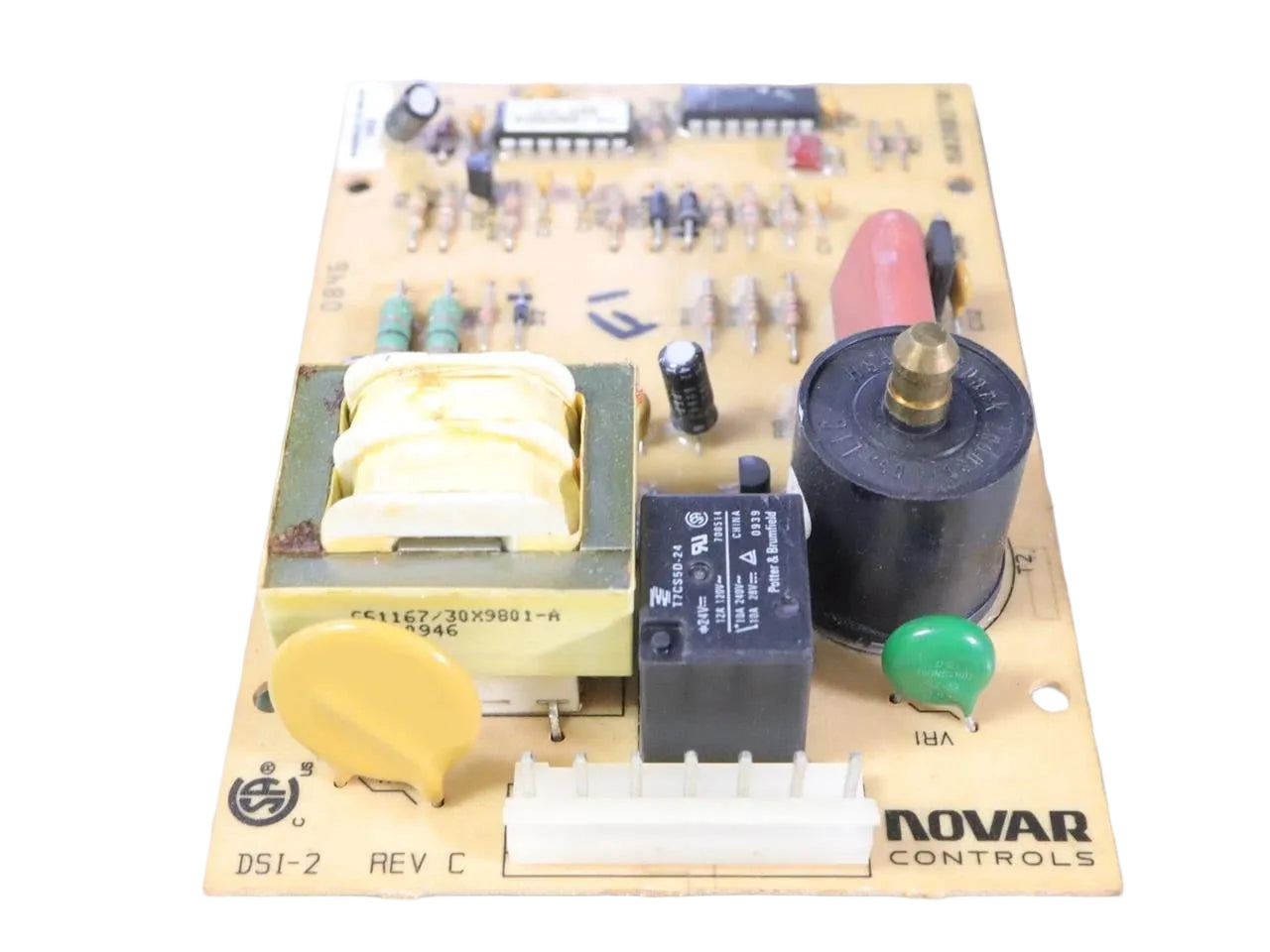

1502802701 | Novar Controls DSI-2 Rev. C Hayward Pool Heater Control Board
- Regular price
- $382.00
- Sale price
- $382.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 1502802701
Description
The Novar Controls 1502802701 DSI-2 Rev. C is a control board designed for electronic ignition and operational control of Hayward pool heater systems. It manages ignition sequencing, flame sensing, and safety monitoring to ensure reliable heater operation. The 1502802701 control board is engineered for stable performance in residential and commercial pool heating applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Novar Controls |
| Category | Pool & Spa Control Boards |
| Part Number | 1502802701 |
| Subcategory | Heater Control Boards |
| Board Series | DSI-2 |
| Revision | Rev. C |
| Control Function | Direct Spark Ignition and Heater Control |
| Application | Gas Pool Heaters |
| Compatible Equipment | Hayward Pool Heaters |
| Power Requirement | Low-Voltage Control Circuit |
| Mounting Type | Internal Heater Mount |
| Operating Environment | Pool Heater Control Compartment |
| Construction | Electronic Control Board |
| Duty Cycle | Continuous Operation |
| Weight | Approx. 1 lb (0.45 kg) |
Information About 1502802701
The 1502802701 is part of the Novar Controls DSI-2 series of direct spark ignition control boards used in gas-fired pool heaters. It is designed to integrate with Hayward heater platforms, coordinating ignition timing, gas valve control, and safety interlocks. The board supports dependable heater startup and shutdown while monitoring critical operating conditions. Its design is optimized for installation within pool heater control compartments exposed to demanding environmental conditions.
Key Features:
- Direct Spark Ignition Control: Manages electronic ignition sequencing for gas-fired pool heaters.
- Heater Safety Monitoring: Oversees flame detection and safety shutdown conditions.
- Hayward Heater Compatibility: Designed for use in select Hayward pool heater models.
- Integrated Control Logic: Coordinates ignition, operation, and system protection functions.
- Stable Gas Valve Control: Provides controlled output signals for gas valve operation.
- Revision C Design: Updated board revision for improved reliability and system compatibility.
- Industrial Control Construction: Built for continuous-duty operation in pool heater environments.
- Compact Control Board Format: Fits within standard heater control enclosures.
- Service Replacement Board: Intended for repair or replacement of existing heater controls.
The 1502802701 delivers the reliability and precision required for electronic ignition and pool heater control applications.
